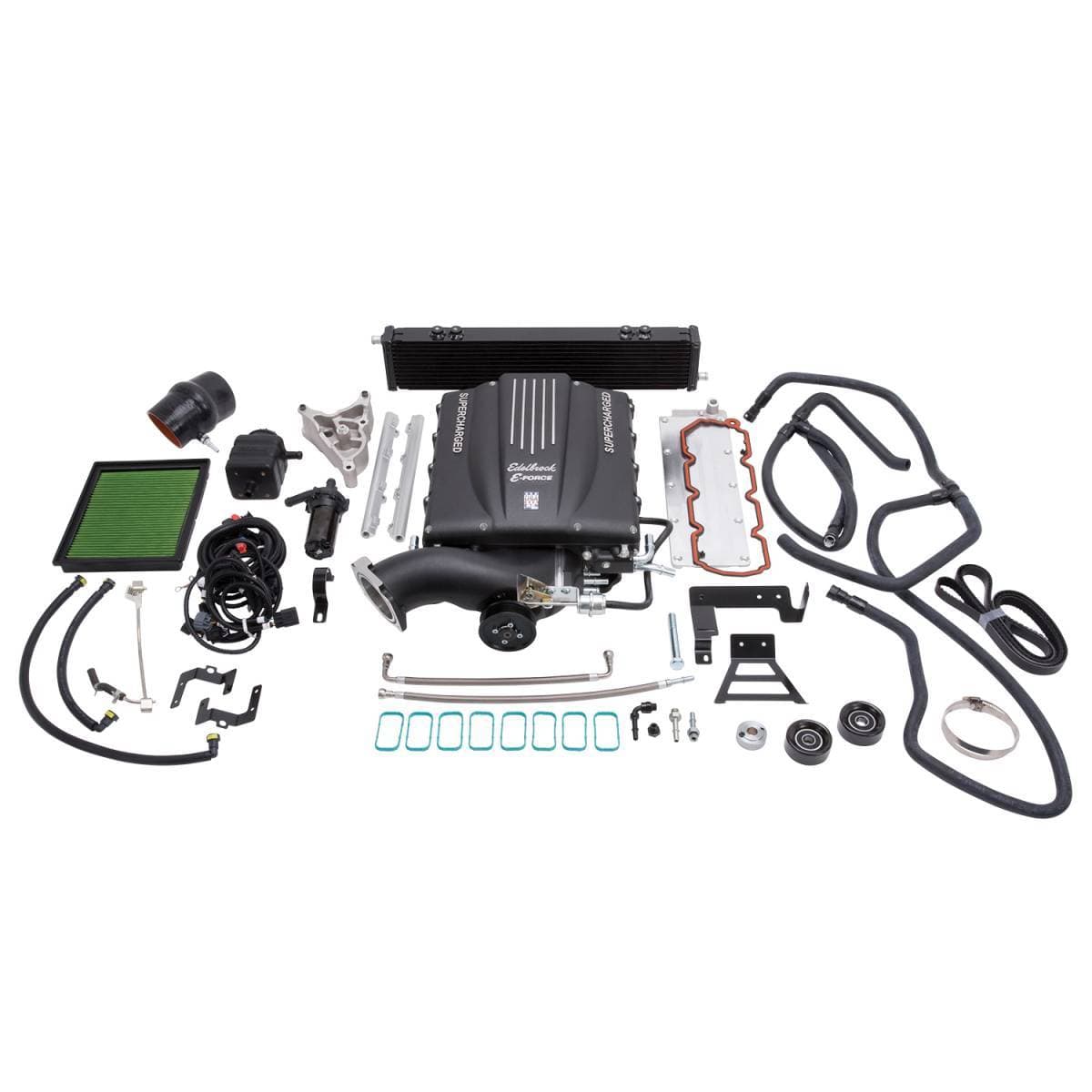

GM 1500 SUV 6.2L 2007-2014 Edelbrock Complete Supercharger Intercooled Kit Without Tune

Edelbrock Air-to-Water Intercooled Supercharger Complete System with an Eaton TVS 2300 twin screw blower which will get you 407 horsepower! This is the tuner kit that will require a custom tune done locally after you install the kit, and does not include a programmer.



Edelbrock supercharger System part #156660 for 2007-2014 GM 1500 SUV increases the performance of your 6.2L Gen IV engine to 407 horsepower and 434 ft-lbs of torque at the rear wheels. The supercharger is finished with a durable, black powder-coating so the system looks as good as it performs. Other Features Include: Integrated bypass valve for minimal decrease in fuel economy. Self-contained oiling system with a 100,000-mile service interval. 3-year/36,000-mile powertrain warranty coverage when applicable. Full color step-by-step instructions for an easy install.

There are many options available for Edelbrock kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

These supercharger kits are the most complete available, including everything needed for installation aside the custom tuning. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self-contained lubricating system. will require a custom tune done locally after you install the kit, and does not include a programmer

The Edelbrock supercharger System part #15670 for 2007-14 GM 1500 SUVs increases the performance of your 6.2L Gen IV engine to 407 horsepower and 434 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 otating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

DETAILS:
Horsepower: 407 hp
Eaton TVS 2300 supercharger head unit
Highly effective air-to-water intercooling
Belt Drive System: 6 rib
Supercharger Pulley Size: 3.75 inch
Fuel Pump Supplied: Not Supplied
Fuel Injectors Supplied: Not Supplied
Computer/Ignition Mods.: Not Supplied
The coolest charge air temperatures and largest power gains available
3-Year/36,000-mile Powertrain Warranty
Easy and quick installation
OEM quality and appearance

Unlike turbocharging, the Eaton TVS 2300 supercharger provides instant throttle response and can generate increased power through the engine’s entire powerband.

TREperformance is an Authorized Priority Dealer of Edelbrock Superchargers.
36 Month warranty Direct from Edelbrock
