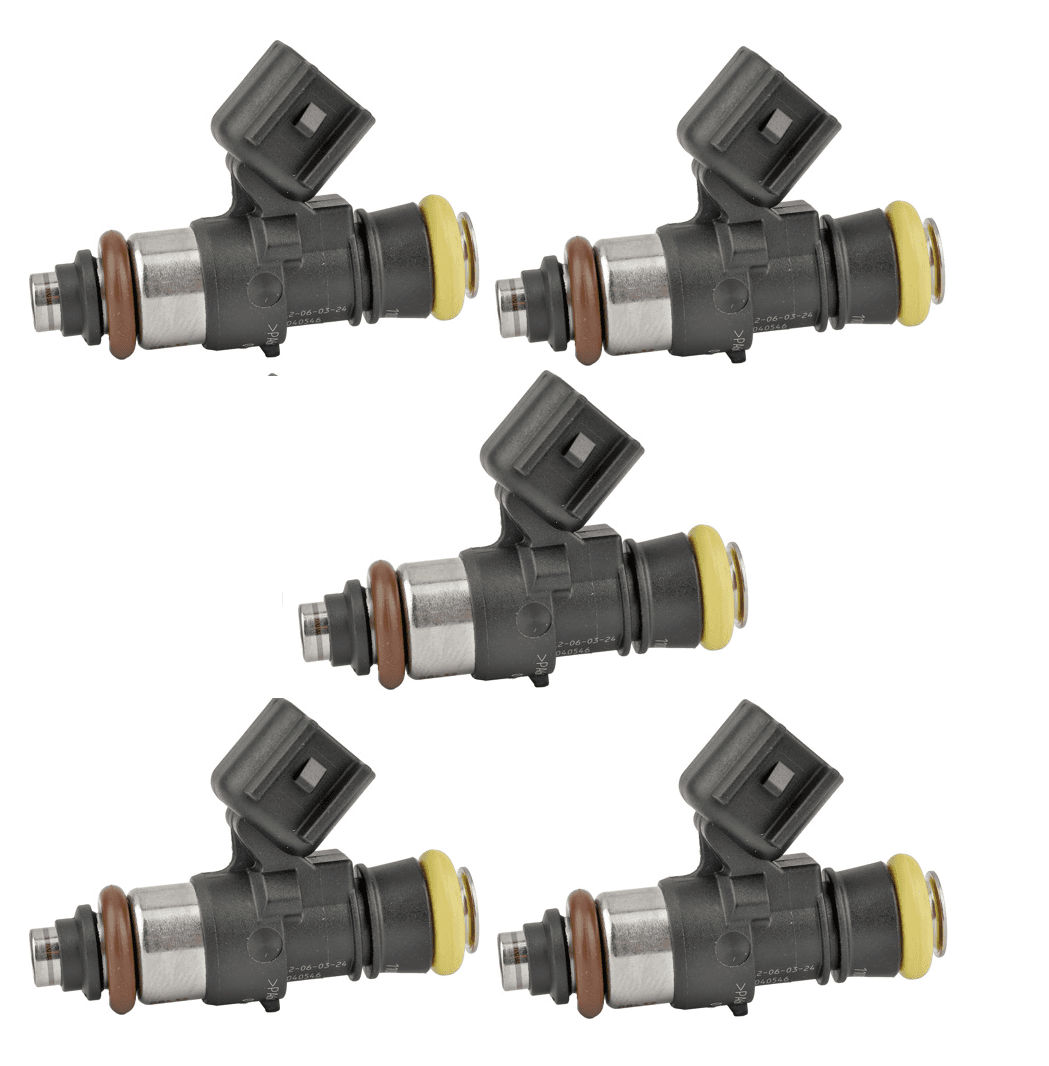

Genuine Bosch 0280158843 2200cc Short EV6 Fuel Injectors - 5

This is for (5) Genuine Bosch 210lb/hr High Resistance, saturated fuel injectors. These are the newer style skinny injectors, with Denso electrical connections.



Flow Rate in CC per minute: 2200cc @ 3 bar, 2550cc @ 4 bar & 2800cc @ 5 bar

Flow Rate in LB per hour: 210 LBS/HR @ 3 bar

Genuine Bosch 2200 cc high impedance fuel injectors. The Bosch fuel injectors represent the next generation of high flow injector technology with fast response times, excellent flow patterns and compact design. These injectors are very well suited to turbocharged and supercharged applications that see high fuel system pressures. Nominal max flow using ASNU 42 test fluid (+23 C / 73 F) is 2200c c@ 3 bar, 2550cc @ 4 bar & 2800cc @ 5 bar. You can use adapters with either 11mm or 14mm top orings to suit your fuel rail (Sold Separately).


Specifications
> Flow Rate - 2200cc/min (210Lb/Hr) @ 3.0Bar
> ORings - 14mm Top / 14mm Bottom
> Electrical Plug - EV6
> Impedance - 8.4 Ohms
> Spray Pattern - V pattern
> Oring Top to Bottom / Center to Center without Height Adapter - 34.0mm

All high performance injectors will require ECU tuning for proper performance.
