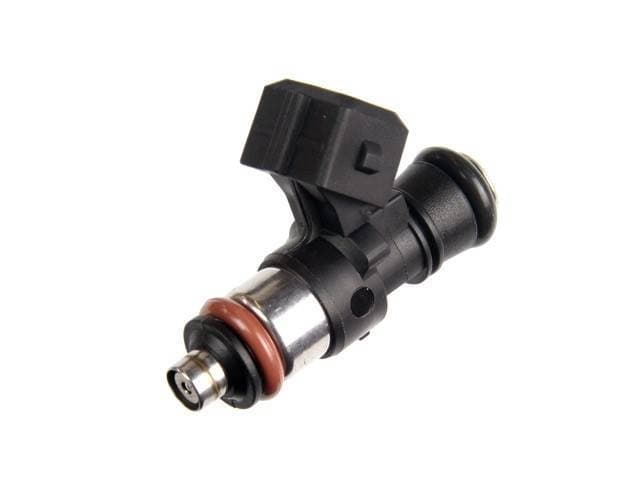

This is for a single (1) Genuine Bosch EV14 157lb/hr High Resistance, saturated fuel injectors. These are the newer style skinny injectors, with EV1/EV14 electrical connections.
Flow Rate in CC per minute: 1450c @ 3 bar, 1650cc @ 4 bar & 1900cc @ 5 bar
Flow Rate in LB per hour: 157 LBS/HR @ 4 bar
Note: This injector has an EV1/EV14 electrical plug, if your looking for EV6/USCAR style electrical plug see PN: Bosch-0280158677-1
Exactly the same injector as Bosch (EV14) 0250158333, 0280158334 and ASNU 90/2000. Nominal max flow using ASNU 42 test fluid (+23 C / 73 F) is 1450cc @ 3 bar, 1650cc @ 4 bar & 1900cc @ 5 bar. You can use adapters with either 11mm or 14mm top orings to suit your fuel rail. Compatible with E85 / RE85.
252 HP Normally Aspirated per Injector (0.53 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Pressure) - estimated
222 HP Turbo (0.6 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Pressure) up to 1 Bar Boost - estimated
205 HP Turbo (0.65 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Presure) up to 2 Bar Boost - estimated
Specifications
> Flow Rate - 1650cc/min (157Lb/Hr) @ 4.0Bar
> ORings - 14mm Top / 14mm Bottom
> Electrical Plug - Bosch EV14 (Square)
> Impedance - 8.4 Ohms
> Spray Pattern - Narrow
> Oring Top to Bottom / Center to Center without Height Adapter - 34.0mm
All high performance injectors will require ECU tuning for proper
performance.
