The Fore Innovations 2018+ Ford F-150 L2 Triple Pump Fuel Pump Returnless Fuel System is now available. This module will fit and work with OEM fuel tank electrical plug. The module consists of a billet top-hat, wiring and pump holder. These components work together to deliver the flow you need and the OEM functionality you want. Our twin regulated fuel system delivers static referenced fuel to the HPFP and MAP referenced fuel to the port injection for beyond 1300 rwhp (recommended to run one pump full time, then activate secondary pumps under load). Supplies High Pressure Fuel Pump (HPFP) and port injection (and small wet nitrous) Includes in-tank supply system that retains OE transfer, fuel level sender, and EVAP functionality, billet fuel rails with mount for OE fuel pressure and temperature sensor, upgraded feed and return lines, high capacity filtration and check valve, flow through t-block direct mounted on HPFP inlet tube, and dual high capacity F2i regulators for providing static fuel pressure to the HPFP and MAP referenced fuel pressure to the port injection.
This product has many options see the blue "choose product options" to configure your system and avoid any delays!
Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.

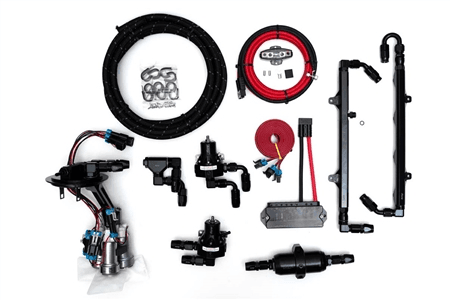

What's included in the base system?

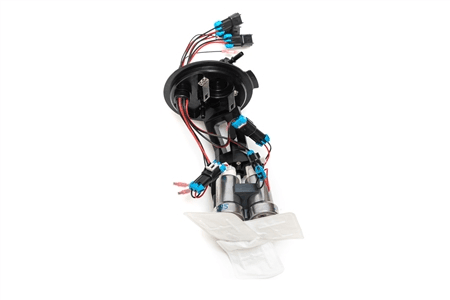

F-150 Triple Pump Module
Dual F2i Fuel Pressure Regulators

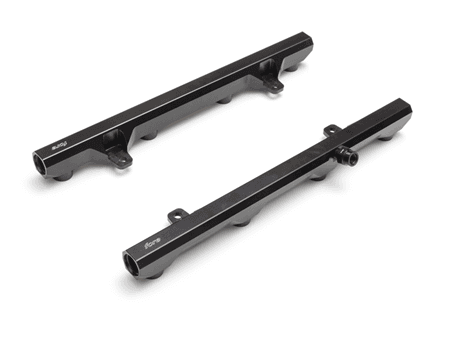

Billet 2018+ Mustang Fuel Rails

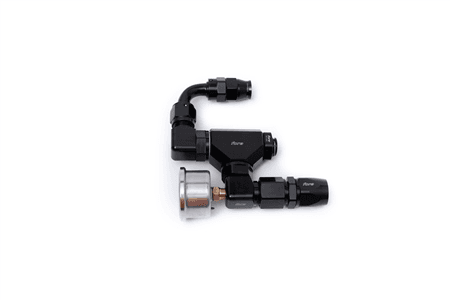

T-block to direct mount on HPFP (High Pressure Fuel Pump)
88mm Cellulose Fuel Filters (upgrades available in the product options)
All fittings, hose, hardware required for typical fuel line plumbing
*Does NOT include fuel pumps they can all be added using the product options.
Fitment:
2018+ Ford F-150
Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.
Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.
