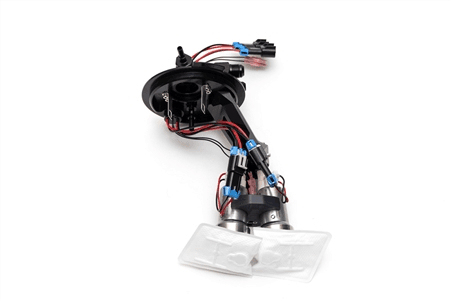

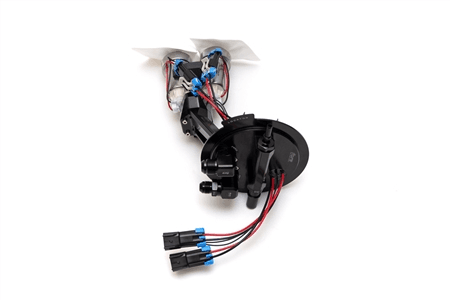

The Fore Innovations 2018+ Ford F-150 L1E Dual Pump Fuel Pump Returnless Fuel System is now available. This module will fit and work with OEM fuel tank electrical plug. The module consists of a billet top-hat, wiring and pump holder. These components work together to deliver the flow you need and the OEM functionality you want. This system can handle up to 800rwhp on e85 and 900rwhp on gas Supplies. Recommended to run one pump full time, then activate secondary pump under load. Supplies High Pressure Fuel Pump (HPFP) and port injection (and small wet nitrous) Includes in-tank supply system that retains OE transfer, fuel level sender, and EVAP functionality, upgraded feed and return lines, high capacity filtration and check valve, flow through t-block direct mounted on HPFP inlet tube, high capacity F2i regulator with provisions for both static and MAP reference. Includes our billet fuel rails for proper port injection supply with E85.
This product has many options see the blue "choose product options" to configure your system and avoid any delays!
Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.

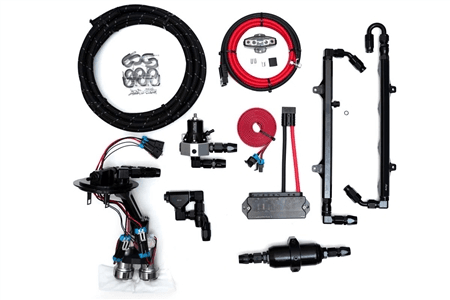

What's included in the base system?
F-150 Mustang Dual Pump Module

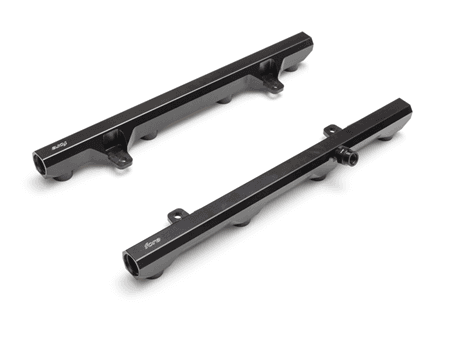

Billet fuel rails
F2i Fuel Pressure Regulator (may be configured boost reference or static)

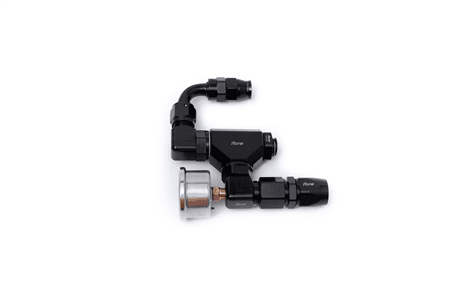

T-block to direct mount on HPFP (High Pressure Fuel Pump)
88mm Cellulose Fuel Filters (upgrades available in the product options)
All fittings, hose, hardware required for typical fuel line plumbing
*Does NOT include fuel pumps they can all be added using the product options.
Fitment:
2018+ Ford F-150
Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.
Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.
