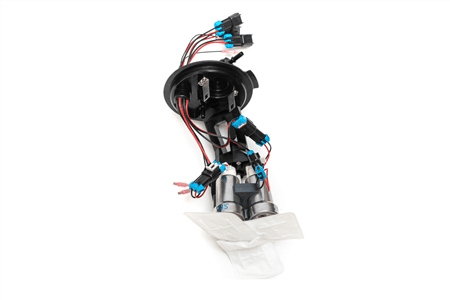

Fore Innovations 2015+ Ford F-150 Triple Pump Drop-In Module - 1300+rwhp Capable

Use in conjunction with a complete return style fuel system for 1300+ rwhp with triple fuel pumps (recommended to run one pump full time, then activate secondary pump under load). Retains OE fuel level sender and EVAP functionality. This component requires the use of external feed and return lines, external filtration (for injectors), external regulation (boost referenced recommended) and an upgraded electrical system. Fuel rails are required in all applications.

Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.

What's included in the base system?

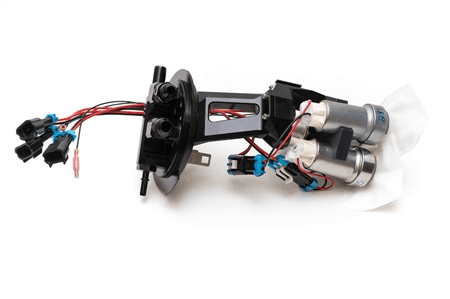

F-150 Triple Pump Module
88mm Cellulose Fuel Filters (upgrades available in the product options)

*Does NOT include fuel pumps they can all be added using the product options.

Fitment:
2015-2017: Supplies port injection and [optional] small wet nitrous.
2018+: Supplies High Pressure Fuel Pump (HPFP), port injection, and [optional] small wet nitrous). Also requires a flow through t-block direct mounted on HPFP inlet tube. Dual regulators are suggested for maximizing output. (must match, recommend our F1i or F2i)

Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.

Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.
