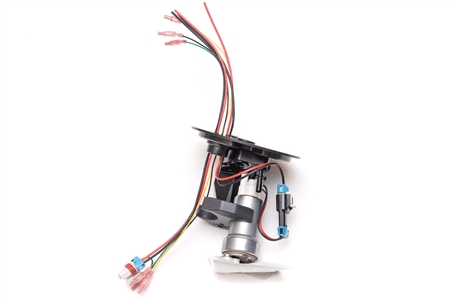

Fore Innovations 2005-2021 Dodge/Chrysler SRT/RT Single Pump LX Fuel Pump Billet Module - 700rwhp (Gas)

The Fore Innovations 2005-2021 Dodge Charger, Challenger, Magnum and Chrysler 300c Single Pump Fuel Pump Billet Module is now available. This module will fit and work with OEM fuel tank electrical plug. The module consists of a billet top-hat, wiring and pump holder. These components work together to deliver the flow you need and the OEM functionality you want. This system can handle up to 700rwhp on gas (less on e85)

This system can be used in both returnless and return style fuel systems for returnless systems. For return style systems you are required to use external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended. For returnless style systems you must select the plug for the return fitting when selecting your systems fittings.

This product has many options see the blue "choose product options" to configure your system and avoid any delays!

Note: This system does NOT include feed fittings, return fittings, fuel pump or fuel pump filter they can all be added using the product options.

What's included in the base system?
Billet Top Hat
Billet Fuel Pump Holder
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness

*Does NOT include fittings, fuel pump or fuel pump filter they can all be added using the product options.

Fitment:
2005-2019 chassis originally equipped with 5.7L
2005-2021 chassis originally equipped with 6.1L or 6.4L

*Will not fit any chassis originally produced as a Hellcat or Demon
*Will not fit 2020-2023 originally equipped with 5.7L
*Will not fit 2022-2023 originally equipped with 6.4L

Level Sender Type:
Type 1 level senders were supplied from 2005-2011 (pump replacement after 2012 will typically have Type 2 level sender)
Type 2 level senders were supplied from on the 5.7 from 2011-2019 and on the 6.1L/6.4L from 2011-2021.

*2011 model years require visual confirmation of Type 1 or Type 2 level sender.

Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.
Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.

*Methanol is not currently supported or recommended with our fuel systems.
