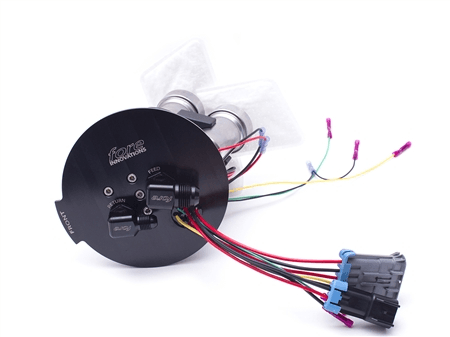

What's included in the base system?

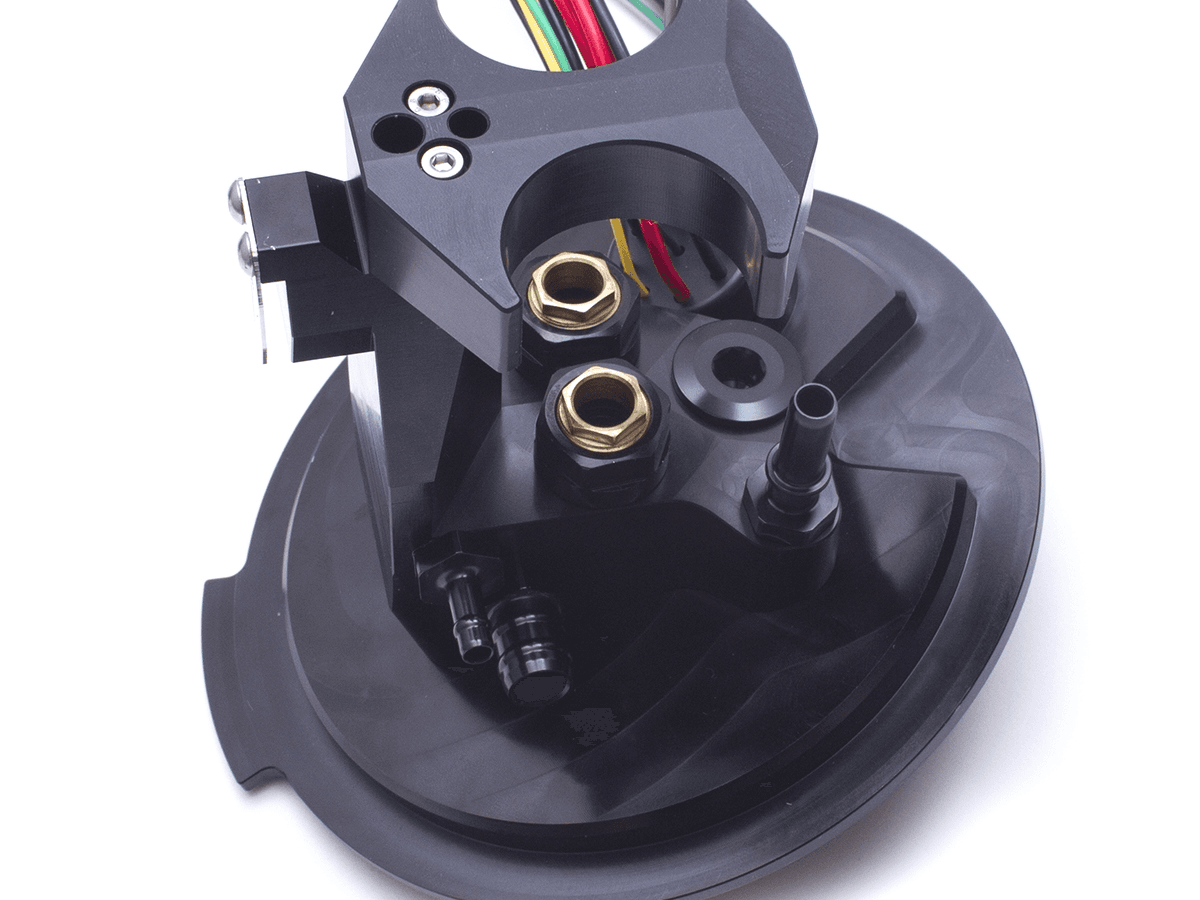

Billet Top Hat
Billet Fuel Pump Holder
OE Feed Outlet Cap
OE Regulator Blockoff Plug
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness
*Does NOT include fittings, second fuel pump or fuel pump filter they can all be added using the product options.
Fitment:
2005-2023 chassis originally equipped with 5.7L
2005-2023 chassis originally equipped with 6.1L or 6.4L
*Will not fit any chassis originally produced as a Hellcat or Demon
Level Sender Type:
Type 1 level senders were supplied from 2005-2011 (pump replacement after 2012 will typically have Type 2 level sender)
Type 2 level senders were supplied from on the 5.7 from 2011-2019 and on the 6.1L/6.4L from 2011-2021.
Type 3 (OE on 2020-2023 with 5.7L, 2022-2023 with 6.4L) Type 3 is a new design with a different design of fuel tank. The pump assembly and function is completely different than Type 1 and Type 2 and shares no parts in common.
*2011 model years require visual confirmation of Type 1 or Type 2 level sender.
Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.
Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.
