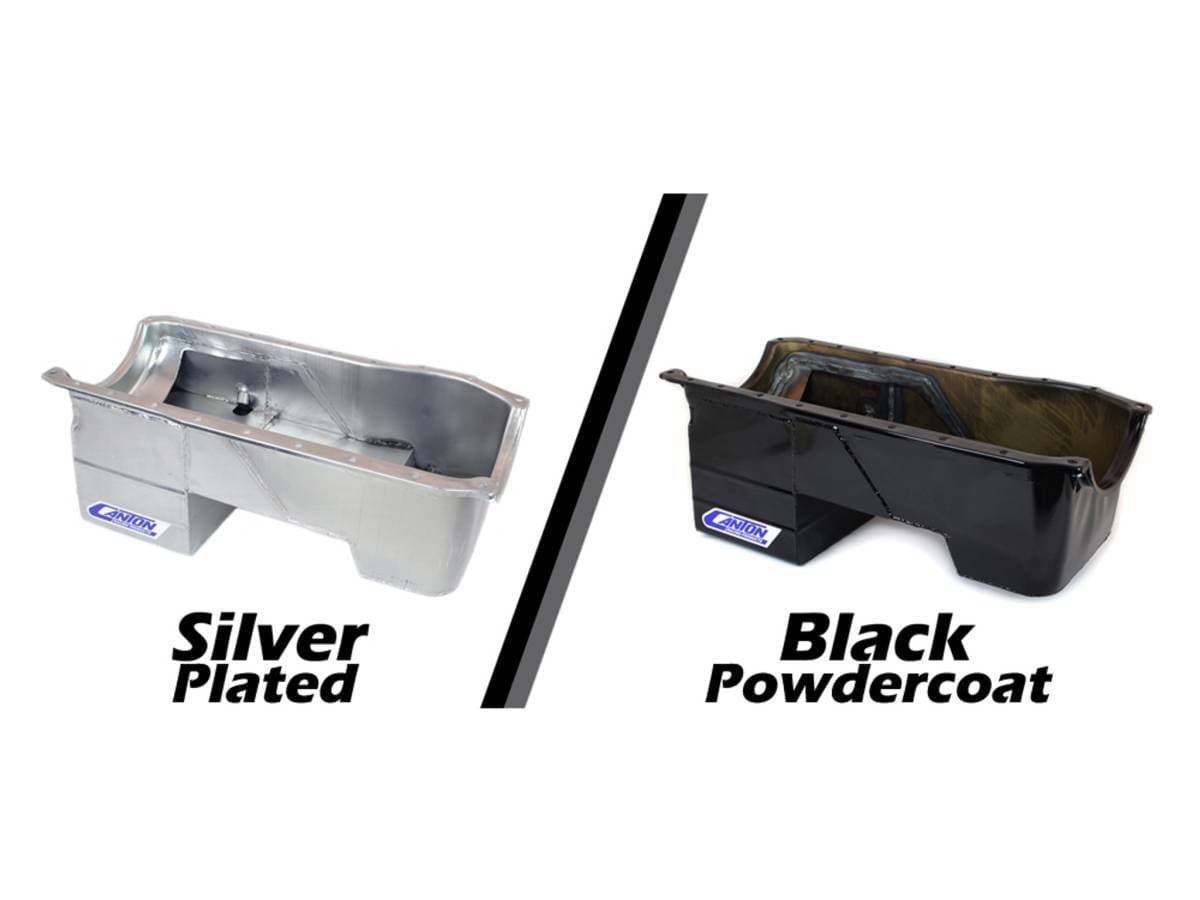

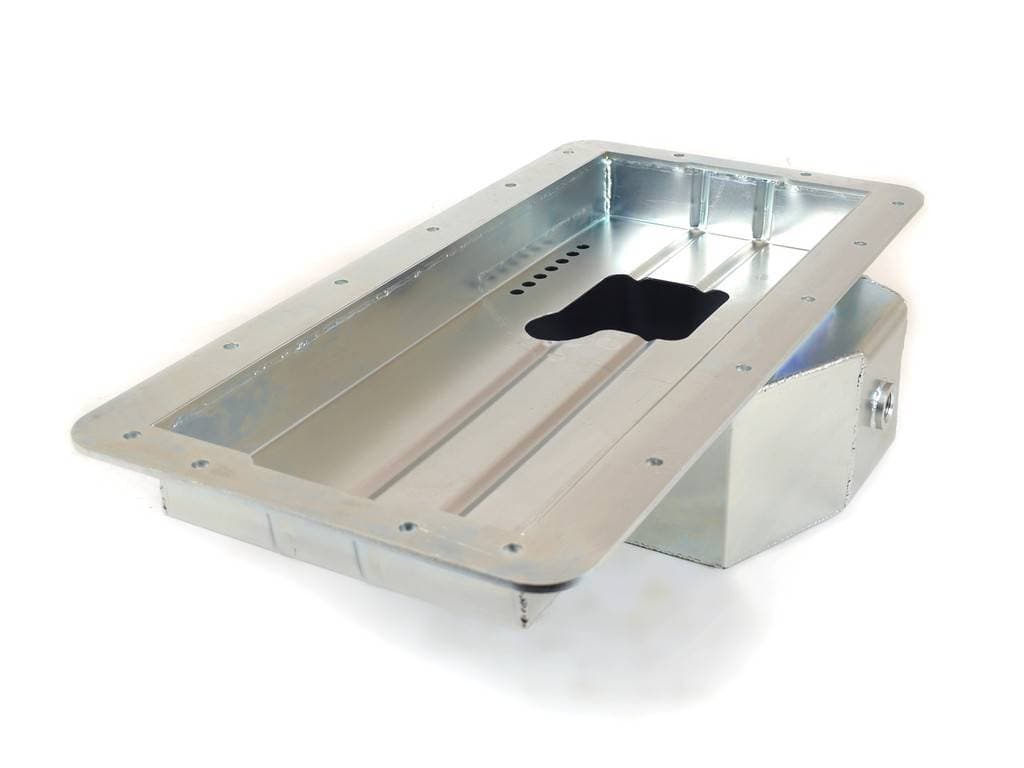

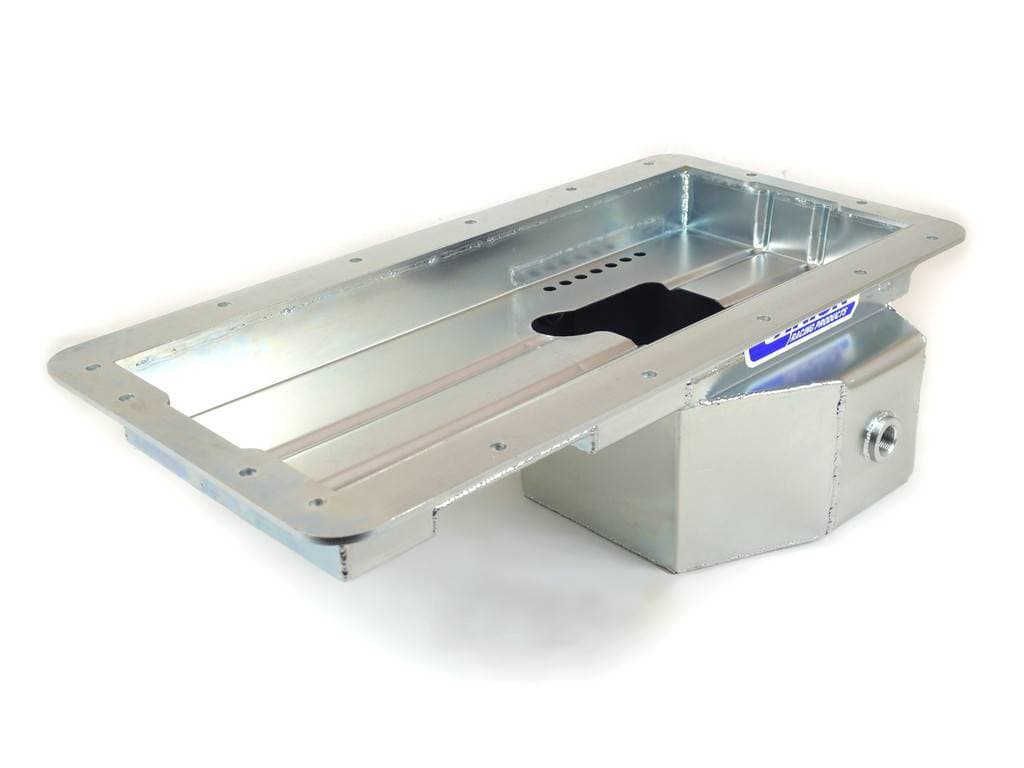

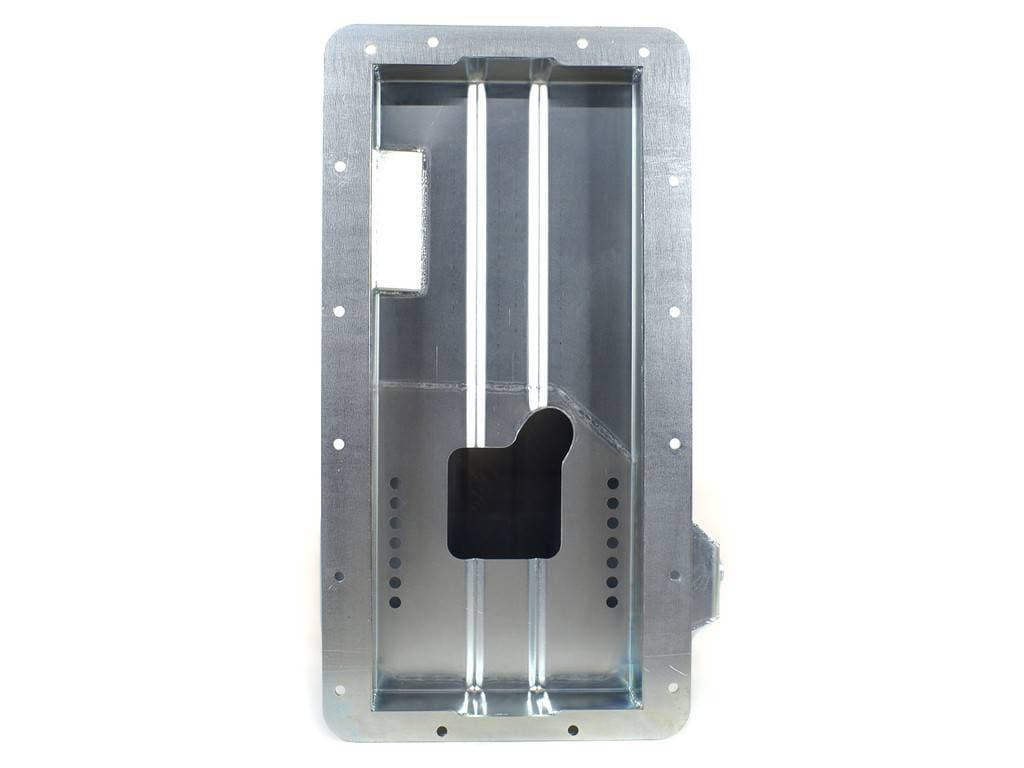

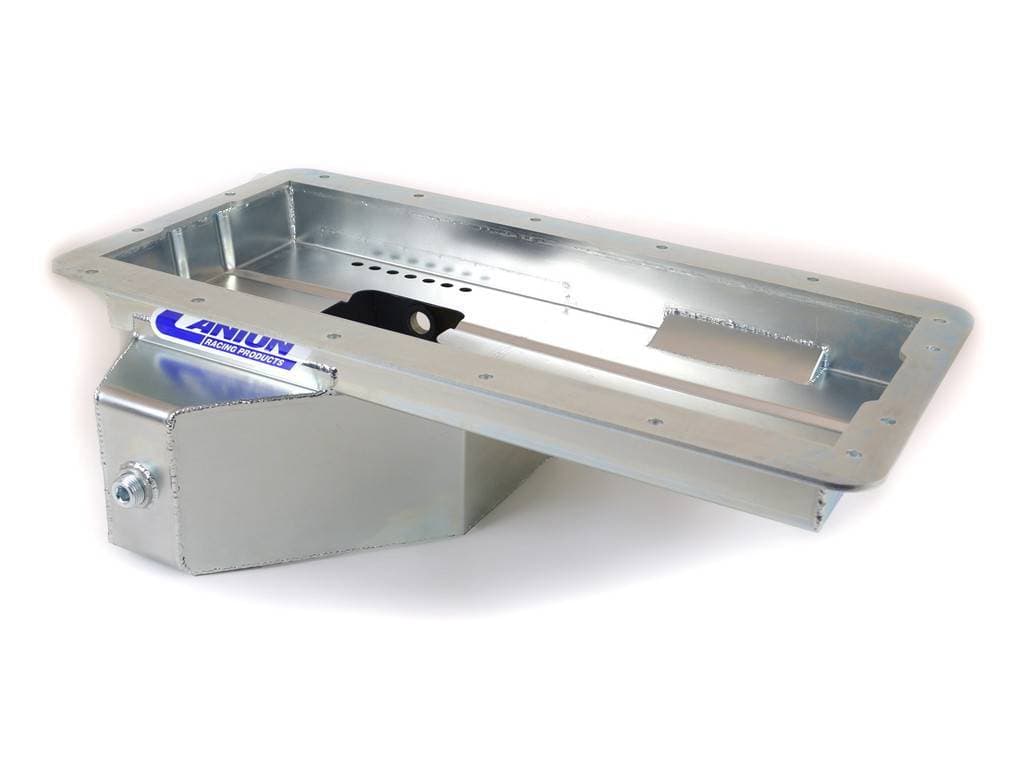

Ford Mustang Coyote 5.0L Street Canton Rear T-Sump Pan

Canton's new 12-730 Ford 5.0 Coyote oil pan is is designed for 96-04 and 05-12 Mustangs that are used on the street or strip. It's rear sump design offers extra capacity without sacrificing ground clearance and includes a slosh baffle for oil control to keep the oil off the crank shaft under heavy driving conditions.

Note: OEM Ford part #BR3Z-6622-A pickup required.

*Notice will not work with 21+ F-150 belt driven oil pump gears.

Features: This oil pan has 3/16" Lasercut Rails, Slosh Baffle, Magnetic Drain Plug, 7 qt System Capacity, 1/2" NPT bung for temperature sensor, Provison for our Pan Mounted Dipstick, 20 mm bung for low oil warning sender (Plug required if sender isn't used)

Style: Rear T-Sump Design offers extra capacity without sacrificing ground clearance and slosh baffle for oil control

Oil Pan Part #: 12-730 for Coyote 5.0L blocks

Recommended Accessories:
22-405 - 20mm Plug For Oil Level Sender Port
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
