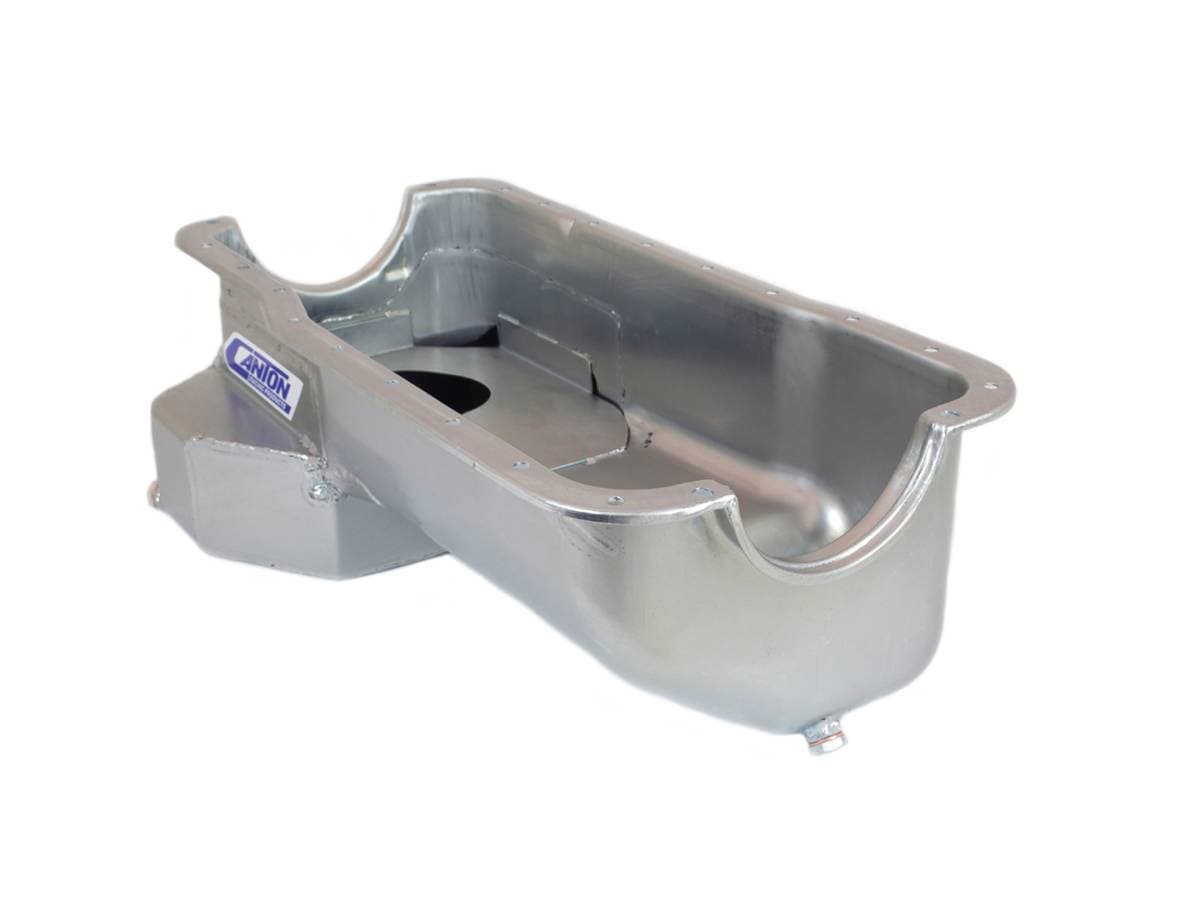

Ford Mustang Cobra 351W Canton 9 Quart Rear T Sump Oil Pan

This "T" style rear sump oil pan is for Ford 351 Windsor blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification.



Note: This pan requires our 15-691 pickup. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.

FEATURES: Retains Stock Depth, Crank Scraper, Slosh Baffle, 1/2" NPT Temperature Bung, Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug

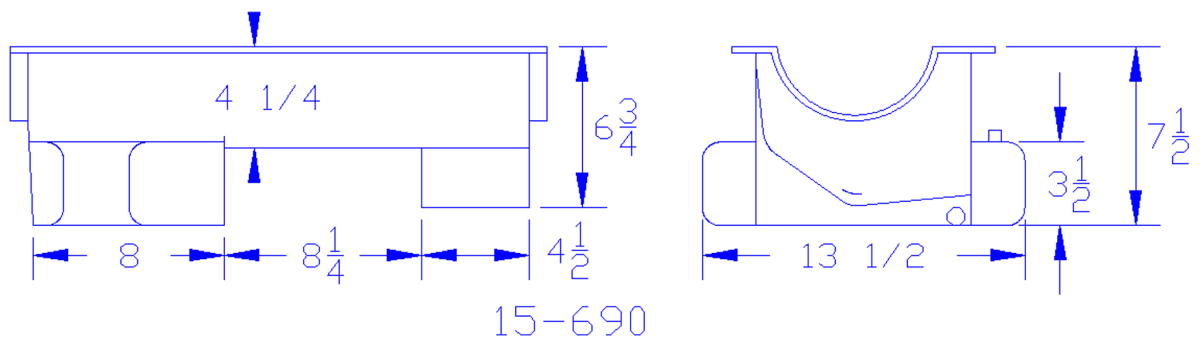

SIZE: 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity.

PART #: #15-690 for 351 Windsor blocks.

RECOMMENDED ACCESSORIES:
PART #: 15-691 - Pickup with 3/4" Dia. Inlet
PART #: 15-695 - Pickup if using main support or 4.25” stroke
PART #: 20-953 - Pickup Mounting Stud for 351W Based Engines
PART #: 20-850 - Universal Steel Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
PART #: 21-062 - Ford 351W Main Support
PART #: 88-652 – Small Block Ford 351W One Piece Oil Pan Gasket
