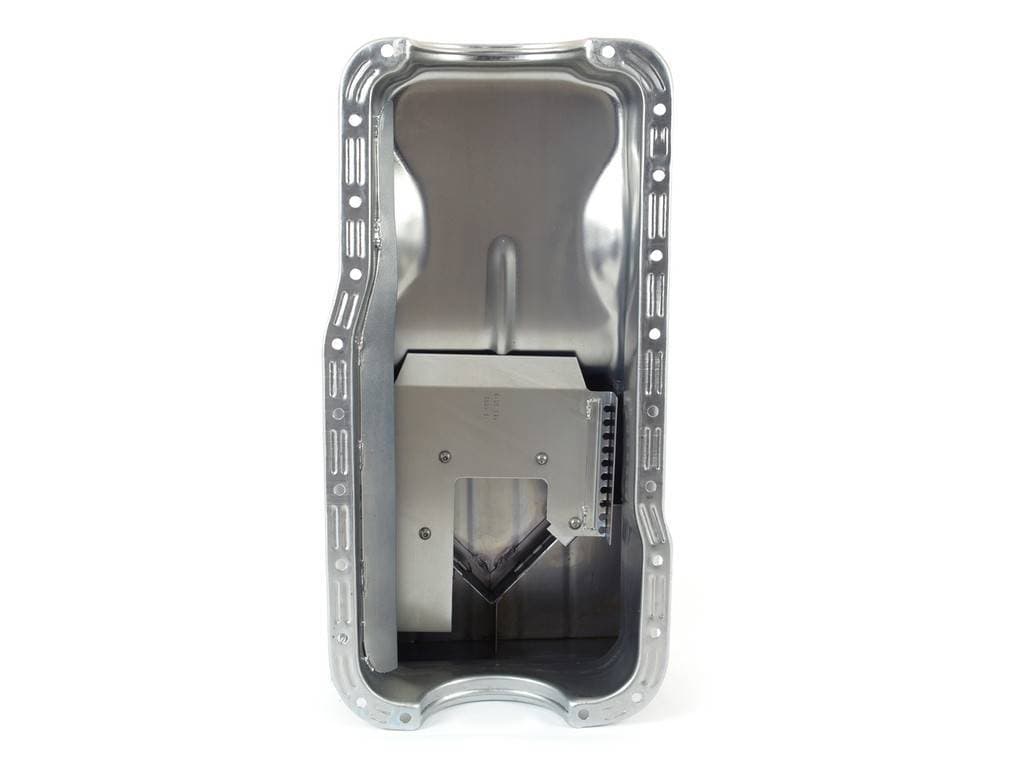

FEATURES: Track proven diamond shape road race baffle with four trap doors and runners to direct oil to the pickup under all conditions, bolt in windage tray, temp. fitting, magnetic drain plug, crank scraper and dipstick bung.

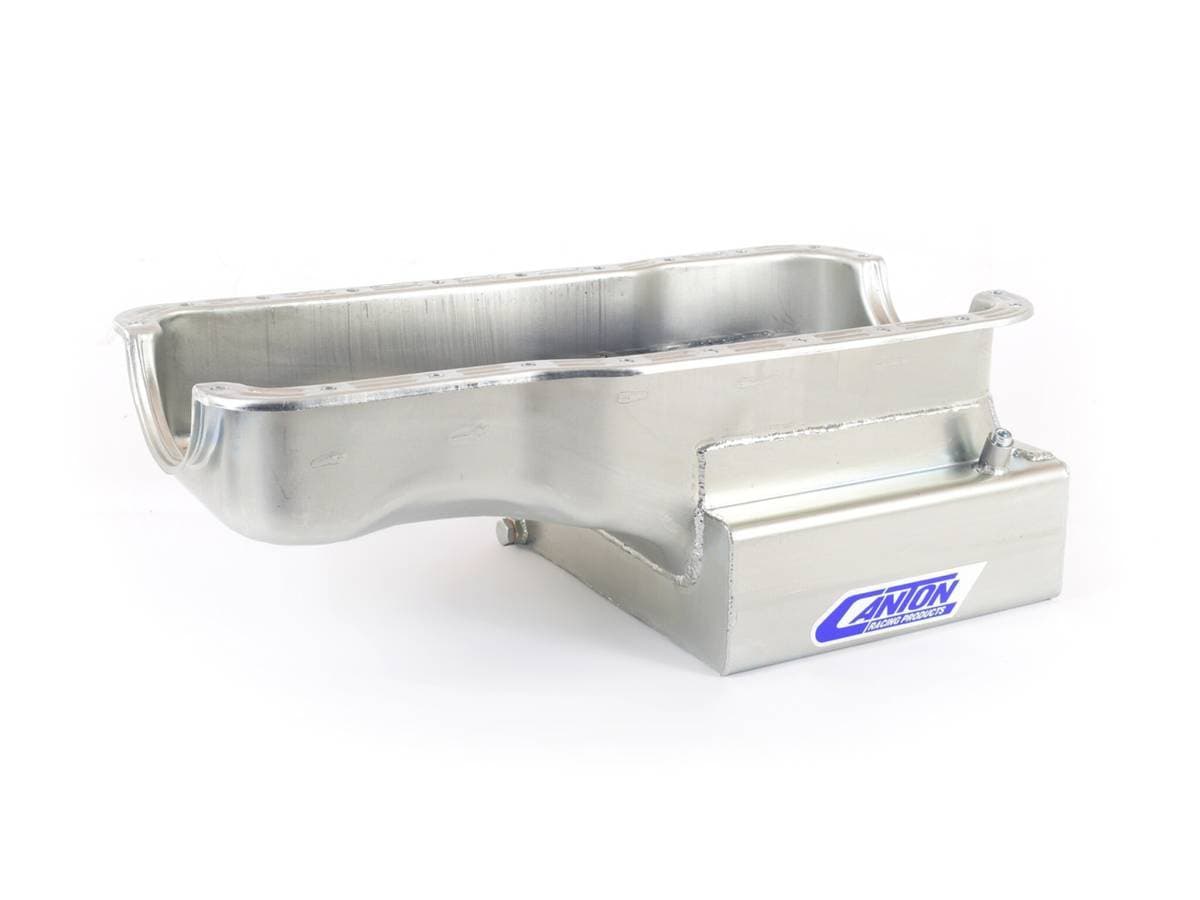

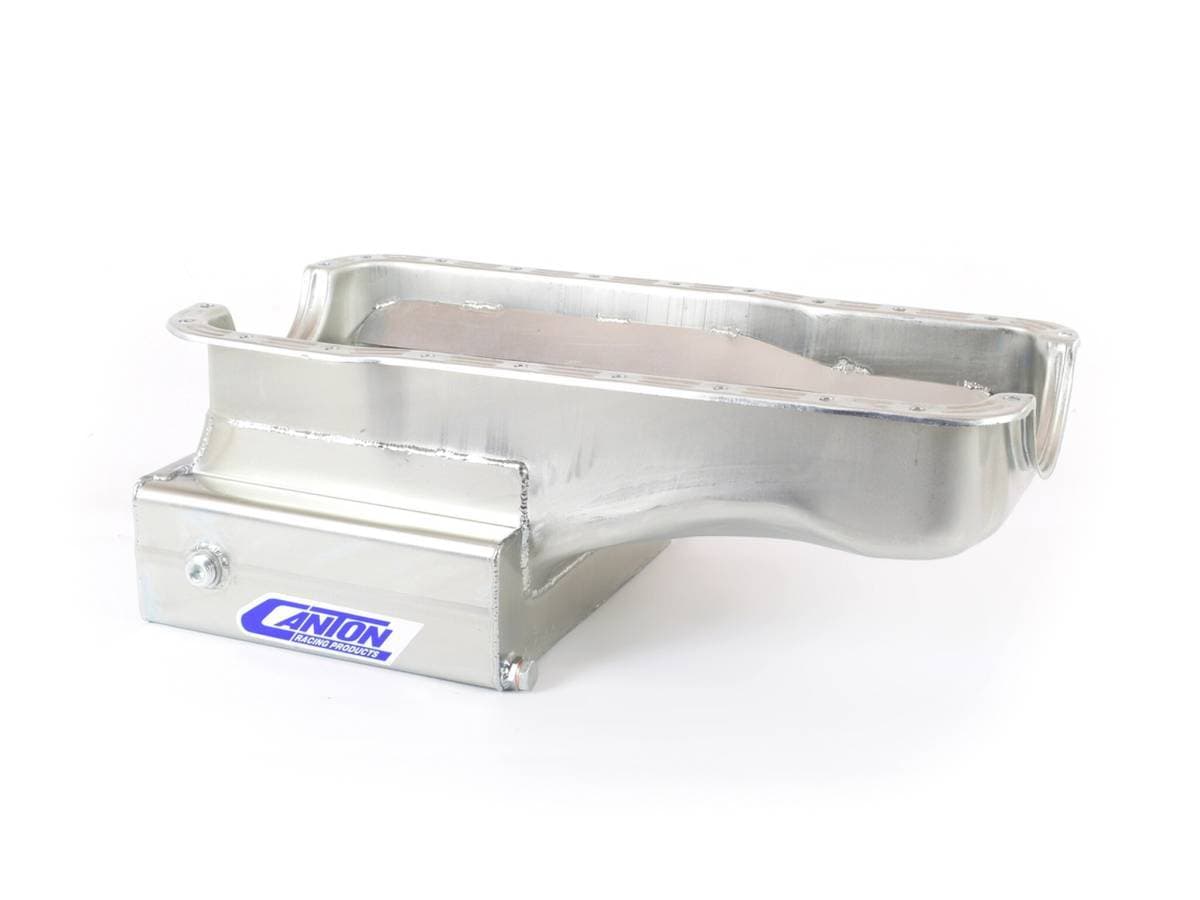

STYLE: Shallow “ T “ sump Road Race Style Oil Pan.

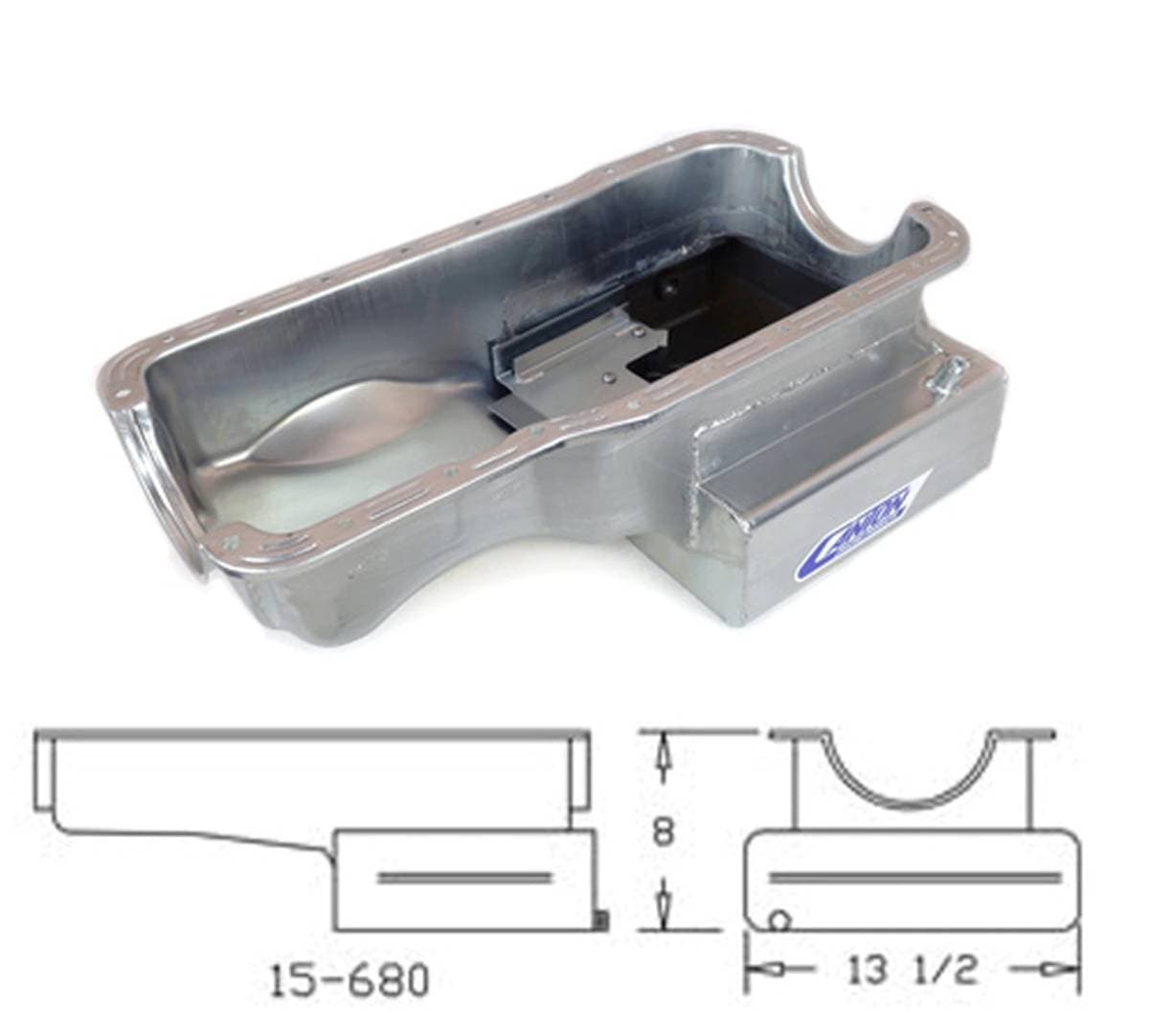

SIZE: 8" Deep with heavy duty 14 ga. 12" Wide front sump with a 9 qt. system capacity.
PART #: #15-680S for 351 Windsor blocks.
RECOMMENDED ACCESSORIES:
OIL PUMP PICKUP:
PART #: 15-661 3/4" Dia. p/u for 15-680S.
GASKETS:
PART #: 88-650 4 pc. gasket set for 351W blocks
PART #: 88-652 1 pc. gasket for 351W blocks.
MAIN SUPPORT:
PART #: 21-062 Ford 351W Main Cap Stud Support (Main Girdle) is designed to directly tie into the main caps. The Canton design doesn’t need bushings or spacers and doesn’t require the main caps to be machined to mount it. The end result is a main girdle that offers more support, is easy to install, and will clear large strokers. This support is 5/8" thick and is laser cut out of steel with CNC machined mounting holes and includes all ARP hardware.
MAIN SUPPORT WINDAGE TRAY:
PART #: 20-962 Ford 351W Main Cap Stud Support Windage Tray bolts to the pre-drilled and tapped holes on Canton main cap stud supports. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly. Come with mounting bolts.
WINDAGE TRAY:
PART #: 20-933 Ford 351W Screen Windage tray for use WITHOUT a Main Support in front sump pans. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly .
WINDAGE TRAY MOUNTING HARDWARE:
PART #: 20-942 Ford R302/351w/351c Windage tray mounting kit for #20-930 includes four main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-943 Ford R302/351w/351c Full main cap stud kit for #20-930 includes the full ten main cap studs, nuts, washers and tray mounting hardware.
