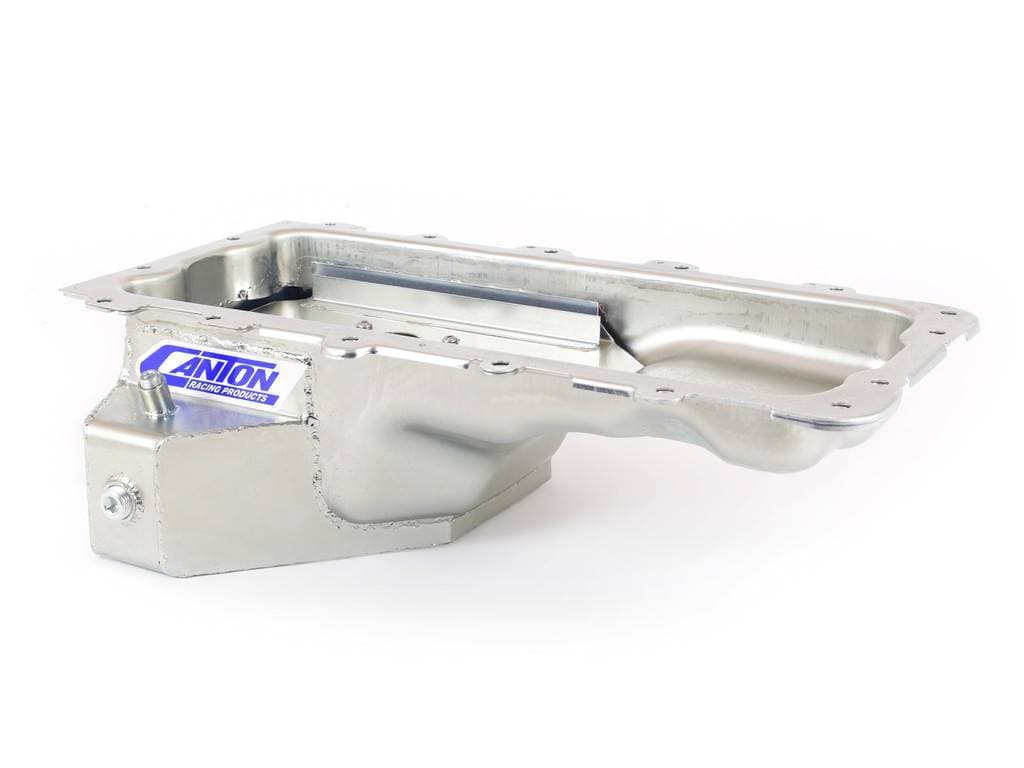

Ford Mustang 4.6/5.4 Canton 7 Quart Rear Sump Oil Pan - Black

This “T” style modular rear sump road race oil pan is designed for Ford 4.6 / 5.4 blocks in ‘96-‘04 & ‘05-up Mustangs. It has 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity. This pan includes our four trap door baffle and directional runner system with a bolt in slosh baffle for oil control. In addition, these pans include a temperature fitting and a magnetic drain plug.



Note: ‘96-’04 Mustang use 2V or 4V factory pickups. ‘05-up Mustang use only 2V pickups.

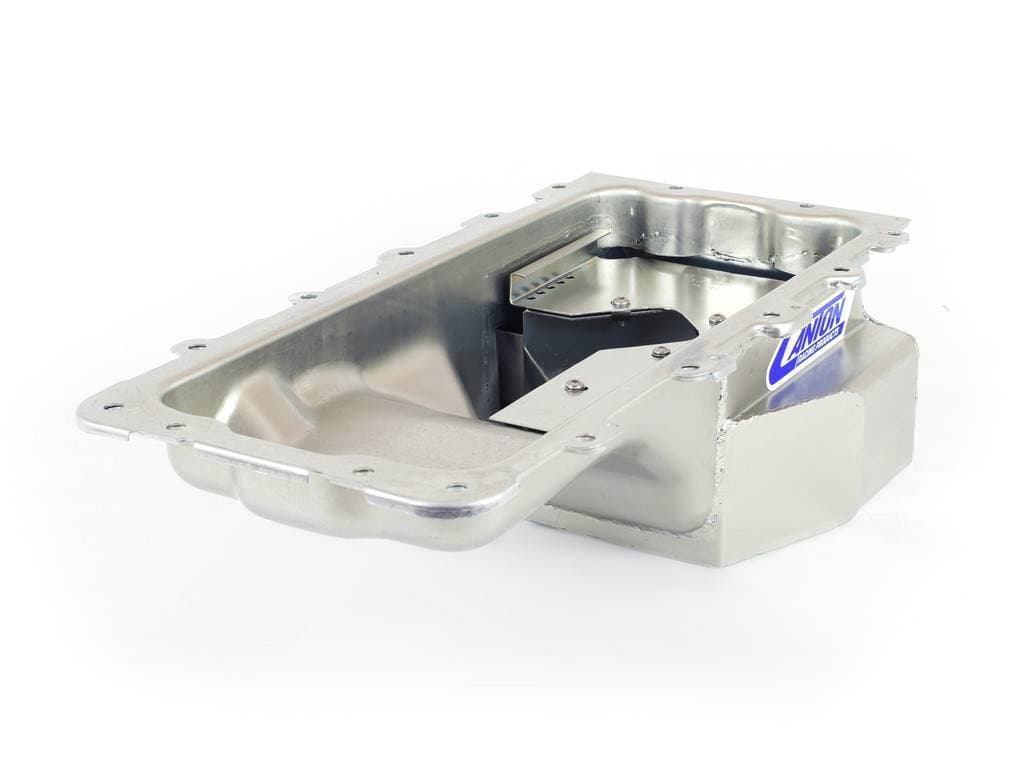

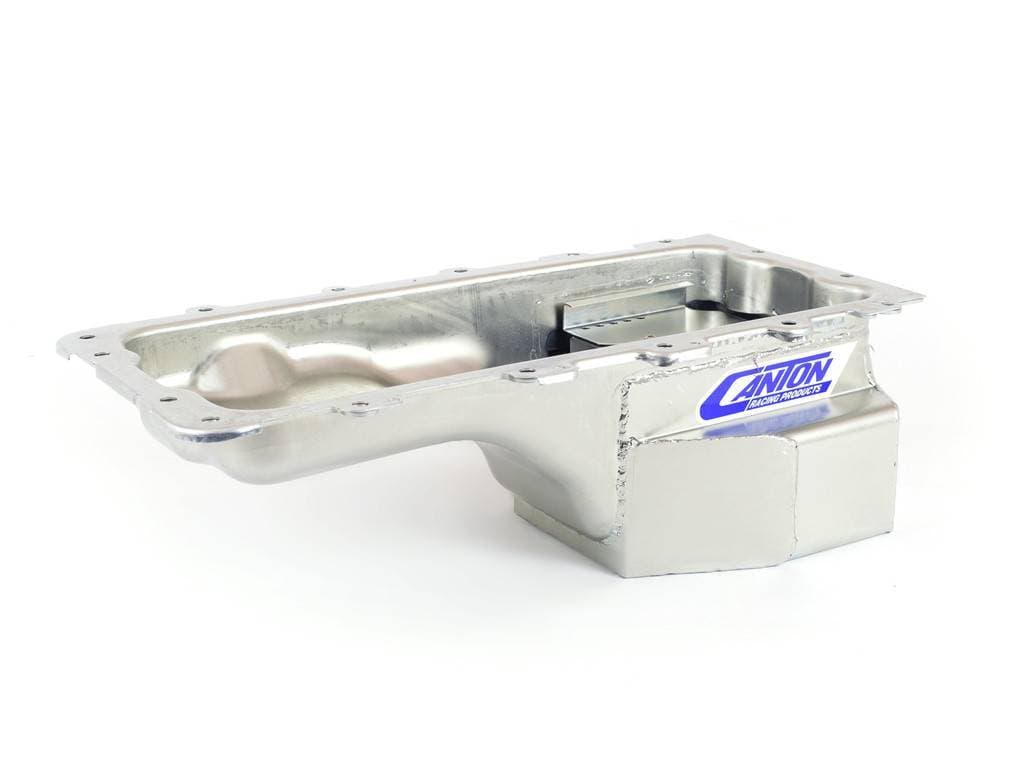

Pictures are for reference, oil pan would come black*

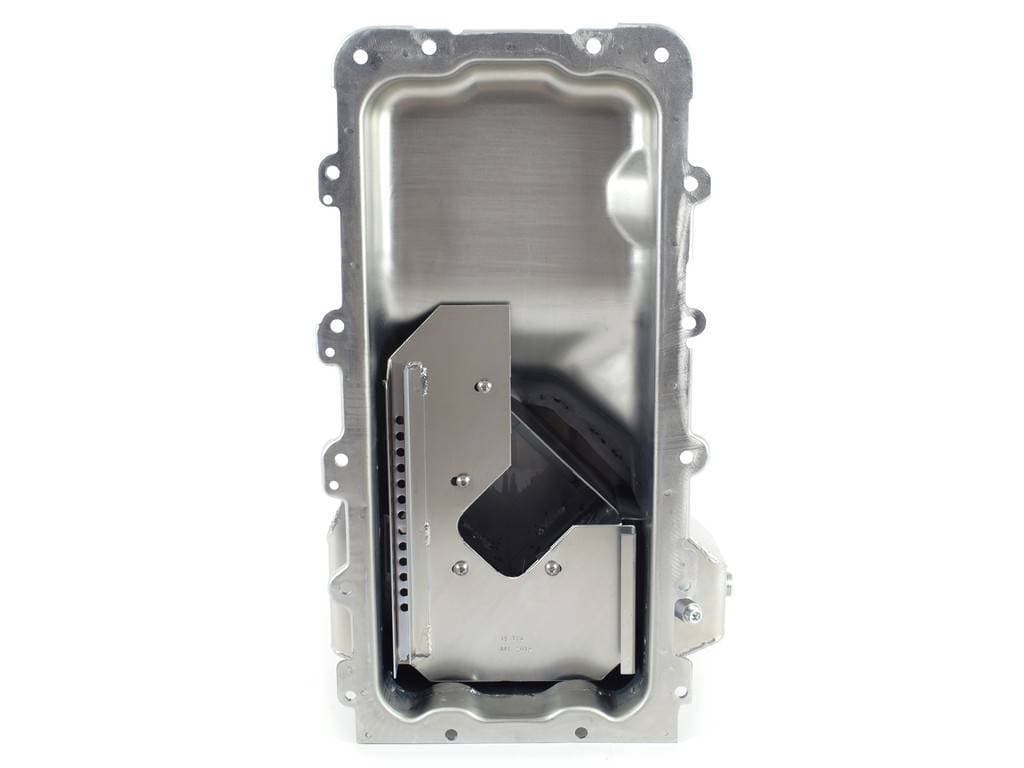

FEATURES: The 15-784 Pan for Street, Strip, Competition Drag Racing & Road Racing, has track proven diamond shape road race baffle assembly with four trap doors and runners to direct oil to the pickup under all conditions, bolt in slosh baffle, temperature fitting, and magnetic drain plug.

STYLE: T style sump to increase oil capacity without losing ground clearance.

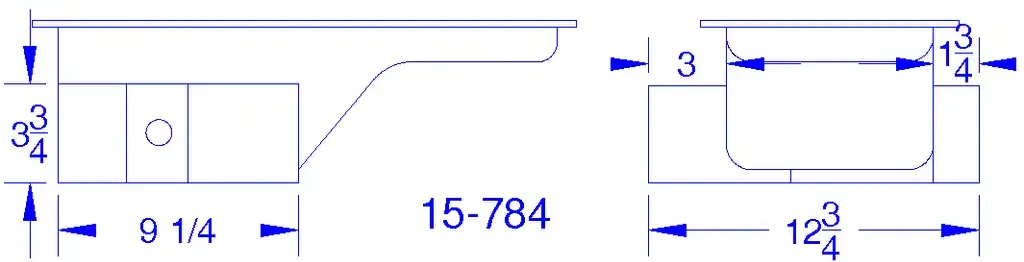

SIZE: 6-1/4" Deep, 12-3/4" wide by 9-1/4" Long sump gives a 7 quart system capacity.

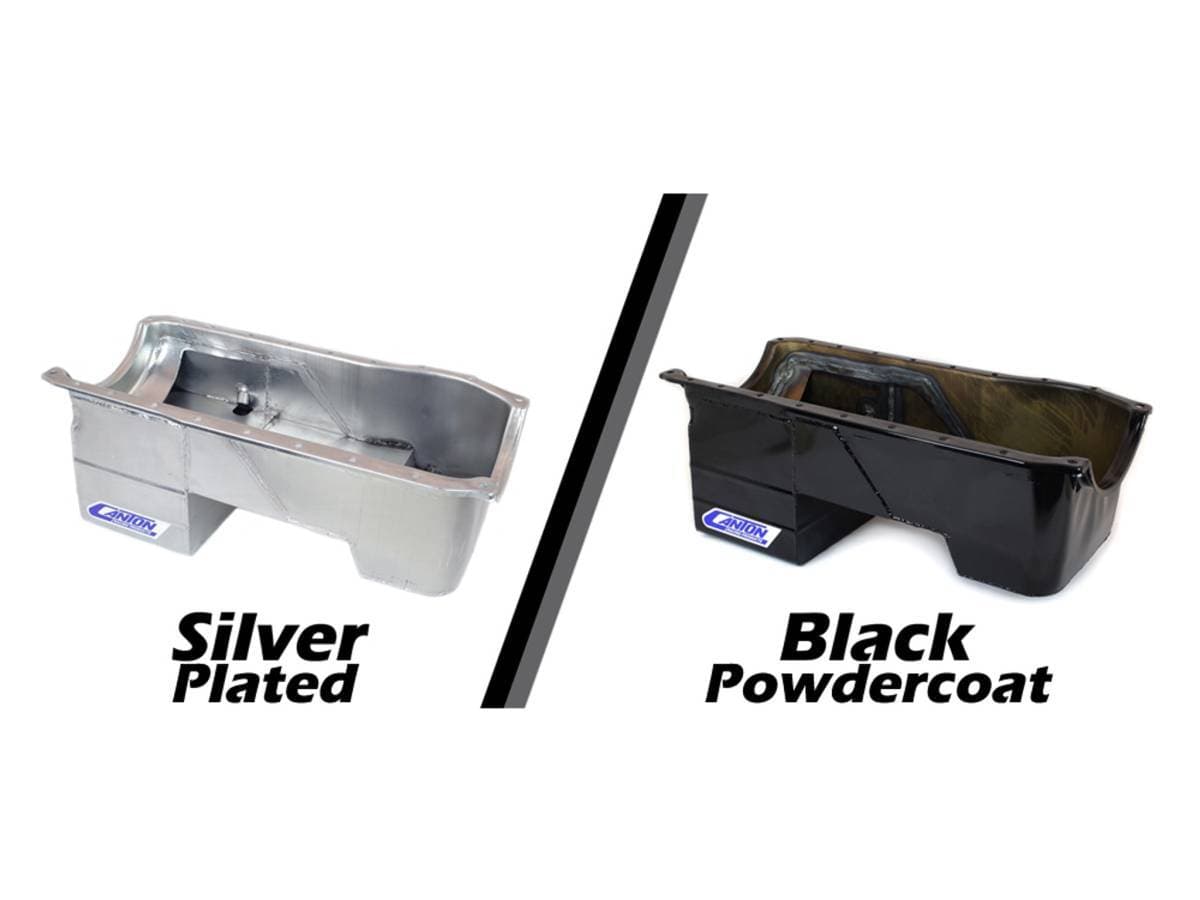

OIL PAN PART #: 15-784BLK for 4.6L or 5.4L engines with or without Windage Tray. Powdercoated Black

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: Use Stock Factory Pickup.

GASKETS:
PART #: 88-780 Oil pan gasket for 4.6 and 5.4 Fords

WINDAGE TRAY:
PART #: 20-939 Ford 4.6/5.4 Ford Screen Windage Tray mounts between the oil pan and block, these trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly. Includes oil pan studs and nuts.
