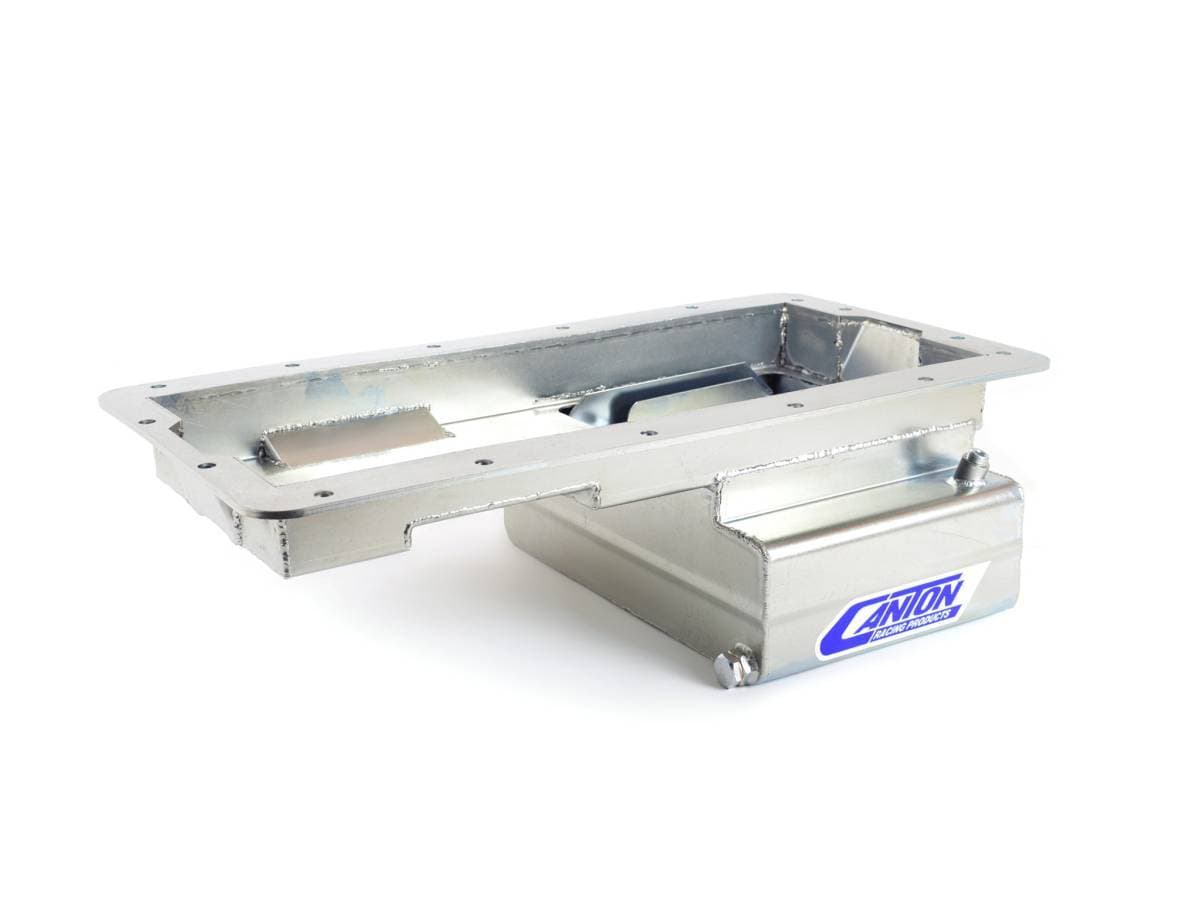

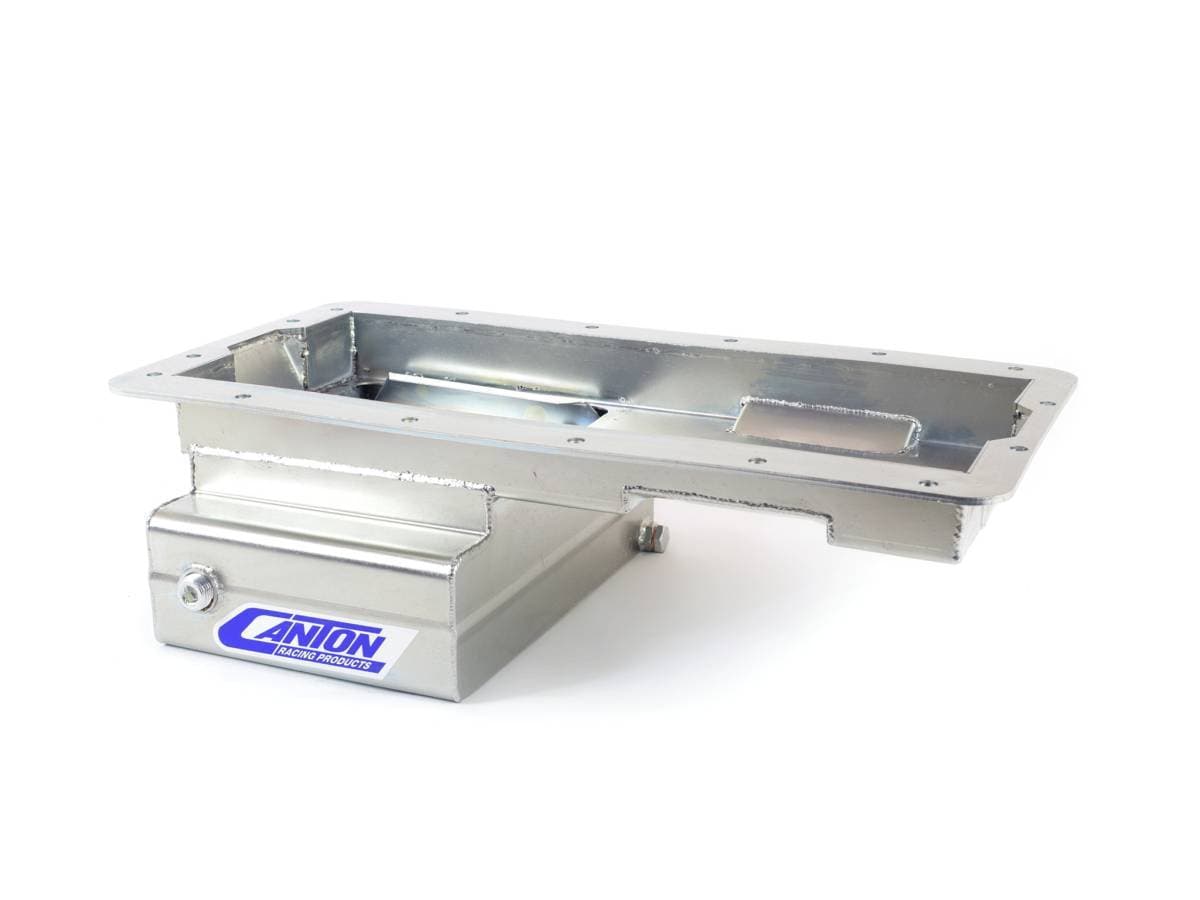

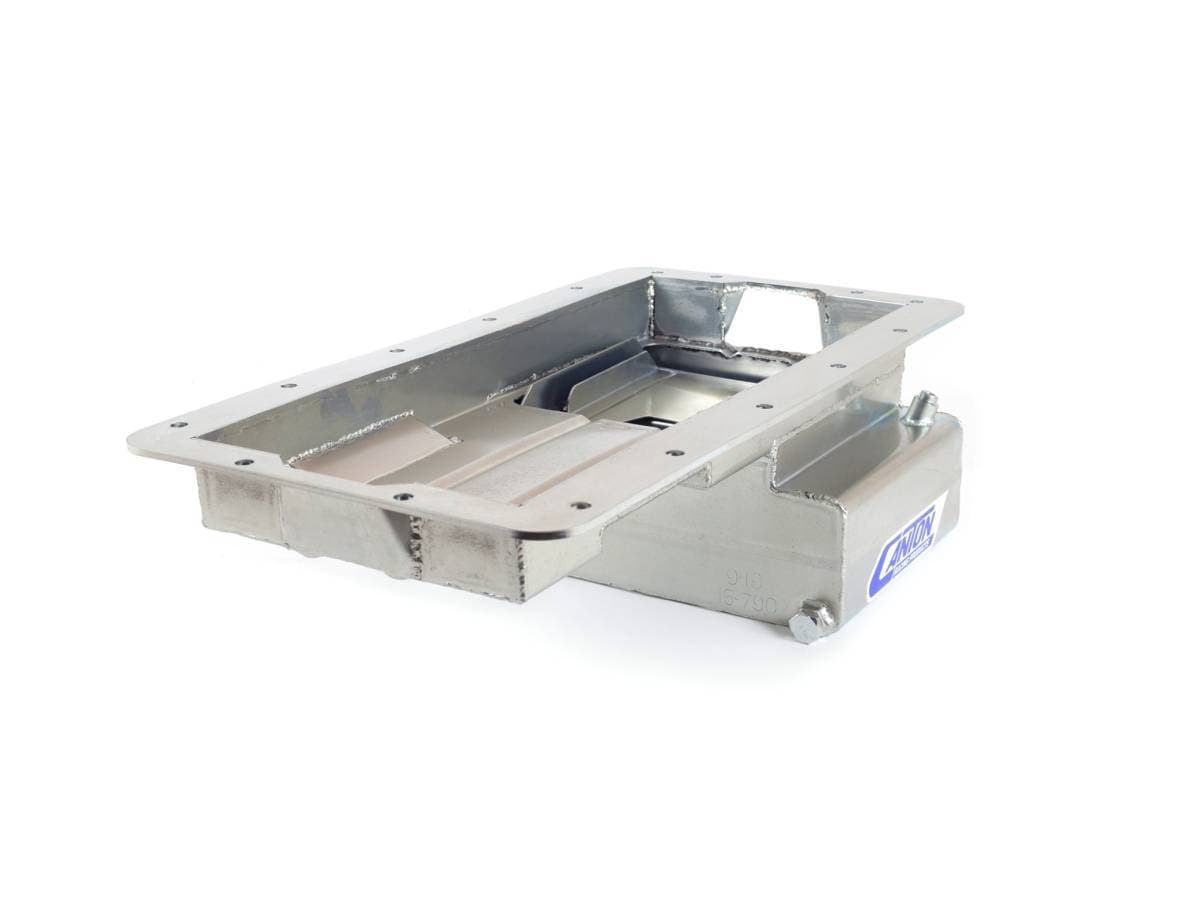

Ford Mustang 4.6/5.4 Canton 7 Quart Front Sump Oil Pan

This front sump engine swap oil pan is designed to install 4.6/5.4L modular engines into early Ford chassis that require a front sump pan. It has a 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity.

Note: This pan requires our 15-791 pickup for 4.6L and 5.4L 2V pumps or 15-793 pickup for 4.6L and 5.4L 4V pumps, 3V Custom order.

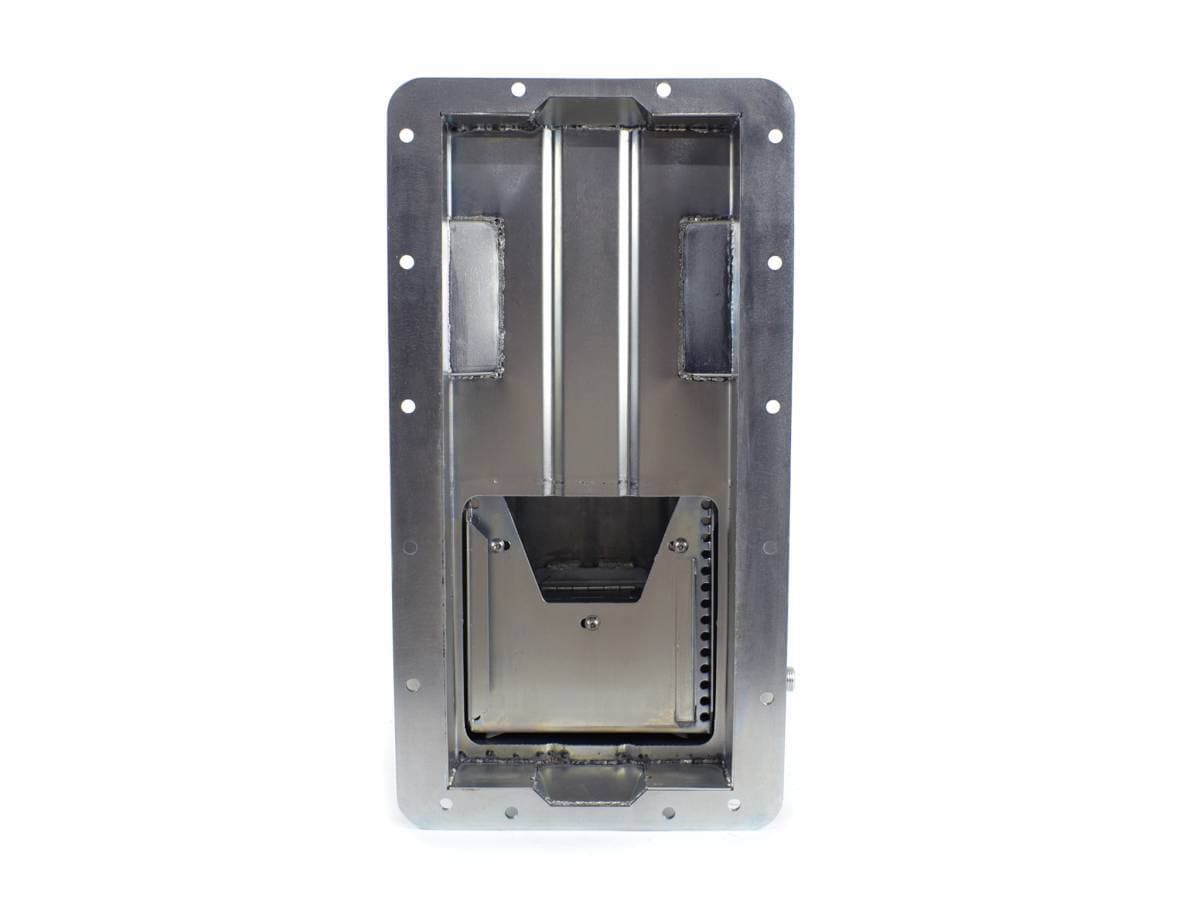

FEATURES: Road Race Baffle Assembly With Five Trap Doors, Removable Windage/Anti-Slosh Baffle, 1/2" NPT Temperature Bung, Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug

STYLE: T style sump to increase oil capacity without losing ground clearance.

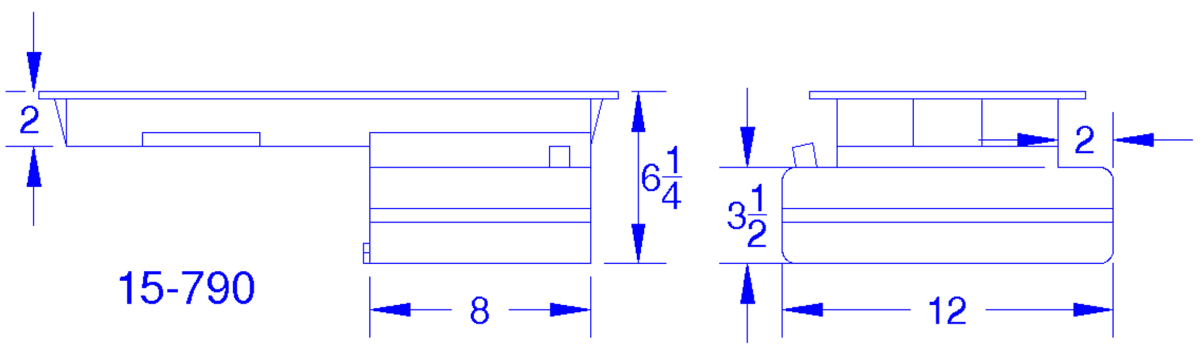

SIZE: 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity.

OIL PAN PART #: 15-790 for 4.6/5.4L modular engines into early Ford chassis that require a front sump pan.

RECOMMENDED ACCESSORIES:
PART #: 15-791 - Pickup for 4.6L/5.4L 2V Pumps
PART #: 15-793 - Pickup for 4.6L/5.4L 4V Pumps
PART #: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
PART #: 88-780 - Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
