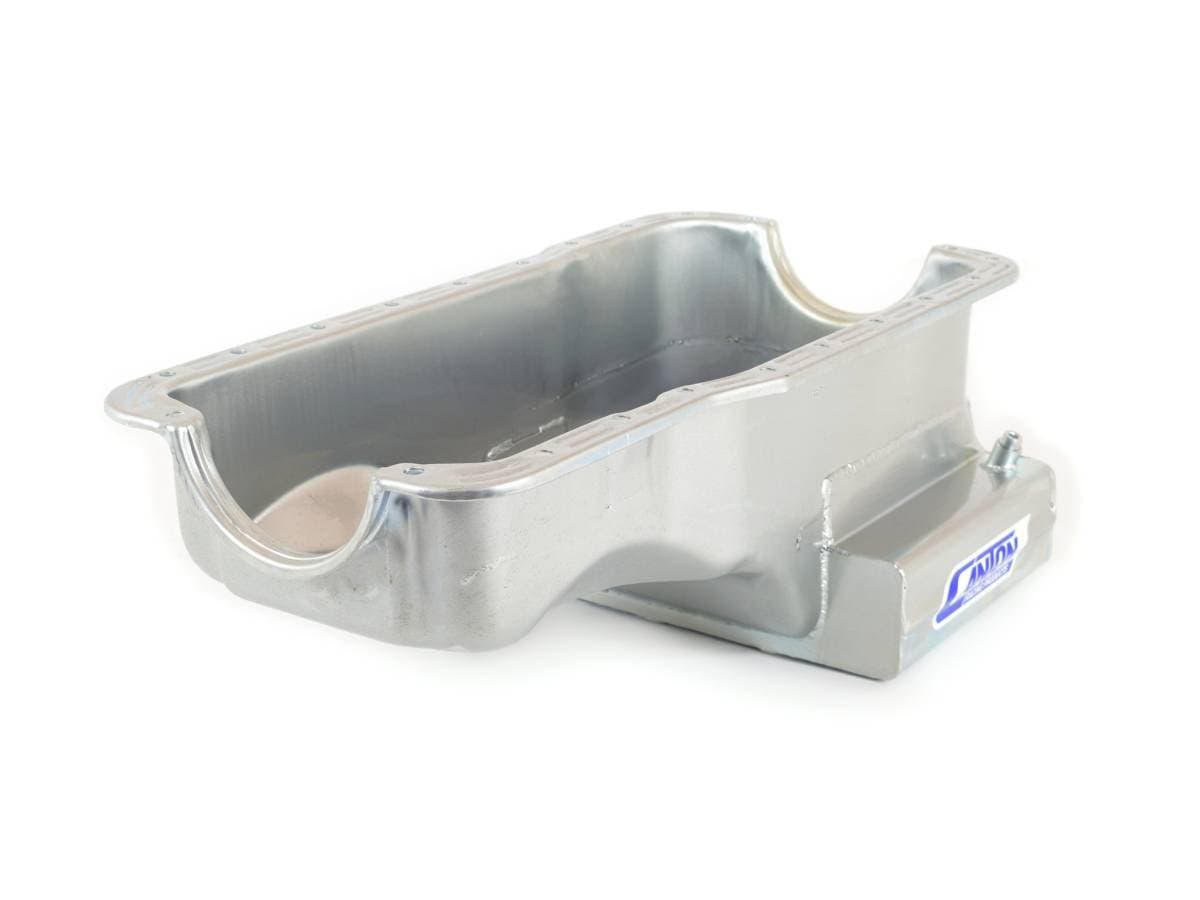

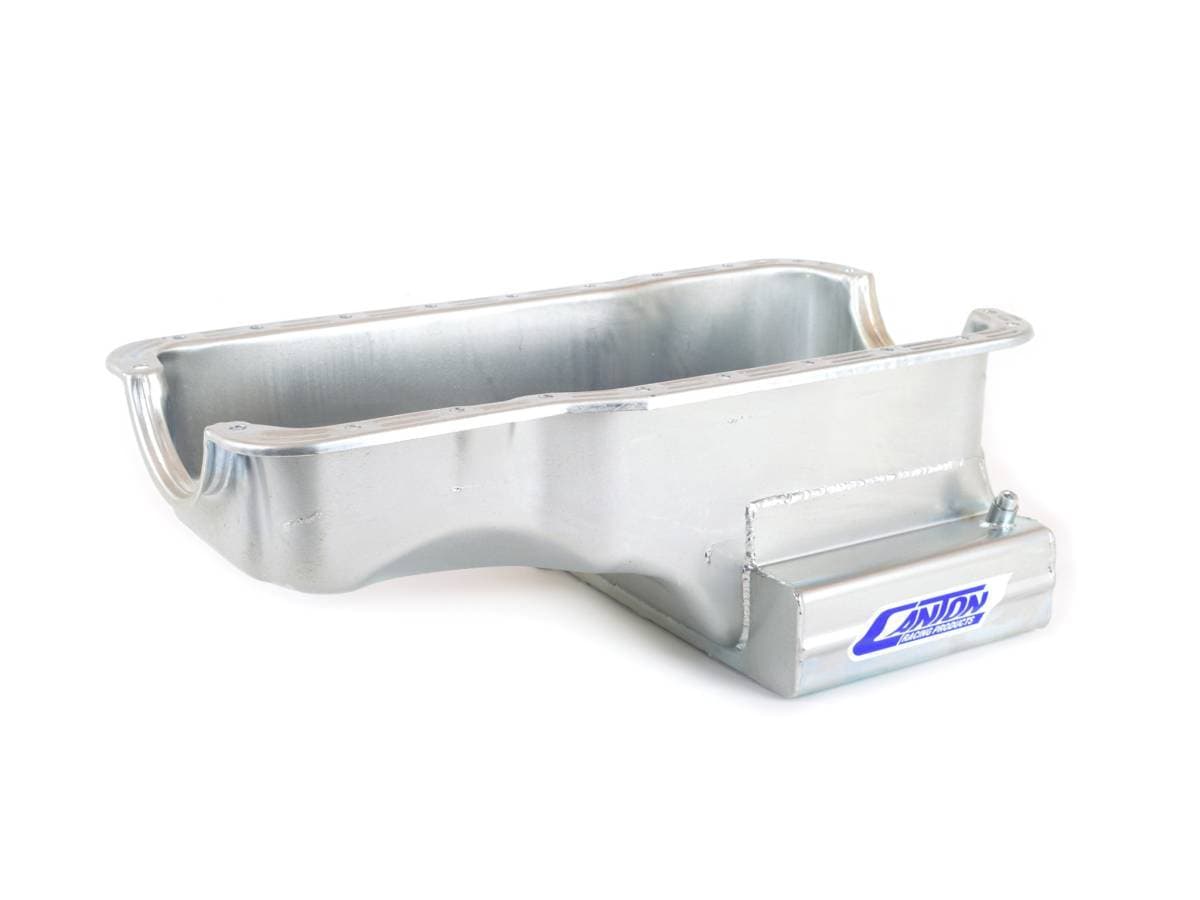

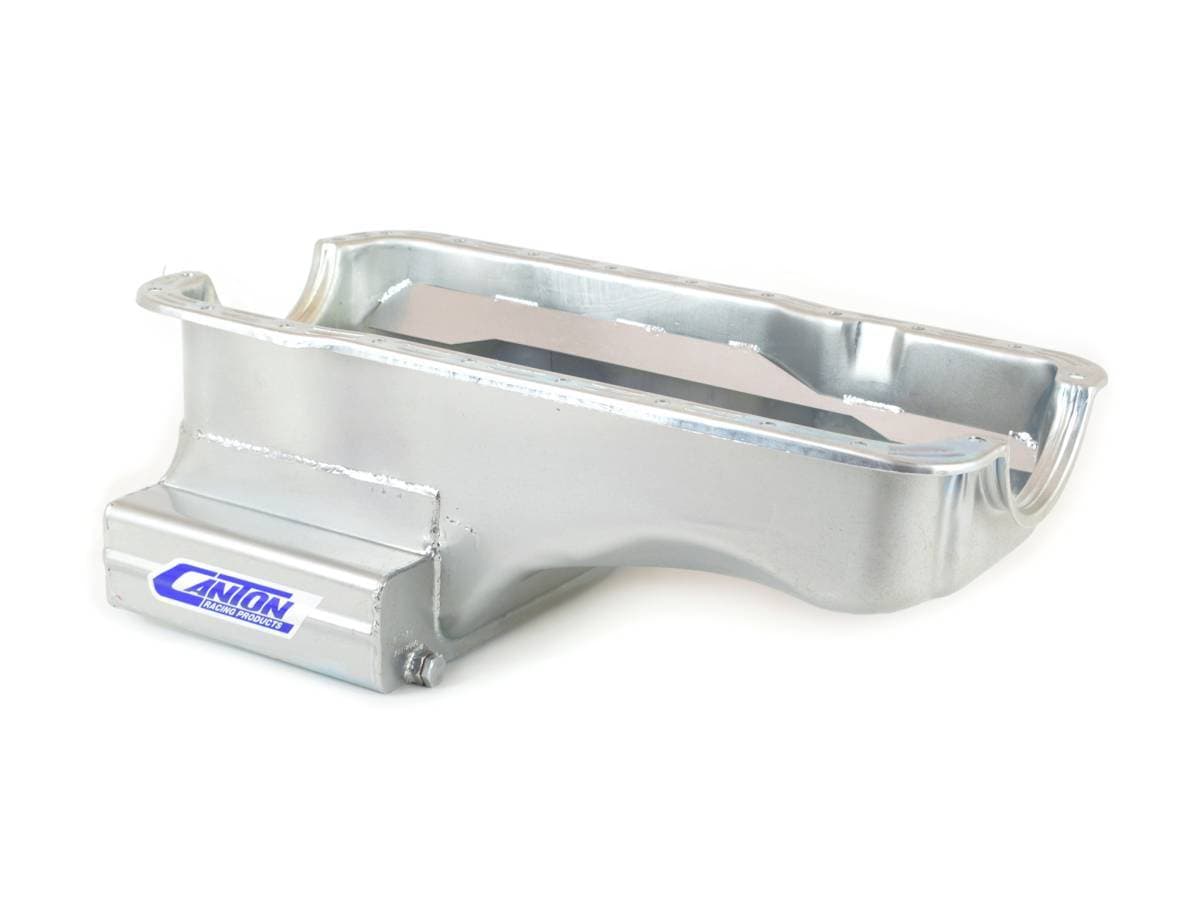

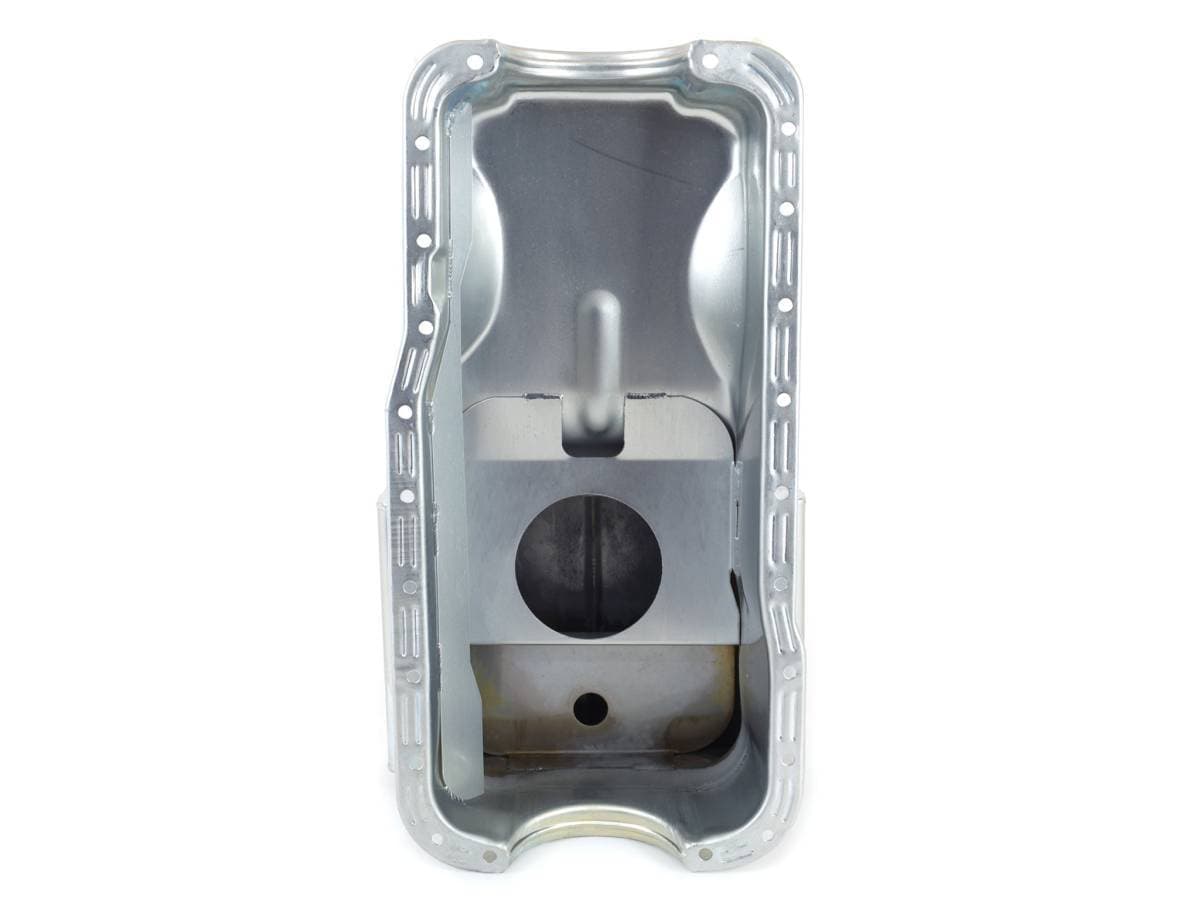

FEATURES: This oil pan features a Slosh baffle, magnetic drain plug, and provision for pan mounted dipstick. Works with long tube headers and comes with the crankscraper and is deeper in the center for main support clearance.
STYLE: Deep rear sump pan for increased oil capacity and oil control in 79 and up Mustangs and 80 & up T-Bird chassis, it is deep enough to clear any stroker kit.

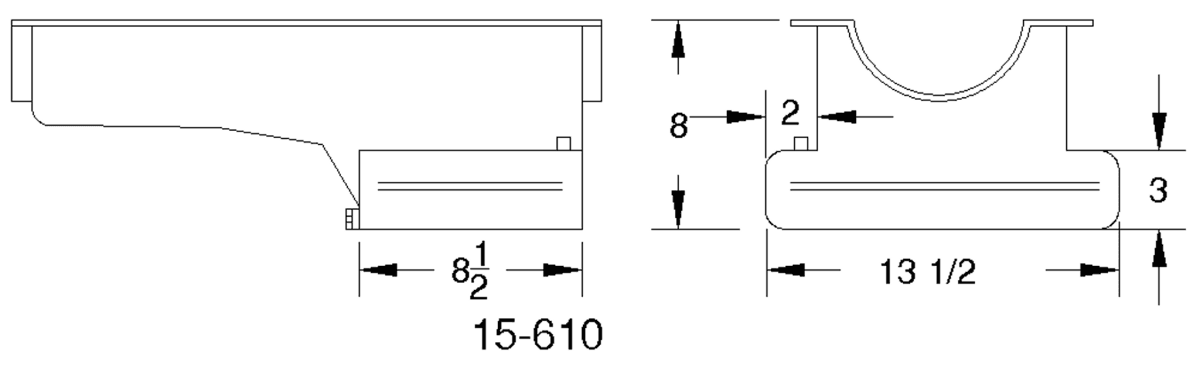

SIZE: 8" Deep sump gives a 7 quart system capacity.
OIL PAN PART #: 15-610 for 289-302 blocks with or without main support.
RECOMMENDED ACCESSORIES:
OIL PUMP PICKUP:
PART #: 15-611 without main girdle for 15-610 pan.
GASKETS:
PART #: 88-600 4 pc. gasket set for 289-302 blocks
DIPSTICKS:
PART #: 20-850 This Universal steel tube dipstick kit is designed for our pans which have a pan mounted dipstick provision built into them. This dipstick is 22" total length with 20" from the fitting up. The dipstick needs to be calibrated for each application and can be bent to fit if necessary. Dipstick installs into 1/4" NPT female dipstick bung.
PART #: 20-854 This Universal steel braided dipstick kit is designed for our pans which have a 1/4" N.P.T. pan mounted dipstick provision built into them. The dipstick features a stainless steel braided dipstick tube, mounting bracket, and chrome dipstick head and fittings. The total length of the dipstick is 23", with 17.5" being the braided part. The Dipstick needs to be calibrated for each application and can be bent to fit if necessary. Be sure to check pan listing for proper dipstick recommendation.
