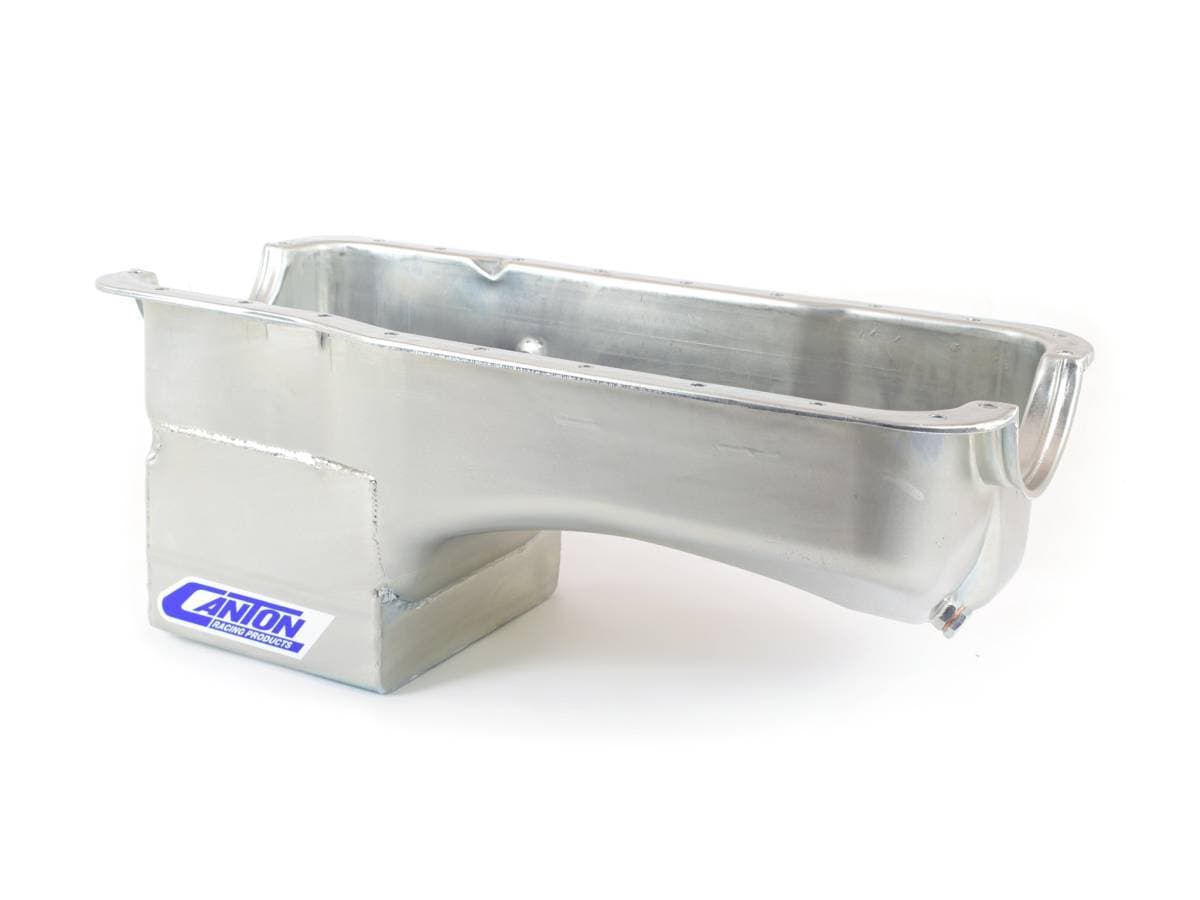

Ford Mustang 289/302 Canton 7 Quart Deep Rear Sump Oil Pan w/ Scraper - Silver

This deep sump oil pan is for Ford 289-302 blocks in Fox Body Mustangs. It has a 9" deep by 7" long sump and a 7 quart system capacity.

Note: This pan requires one of canton's pickups.

*Notice The new scraper design in the standard pans clears mains supports and thus eliminates the need for a non scraper "S" version of the pan.

FEATURES: This oil pan features a Slosh baffle, magnetic drain plug, and provision for pan mounted dipstick. Works with long tube headers and comes with the crankscraper and is deeper in the center for main support clearance.

STYLE: Deep rear sump pan for increased oil capacity and oil control in 79 and up Mustangs and 80 & up T-Bird chassis, it is deep enough to clear any stroker kit.

SIZE: 9" Deep sump gives a 7 quart system capacity.

OIL PAN PART #: 15-620 for 289-302 blocks with or without main support.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 15-621 without main girdle for 15-620 pan.
PART #: 15-623 for other main girdle for 15-620 pan.

GASKETS:
PART #: 88-602 1 pc. gasket for 289-302 blocks.

UNIVERSAL DIPSTICK:
PART #: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting

WINDAGE TRAY MOUNTING HARDWARE:
PART #: 20-950 - Pickup Mounting Stud for Ford 302 Based Engines
PART #: 20-953 - Pickup Mounting Stud for Ford 302R Based Engines
