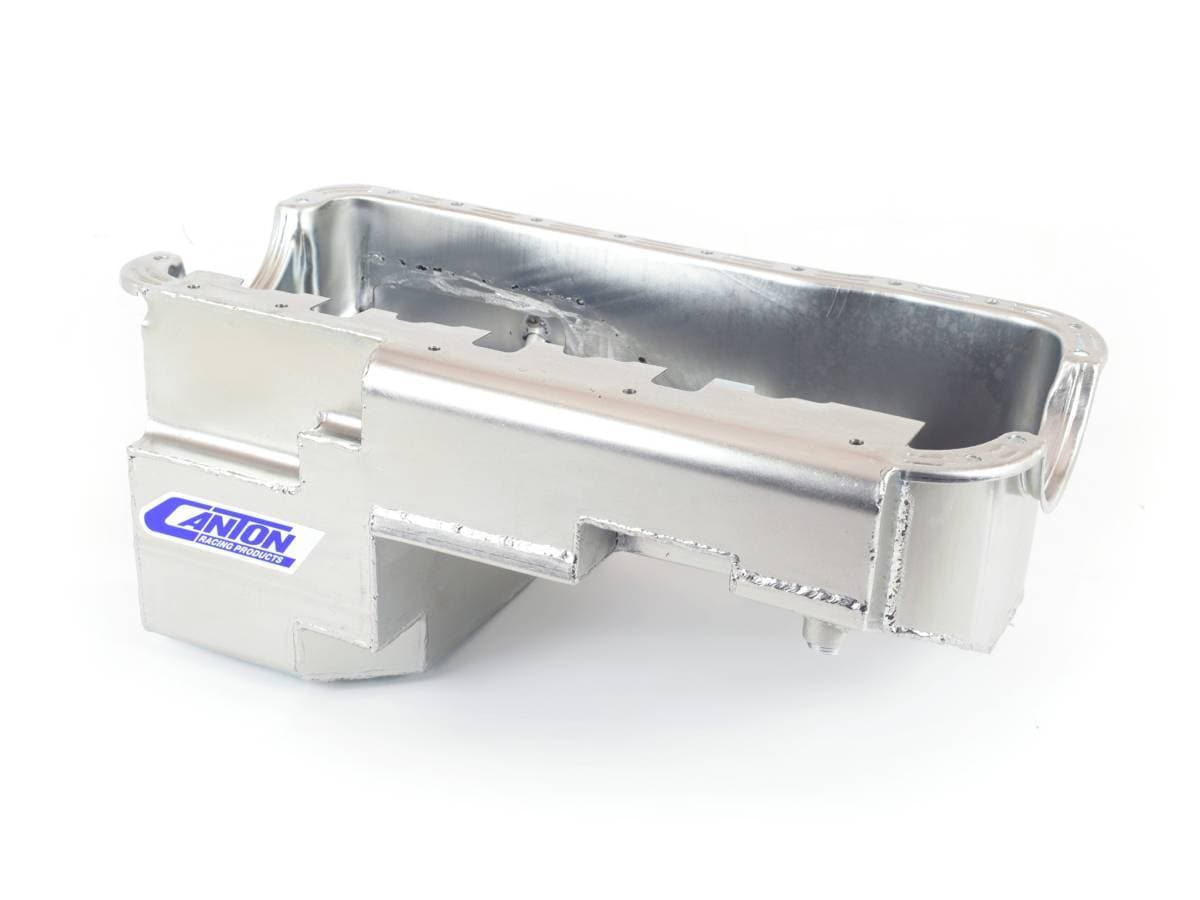

Ford Fox Body 302 Block Rear Sump Drag Race Oil Pan - Silver

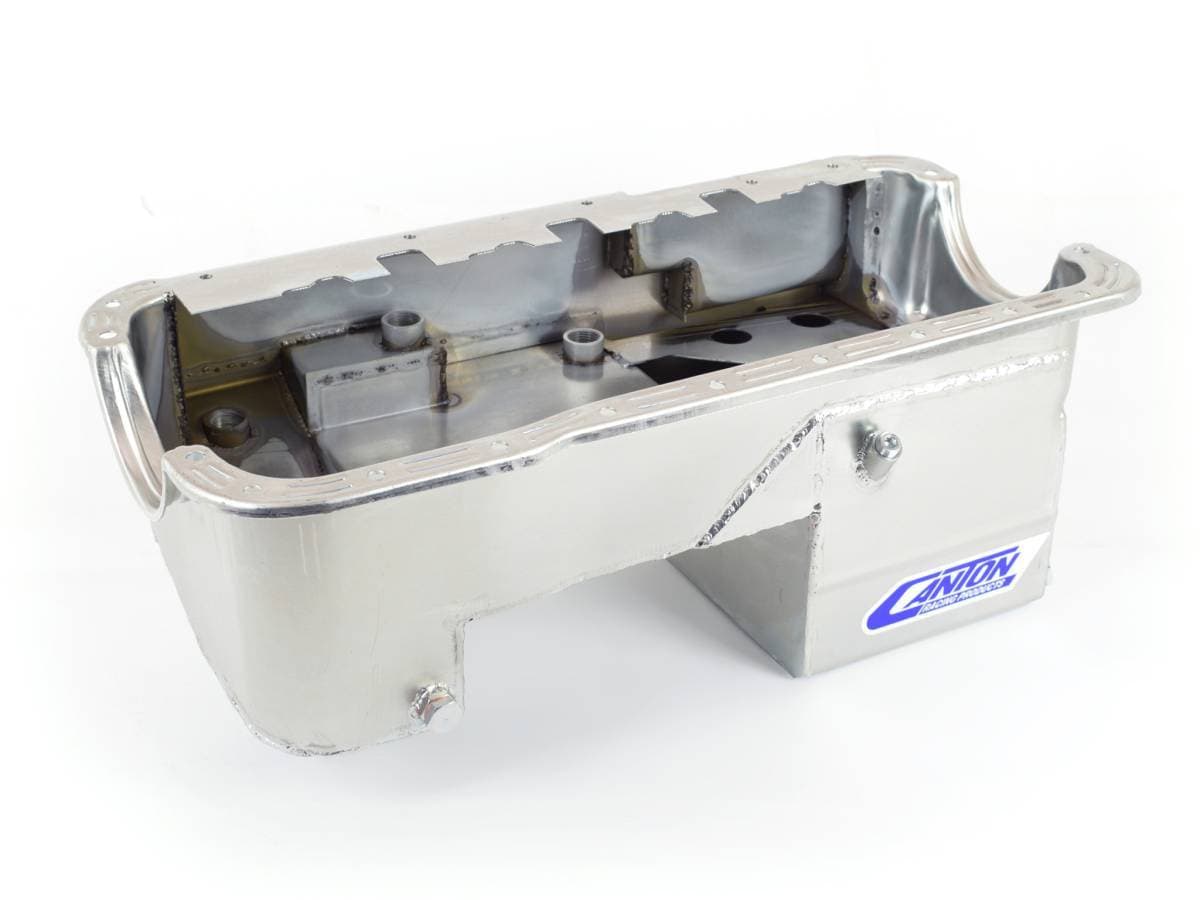

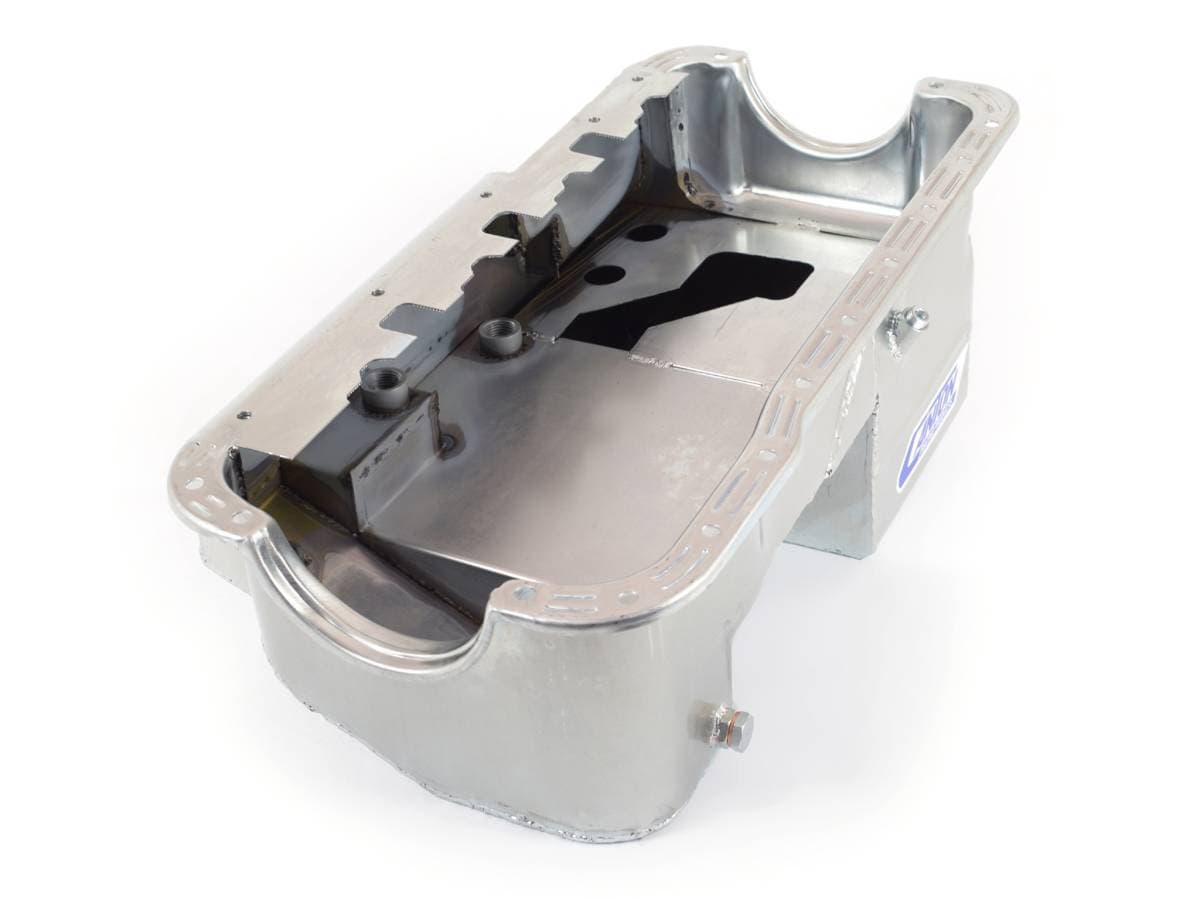

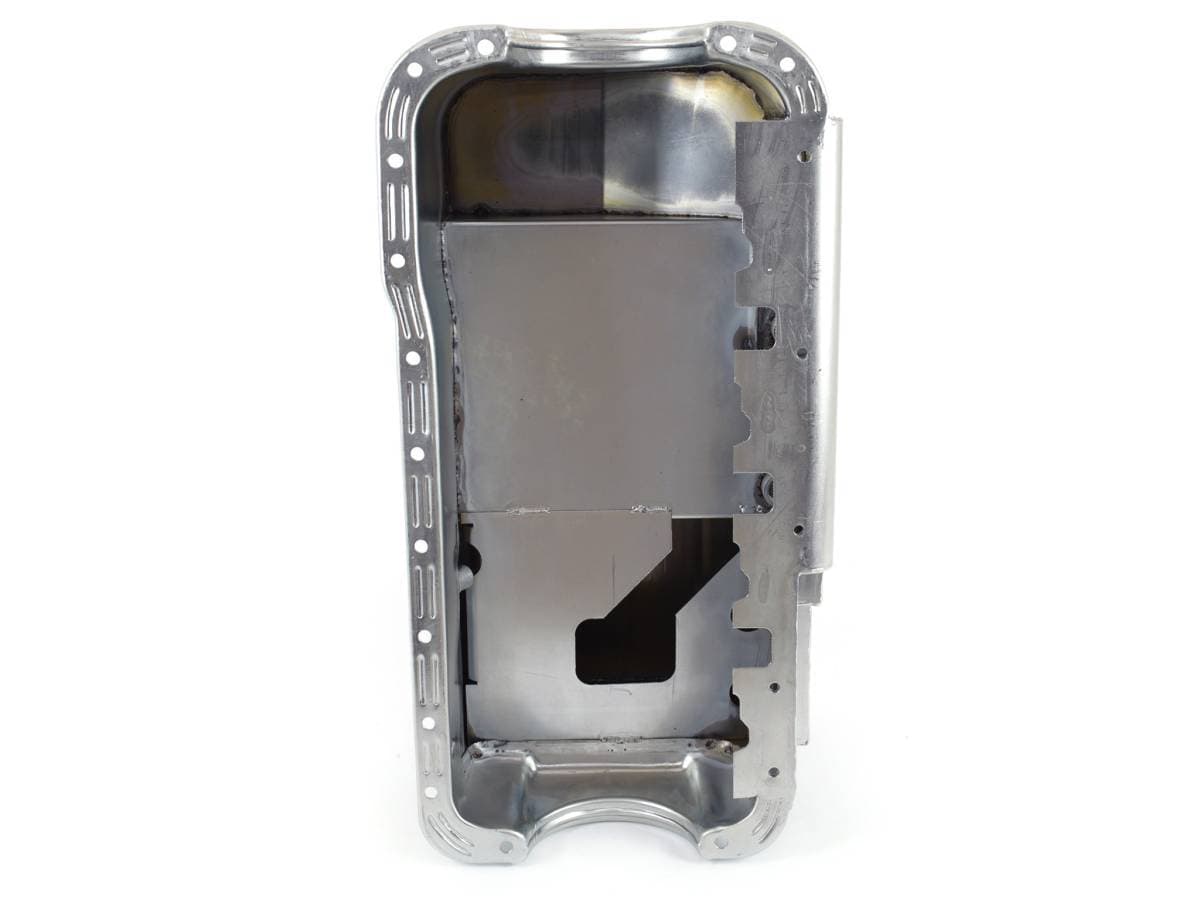

This Fox body drag race pro-style power pan is for 302 blocks. It has a 9" deep rear sump and a 7 qt. system capacity. The pan feature a slosh baffle, a provision for a pan mounted dipstick, and a magnetic drain plug. For maximum power this pan features a horsepower saving oil recovery pouch and is designed to work with our one way screen windage tray, which mounts directly to the main cap studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan.



Notes:Works with long tube headers. This pan requires our 20-850 Dipstick kit.

FEATURES: The pan feature a slosh baffle, a provision for a pan mounted dipstick, magnetic drain plug, and a Pro Style Oil Recovery Pouch

STYLE: For maximum power this pan features a horsepower saving oil recovery pouch and is designed to work with our one way screen windage tray, which mounts directly to the main cap studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan.

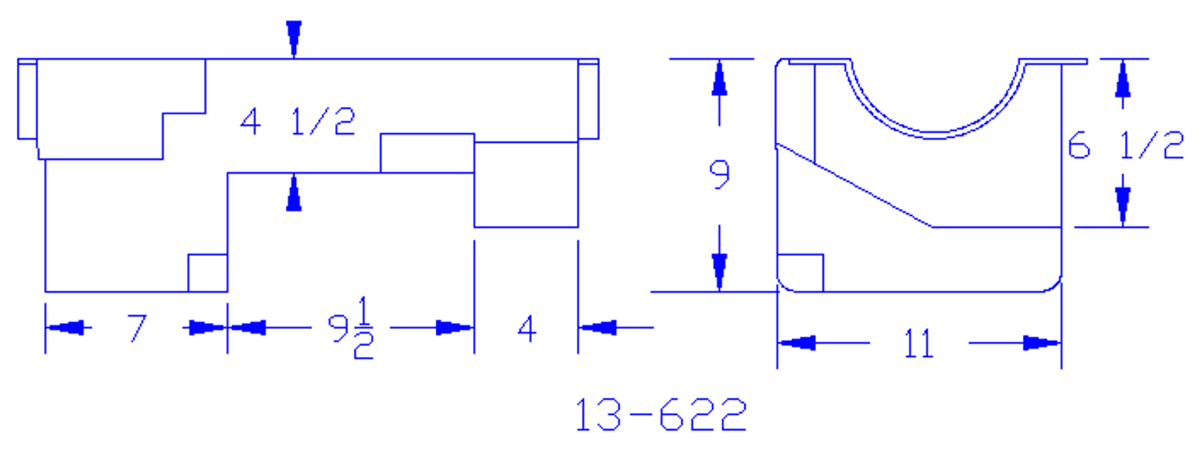

SIZE: It has a 9" deep rear sump and a 7 qt. system capacity. Works with long tube headers. This pan requires our 20-850 Dipstick kit.

OIL PAN PART #: 13-622 Canton Ford Fox Body 302 Block Rear Sump Drag Race Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 15-621 3/4" Dia. pickup.
PART #: 15-623 7/8" Dia. pickup.
PART #: 15-625 3/4" Dia. pickup for other STEEL GIRDLES and 13-622.
PART #: 15-627 3/4" Dia. pickup for CANTON MAIN SUPPORT and 13-622.
PART #: 20-950 Oil Pump pickup stud for 302 based Engines.

GASKETS:
PART #: 88-600 4 pc. gasket set for 289-302 blocks.
PART #: 88-602 1 pc. gasket for 289-302 blocks.
