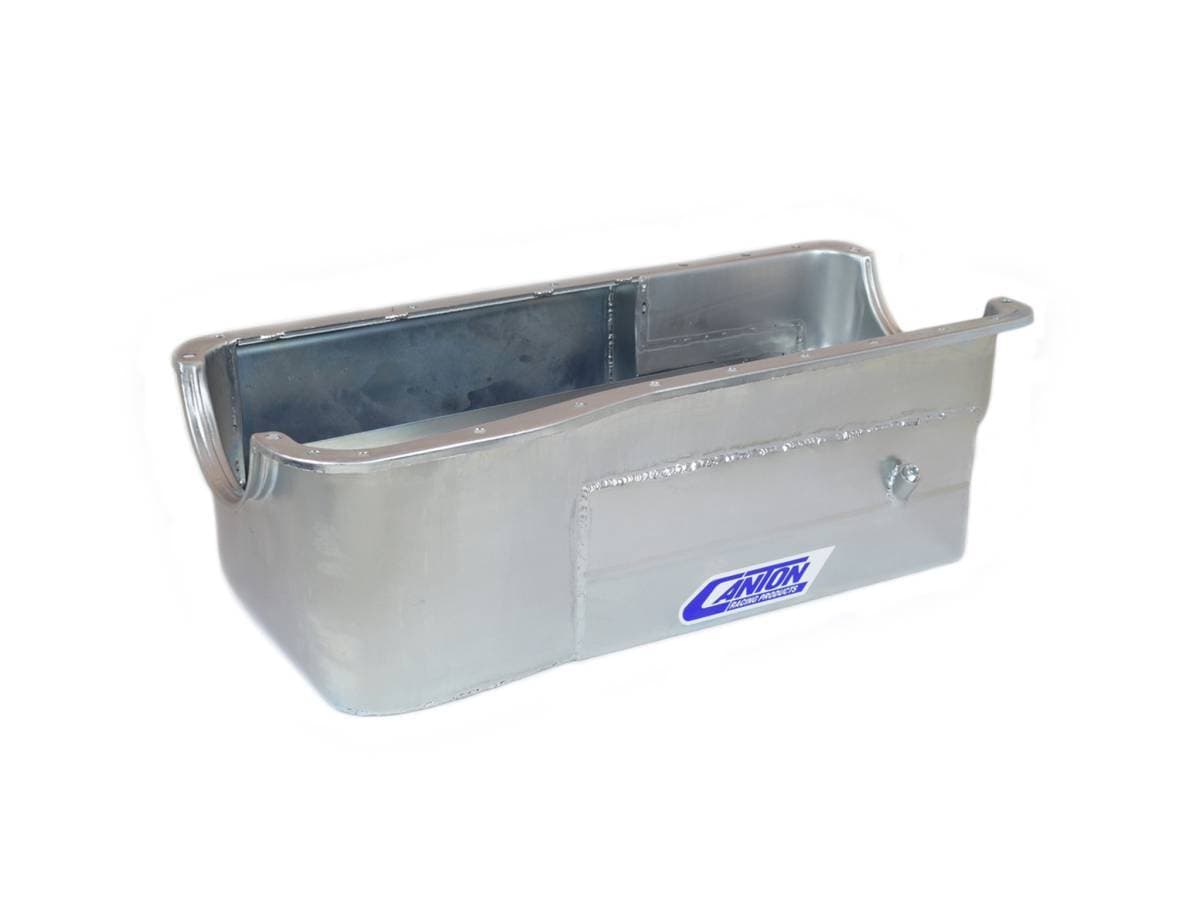

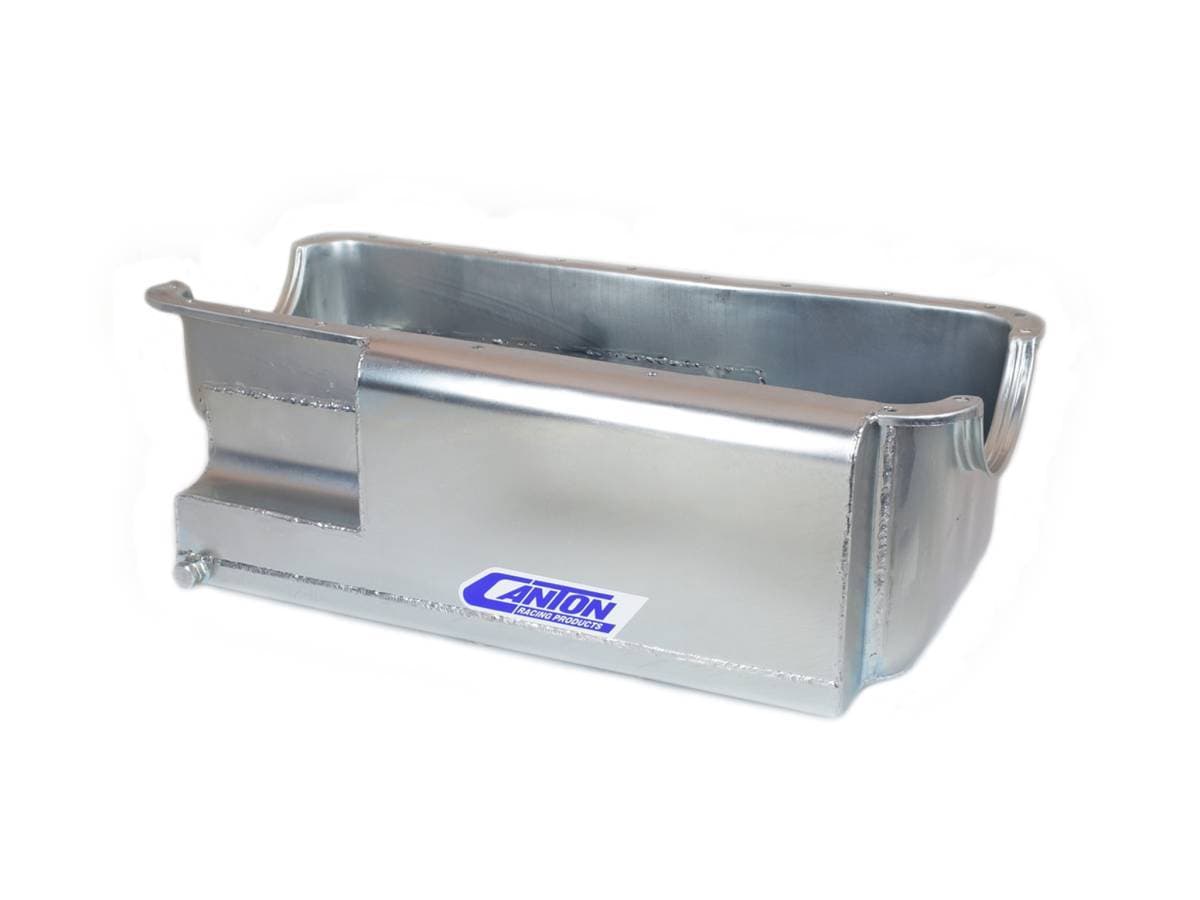

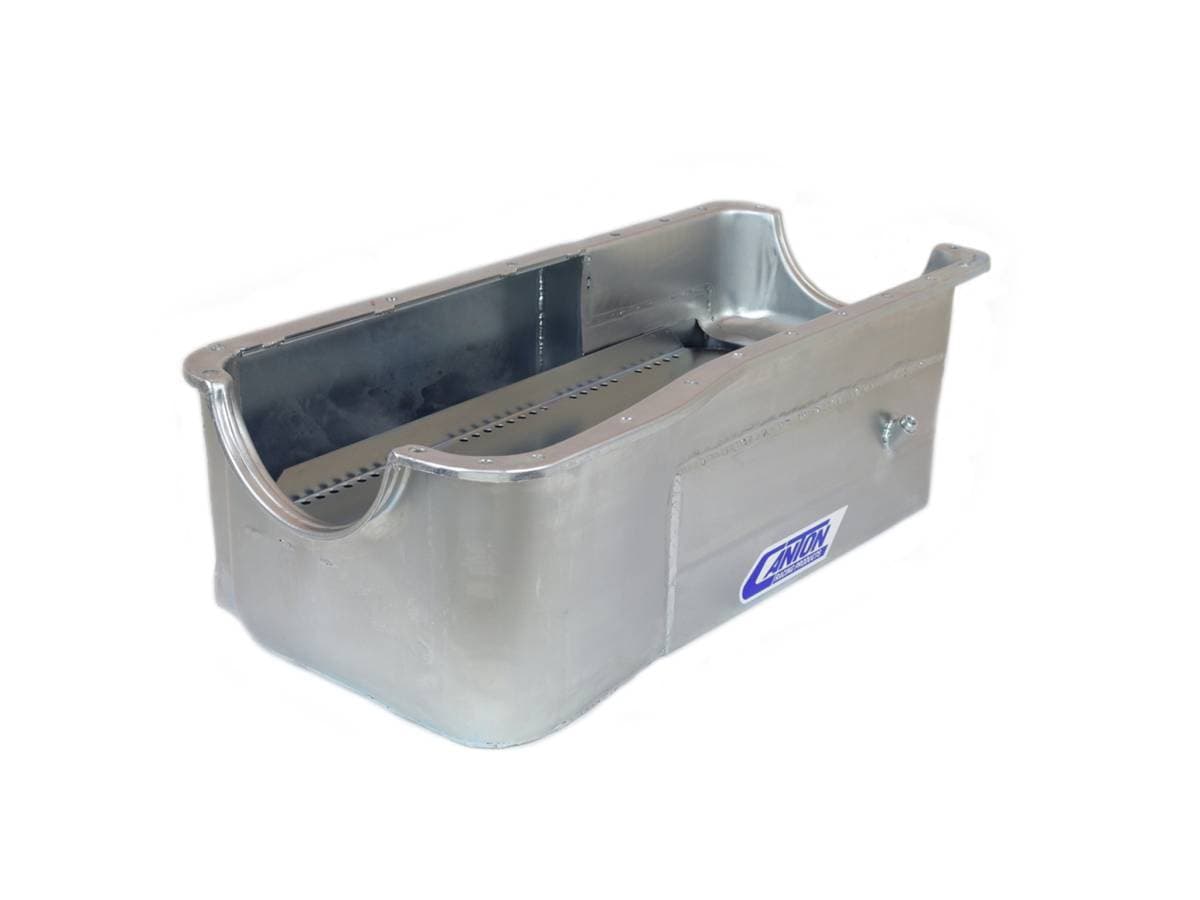

Ford Flat Bottom Pro Power 429-460 Blocks Mid Sump Drag Race Oil Pan

This 429-460 drag race flat bottom Pro Power pan is designed for chassis without x-members or steering links under the engine. It is 7-1/2" Deep in front and 8" Deep in the rear and holds 8 qts., system capacity is 9 qts. Pan features a mid sump pickup compartment with an oil pouch behind the pickup to feed oil under braking, plus triple trap door baffles, a pro-style oil recovery pouch, a provision for our pan mounted dipstick, and a magnetic drain plug. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan.




Note: This pan requires our 13-769 pickup.

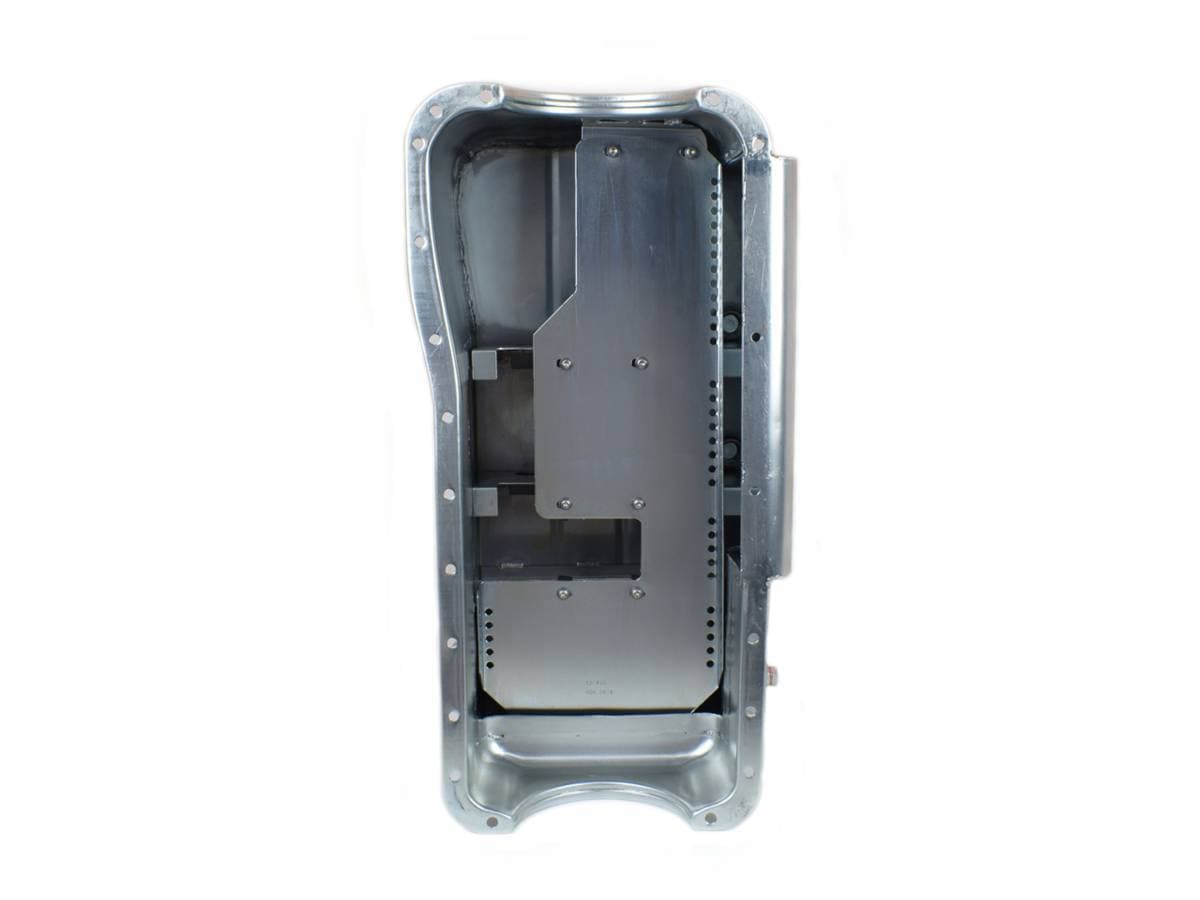

FEATURES: Pan features a mid sump pickup compartment with an oil pouch behind the pickup to feed oil under braking, plus triple trap door baffles, a pro-style oil recovery pouch, a provision for our pan mounted dipstick, and a magnetic drain plug.

STYLE: The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Pro Power pan is designed for chassis without x-members or steering links under the engine.

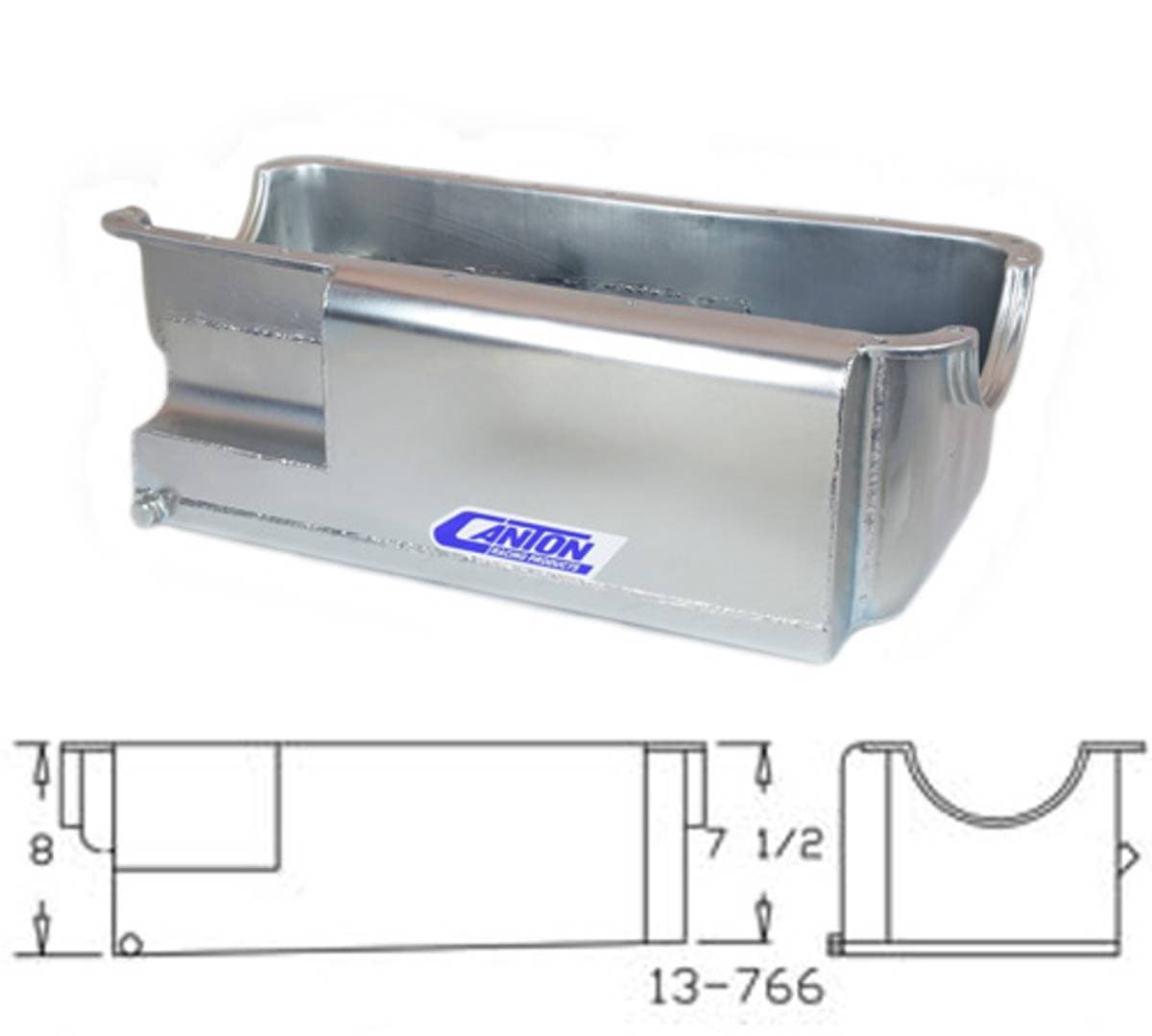

SIZE: It is 7-1/2" Deep in front and 8" Deep in the rear and holds 8 qts., system capacity is 9 qts.

OIL PAN PART #: 13-766 Canton Ford Flat Bottom Pro Power 429-460 Blocks Mid Sump Drag Race Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 13-769 - 7/8" Dia. Pickup.

GASKETS:
PART #: 88-750 4 pc. gasket set for 351W blocks.

DIPSTICK:
PART #: 20-850 - Dipstick kit
