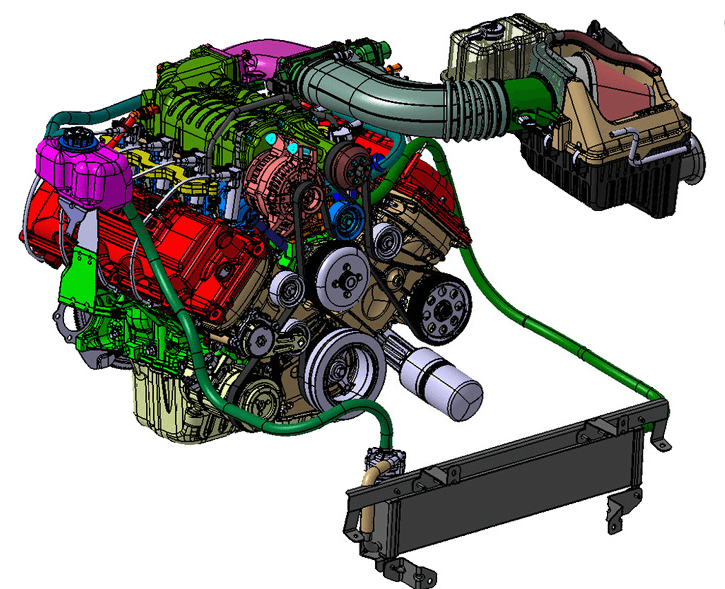

This is a Roush Phase 2 Air-to-Water Intercooled Supercharger Complete System with a R2300 TVS twin screw blower which will get you a 175 horsepower and 155 ft/lb torque gain on just 7 psi of boost! This kit is complete with fuel system upgrades and Roush PCM Flash voucher card as long as the truck is stock or has a catback only. Custom tuning required for modified trucks, and Roush Diagnostic Tool required for PCM voucher card.
This F-150 Phase 2 supercharger kit is calibrated by ROUSH to deliver an estimated 590 horsepower to the 2011-2014 Ford F-150 6.2L-2v V8 powertrain.
The ROUSH 2011-2014 F-150 Calibrated Supercharger Kit is part of the TVS (Twin Vortices Series) line of superchargers developed by ROUSH that have raised the bar for performance and reliability. This is the same line that has been used and proven for years in ROUSH-built vehicles.
The ROUSH R2300 supercharger features Eaton's new cutting edge Twin Vortices Series technology (TVS) rotating assembly that delivers more power and better fuel economy in a smaller package for uncompromising performance.
There are many options available for Roush kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.
DETAILS:
Horsepower gain: 175+
R2300 2.3L TVS supercharger head unit, 7 psi
Highly effective air-to-water intercooling
Fuel charging assembly with Roush upper and lower aluminum intake manifolds

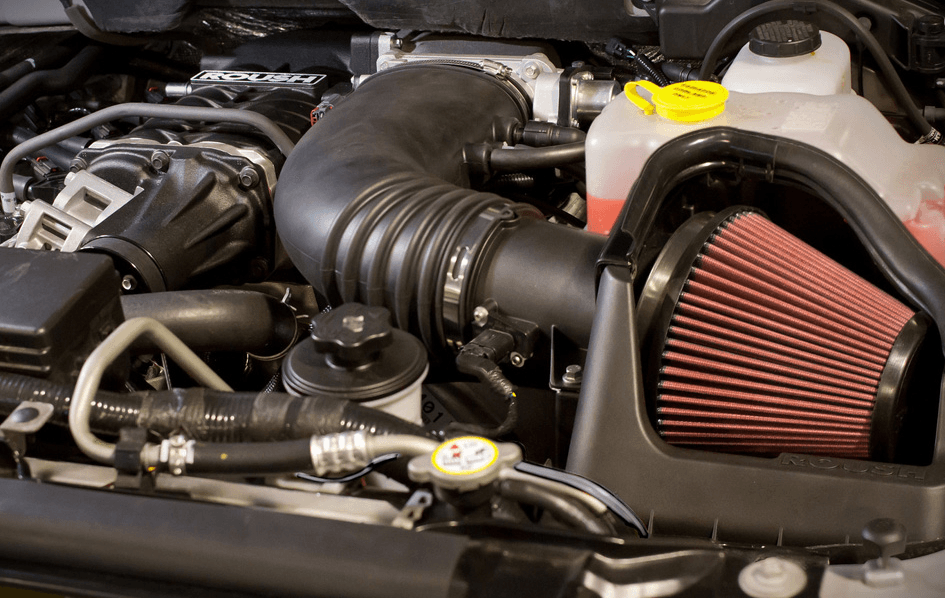

High flow cold air induction system with 100mm MAF tube
Twin 60mm Throttle Body
High flow fuel rail with 47lb injectors
Belt Drive System: Factory 6 rib
Fuel Pump Supplied: Not Required
Fuel Injectors Supplied: 52 lb/hr
Computer/Ignition Mods.: Roush PCM Flash voucher card, Roush Diagnostic Tool Required (not included)
The coolest charge air temperatures and largest power gains available
3 year/36,000 mile parts warranty
Easy and quick installation
50 State Legal CARB EO #D-418-23
System is 100% complete with OEM quality and appearance
The ROUSH R2300 TVS supercharger is a roots-type, positive displacement supercharger that features twin four-lobe rotors that are twisted 160-degrees.
By comparison, the original Eaton supercharger rotating assembly featured three lobes twisted 60 degrees. The fourth lobe and added twist, when combined with NEWLY redesigned air inlet and outlet ports, greatly enhance thermal efficiency, deliver higher volumetric capacity, enable higher operating speeds, creates a smoother, more efficient flow of air into the engine and has improved noise and vibration characteristics.
Unlike turbo-charging, the ROUSH R2300 TVS supercharger provides instant throttle response and can generate increased power through the engine’s entire powerband, producing 590 horsepower.
The supercharger design runs on the first-sheave FEAD allowing ROUSH to integrate a heavy duty tensioner designed to handle the increased load of the R2300 supercharger and applying the load closer to the #1 main bearing, thus increasing durability.
TREperformance is an Authorized Priority Dealer of Roush Performance.
36 Month warranty direct from Roush
Custom made and shipped direct from Roush in 3-5 business days!
