Ford F-150 Coyote 5.0L 2019-2020 Edelbrock Stage 1 Complete Supercharger Intercooled Kit Without Tune

Edelbrock Stage 1 Air-to-Water Intercooled Supercharger Complete System with a TVS 2650 twin screw blower which will get you 601 rear wheel horsepower! This kit is 100% complete with programming for stock vehicles or those with a catback only, just bolt on and drive! If you have other modifications such as headers, midpipe, camshaft, etc. then look at the Tuner kits.

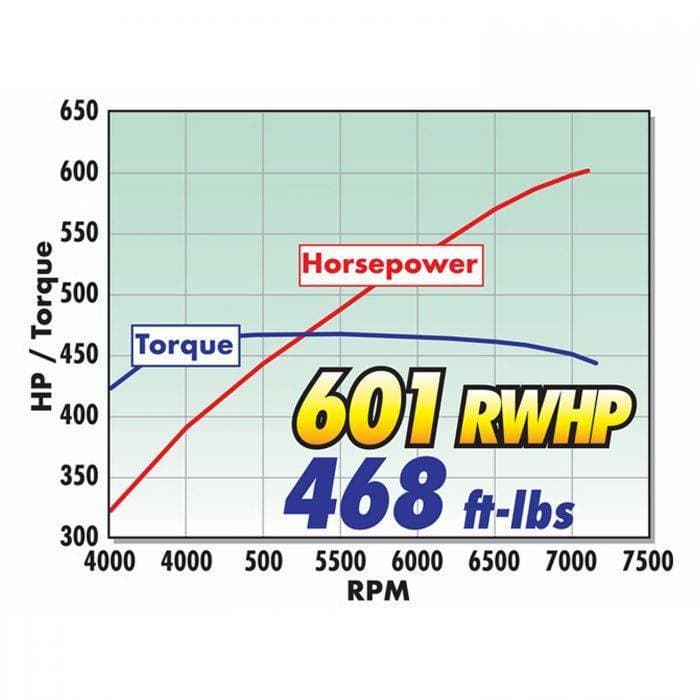

Edelbrock has released a new Edelbrock Supercharger System W/O TUNER #158120 for the 2019 Ford F150 truck powered by the 5.0L Ti-VCT Coyote V8 engine. This kit produces 601 horsepower with 468 ft-lbs of torque. This Edelbrock Supercharger has a self-contained lubrication system with a 100,000-mile service interval and comes finished in a durable black powder-coating that blends nicely into the engine compartment. Each kit includes a complete set of preformed hoses, hardware and a full-color manual that provides clear step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by our industry-leading 3-year/36,000-mile warranty.

There are many options available for Edelbrock kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

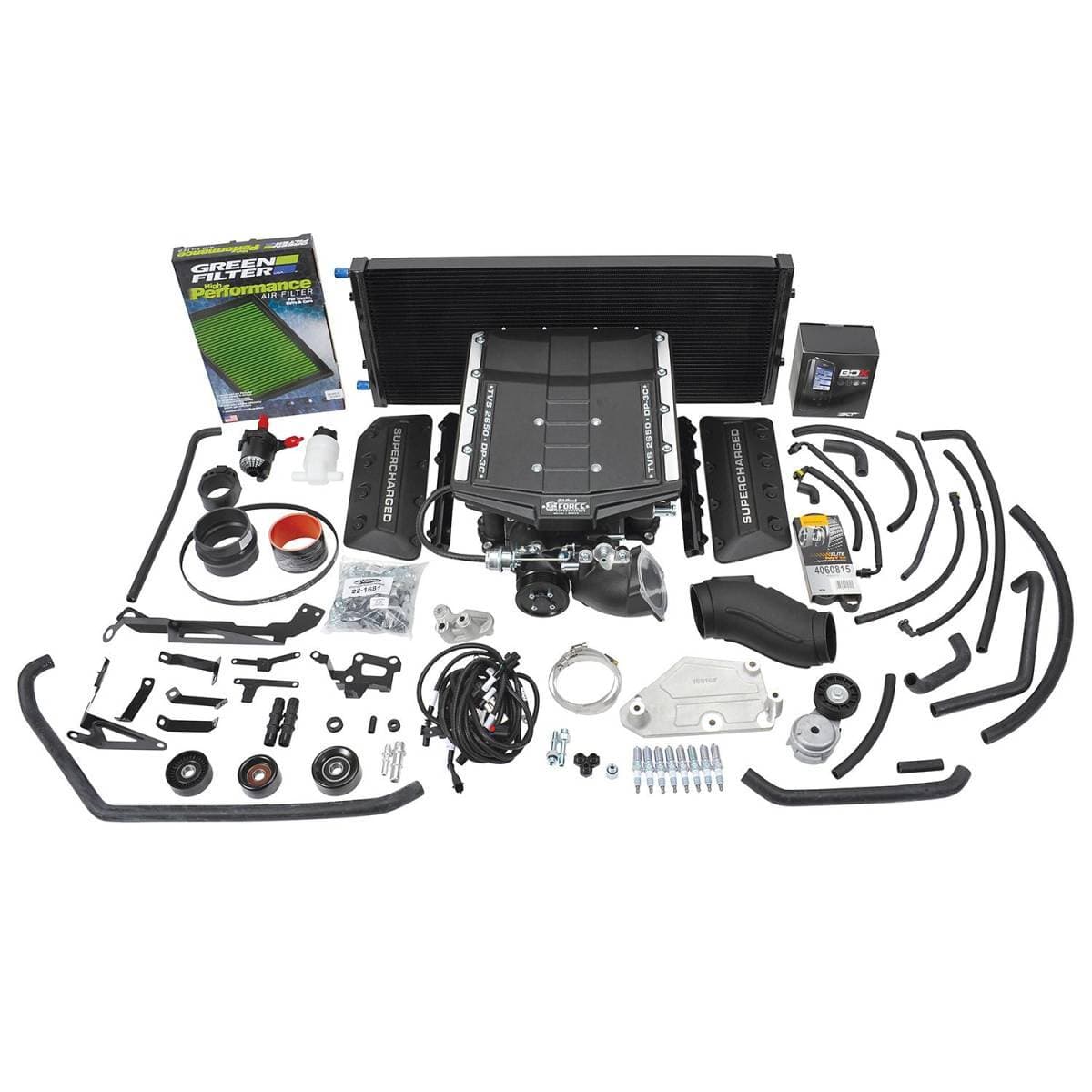

These supercharger kits are the most complete available, including everything needed for installation. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self contained lubricating system. You do not need to make any major modifications or purchase special tools or other parts. Many customers install in their garage or driveway over a weekend.

The Edelbrock Supercharger System part #158120 is designed for use on a 2019-2020 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #158120 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. Which can be requested by contacting the Edelbrock calibration team at calibration@edelbrock.com. Tunes for 91 and 93 octane fuels are available upon request. This system will produce approximately 601whp 468wtq using 93 octane.

DETAILS:
Horsepower gain: 601 hp
Gen IV 2650 TVS supercharger head unit
Highly effective air-to-water intercooling
Belt Drive System: 6 rib
Supercharger Pulley Size: 3.5 in
Fuel Pump Supplied: Not Supplied
Fuel Injectors Supplied: Not Supplied
Computer/Ignition Mods.: Not Supplied
The coolest charge air temperatures and largest power gains available
3-Year/36,000-mile Powertrain Warranty
Easy and quick installation
OEM quality and appearance

Unlike turbocharging, the Edelbrock 2650 TVS supercharger provides instant throttle response and can generate increased power through the engine’s entire power band.

TREperformance is an Authorized Priority Dealer of Edelbrock Superchargers.
36 Month warranty direct from Edelbrock
