There are many options available for Edelbrock kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

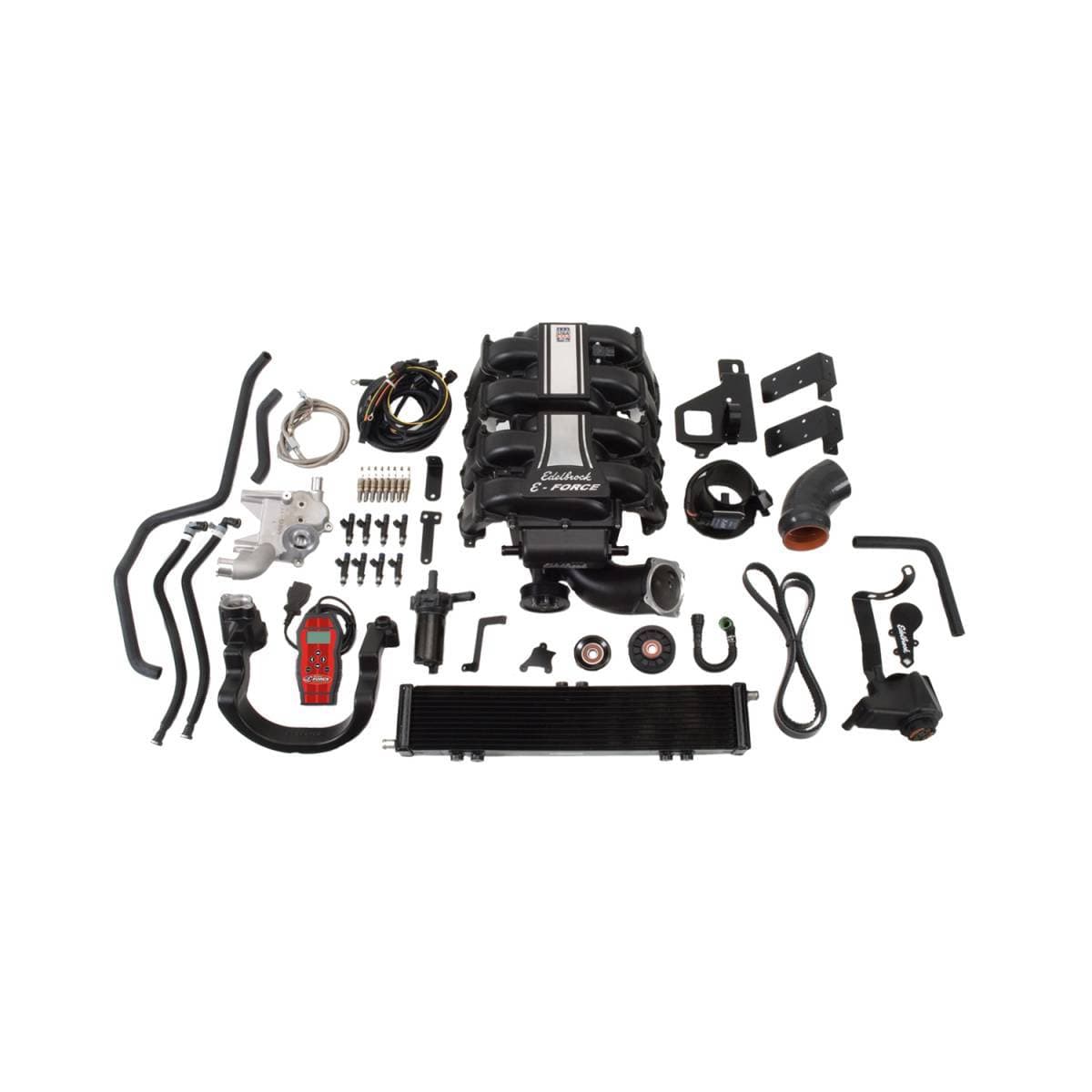

These supercharger kits are the most complete available, including everything needed for installation. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self contained lubricating system. this kit requires a custom tune done locally after you install the kit, and does not include a programmer.
The Edelbrock supercharger Stage 1 System part #15830 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 478 horsepower and 422 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1583 system is emissions legal and provides the best combination for your daily driver. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
DETAILS:
Horsepower: 478hp
Eaton Gen VI 2300 TVS supercharger head unit
Highly effective air-to-water intercooling
Belt Drive System: 6 rib
Supercharger Pulley Size: 3.25 inch
Fuel Pump Supplied: Not Supplied
Fuel Injectors Supplied: 41 lb/hr
Computer/Ignition Mods.: Not Supplied
The coolest charge air temperatures and largest power gains available
3-Year/36,000-mile Powertrain Warranty
Easy and quick installation
System is 100% complete with OEM quality and appearance
Unlike turbocharging,the Eaton Gen VI 2300 TVS supercharger provides instant throttle response and can generate increased power through the engine’s entire power band.
TREperformance is an Authorized Priority Dealer of Edelbrock Superchargers.
36 Month warranty direct from Edelbrock
