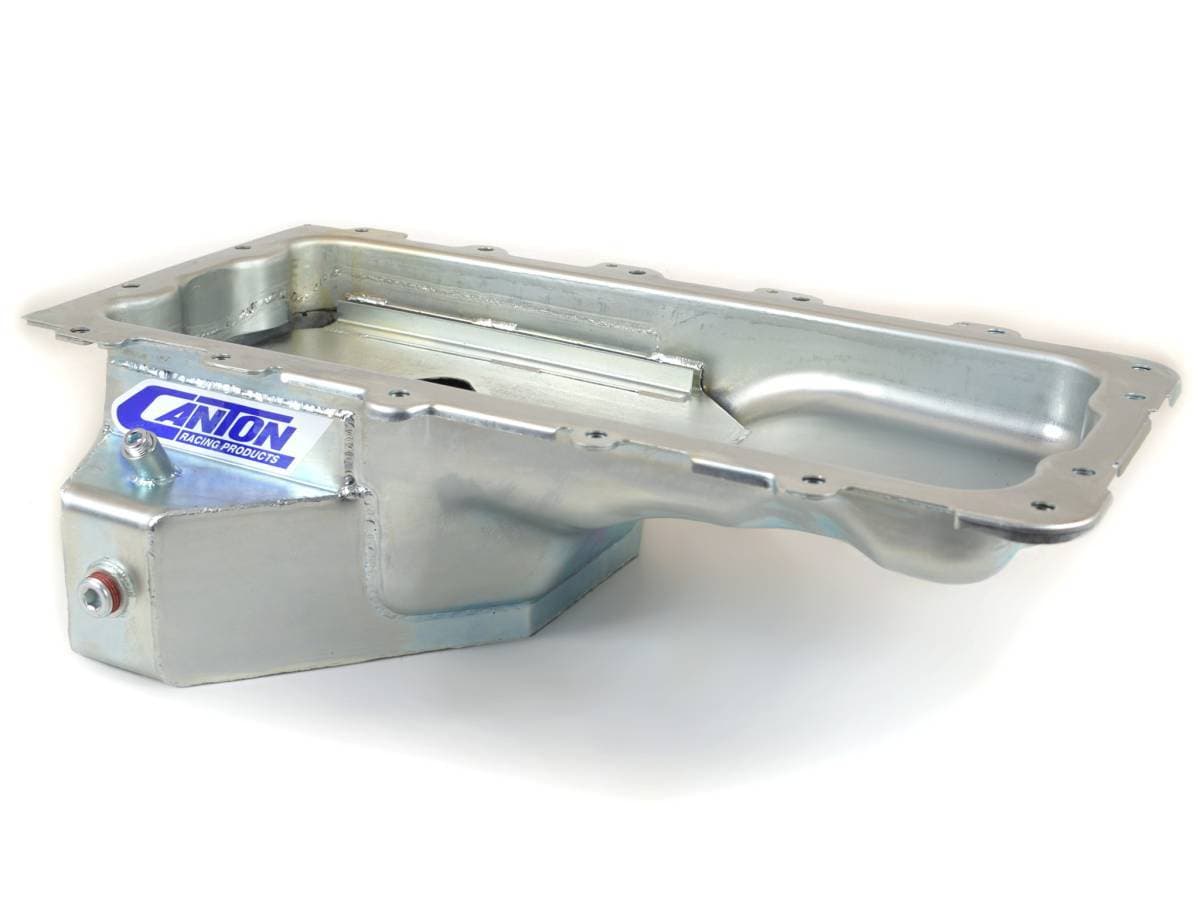

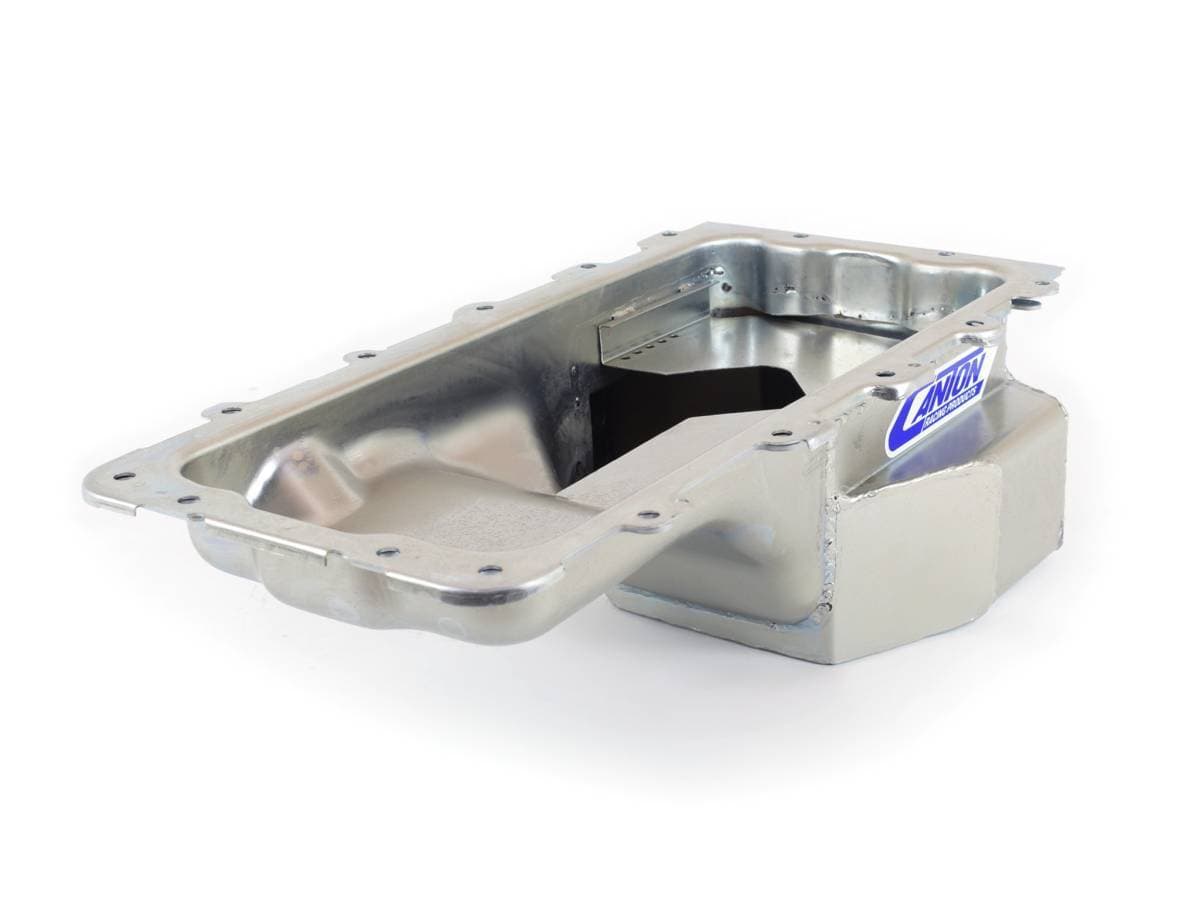

Ford 4.6L/5.4L Street Rear T Sump Oil Pan

This T style modular rear sump oil pan is designed for Ford 4.6L/5.4L blocks in 1996-2004 & 2005-up Mustangs. It has 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity.



Note: Use Your OEM pickup for this pan.

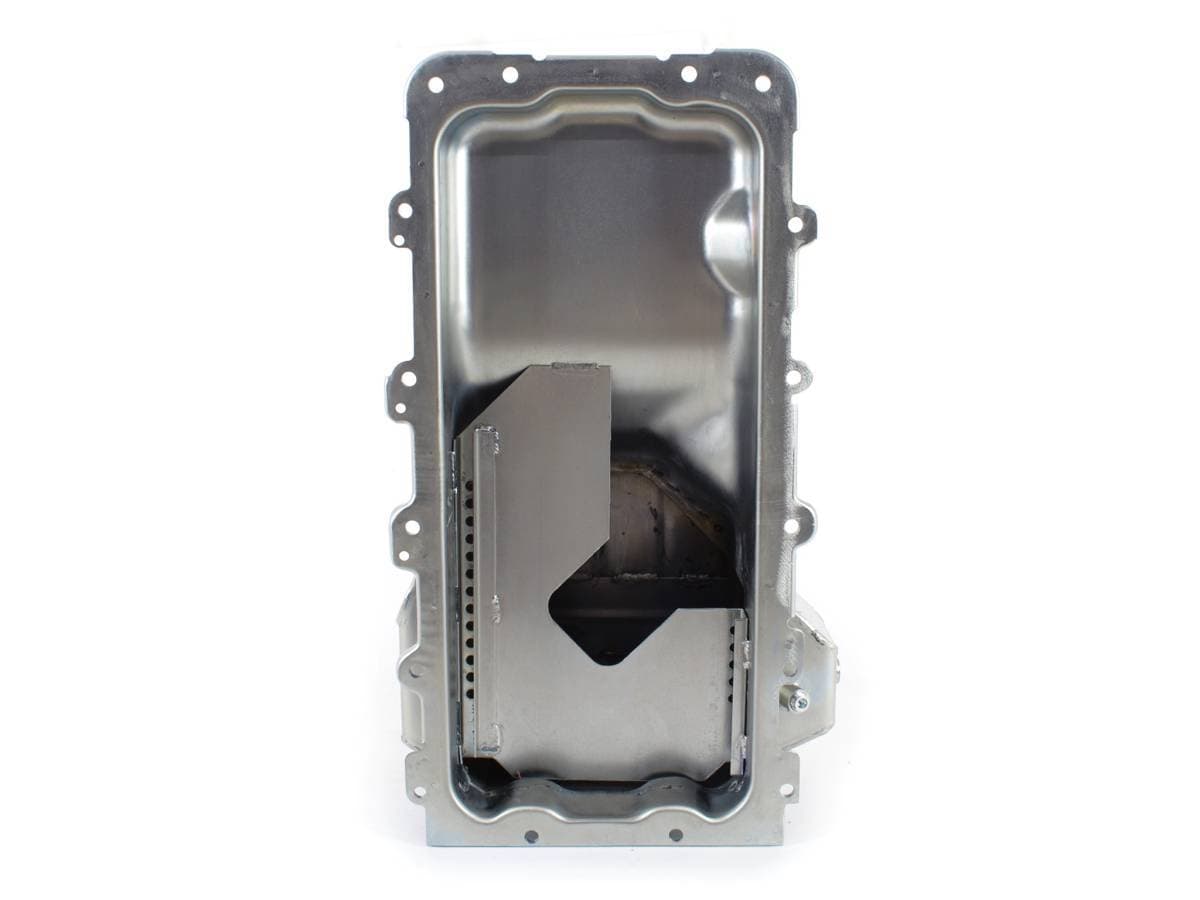

FEATURES: Slosh Baffle, 1/2" NPT Temperature Bung, Magnetic Drain Plug, Provision for a pan mounted dipstick

SIZE: 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity.

OIL PAN PART #: 15-780 for Ford 4.6L/5.4L Street Rear T Sump Oil Pan

RECOMMENDED ACCESSORIES:
PART #: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
PART #: 88-780 - Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
