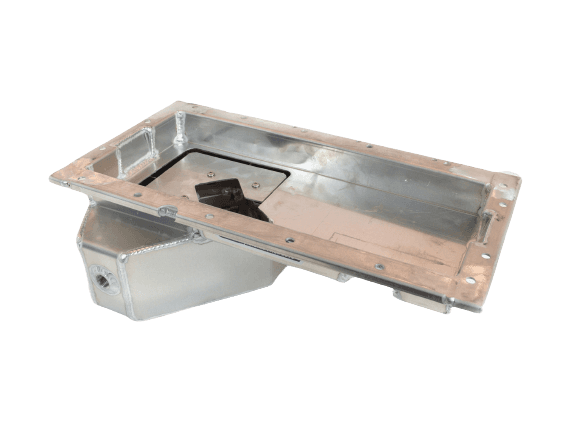

Ford 4.6L/5.4L Modular Aluminum Rear Sump Drag Race Oil Pan

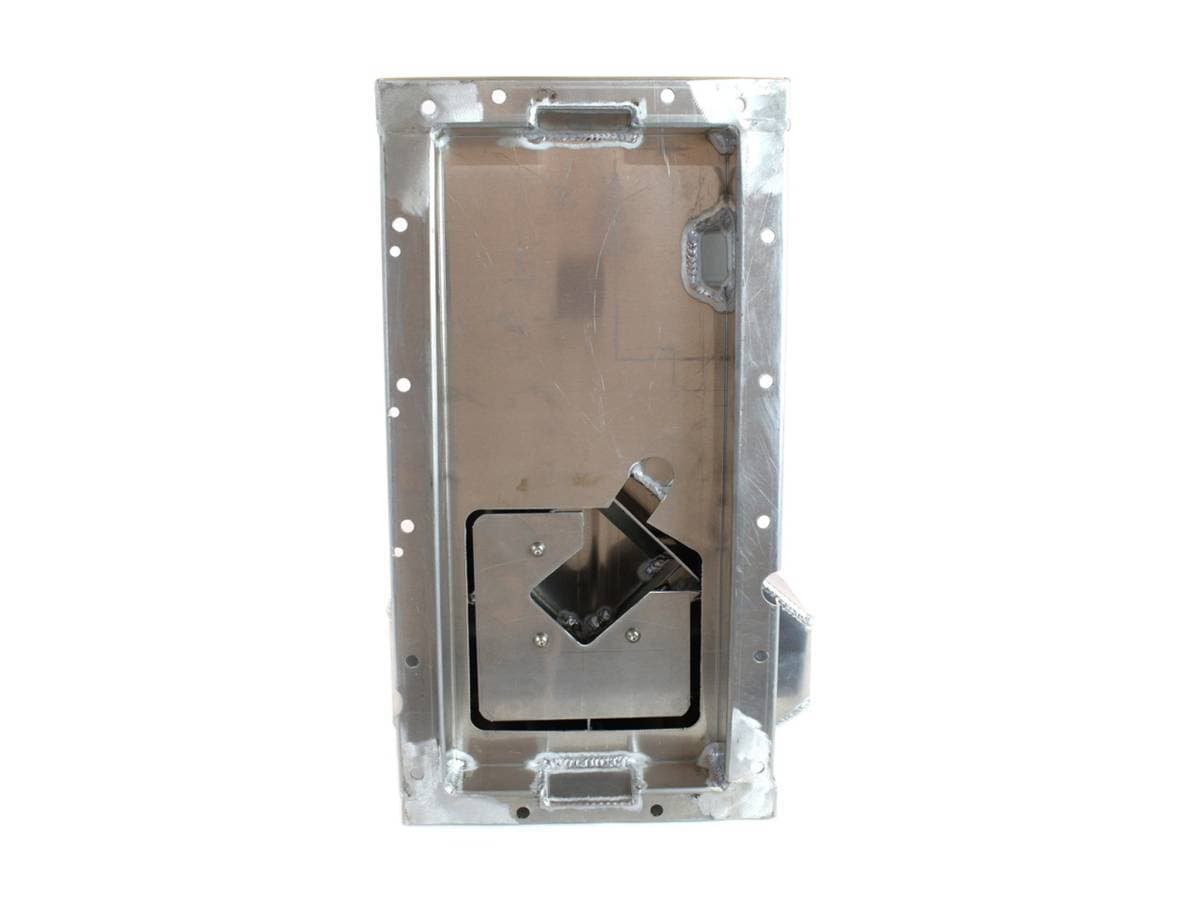

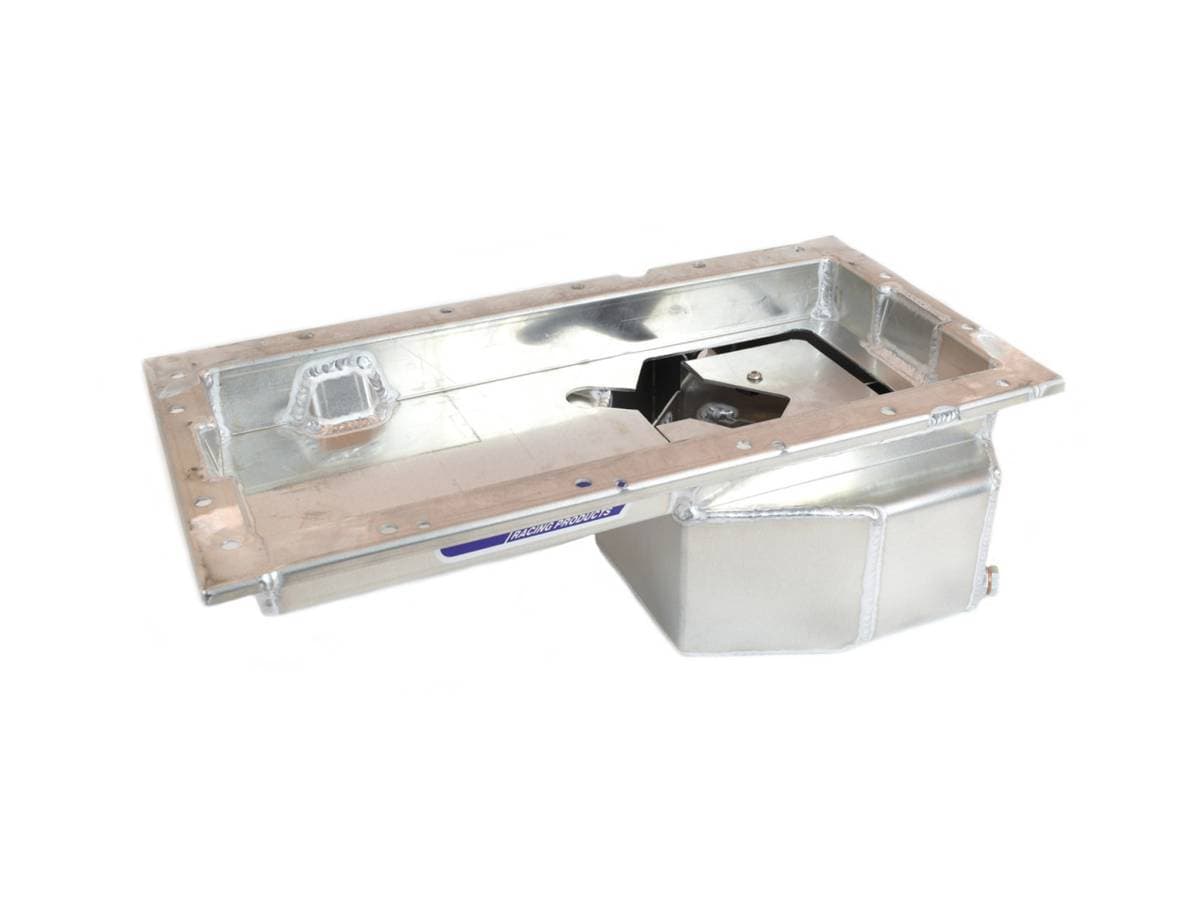

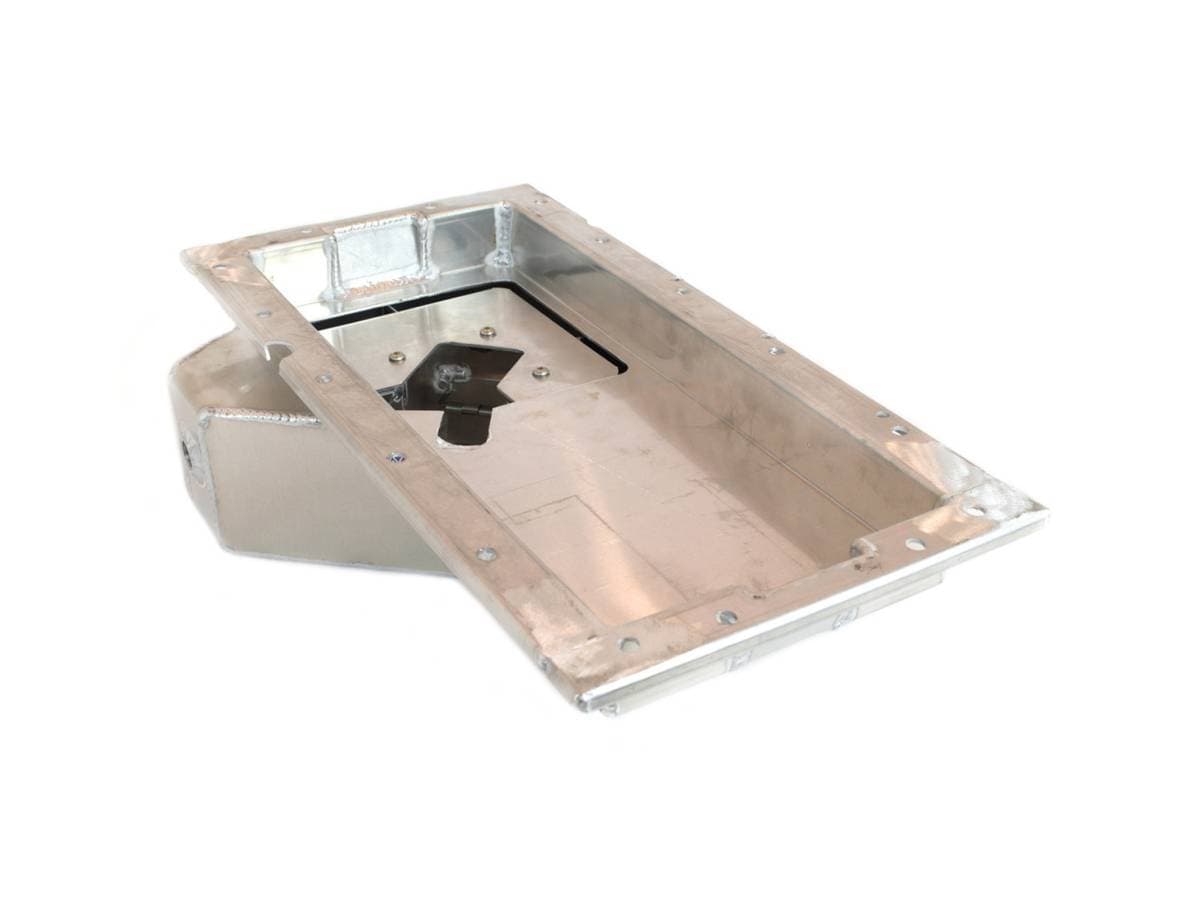

This rear sump aluminum oil pan is for Ford 4.6 / 5.4. modular engines. The "T" style sump is 6-1/4" deep, 12-3/4" wide by 9-1/4" long with a 7 quart system capacity. It features a track proven road race baffle assembly with four trap doors and runners to direct oil to the pickup under all conditions, bolt in slosh baffle, temperature fitting, and magnetic drain plug.



Note: Use 2V or 4V factory pickups for ‘96-’04 Mustang or 2V pickup for ‘05-up Mustang.

FEATURES: It features a track proven road race baffle assembly with four trap doors and runners to direct oil to the pickup under all conditions, bolt in slosh baffle, temperature fitting, and magnetic drain plug.

STYLE: For maximum power this pan features a horsepower saving oil recovery pouch.

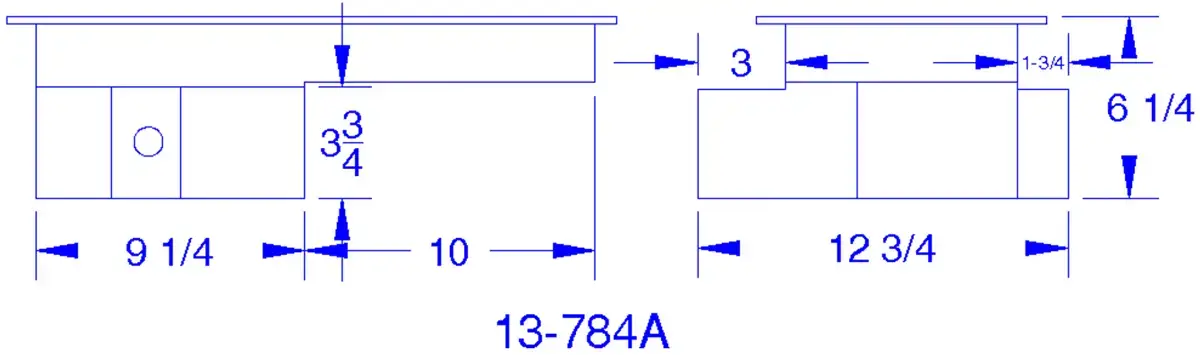

SIZE: The "T" style sump is 6-1/4" deep, 12-3/4" wide by 9-1/4" long with a 7 quart system capacity.

OIL PAN PART #: 13-784A Canton Ford 4.6L/5.4L Modular Aluminum Rear Sump Drag Race Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: Use 2V or 4V factory pickups for ‘96-’04 Mustang or 2V pickup for ‘05-up Mustang.

GASKETS:
PART #: 88-780 Modular Ford 4.6-5.4L Oil Pan Gasket, one piece design with composite material.
