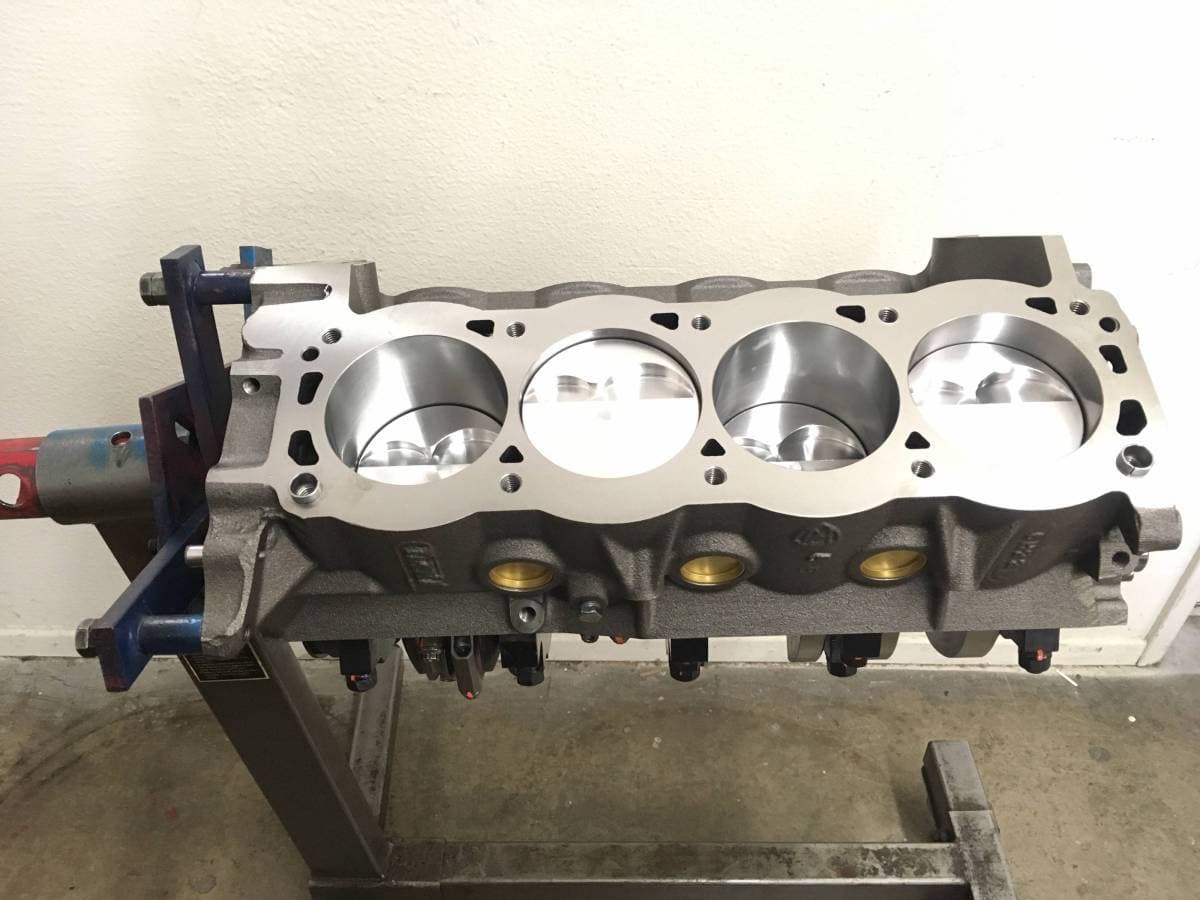

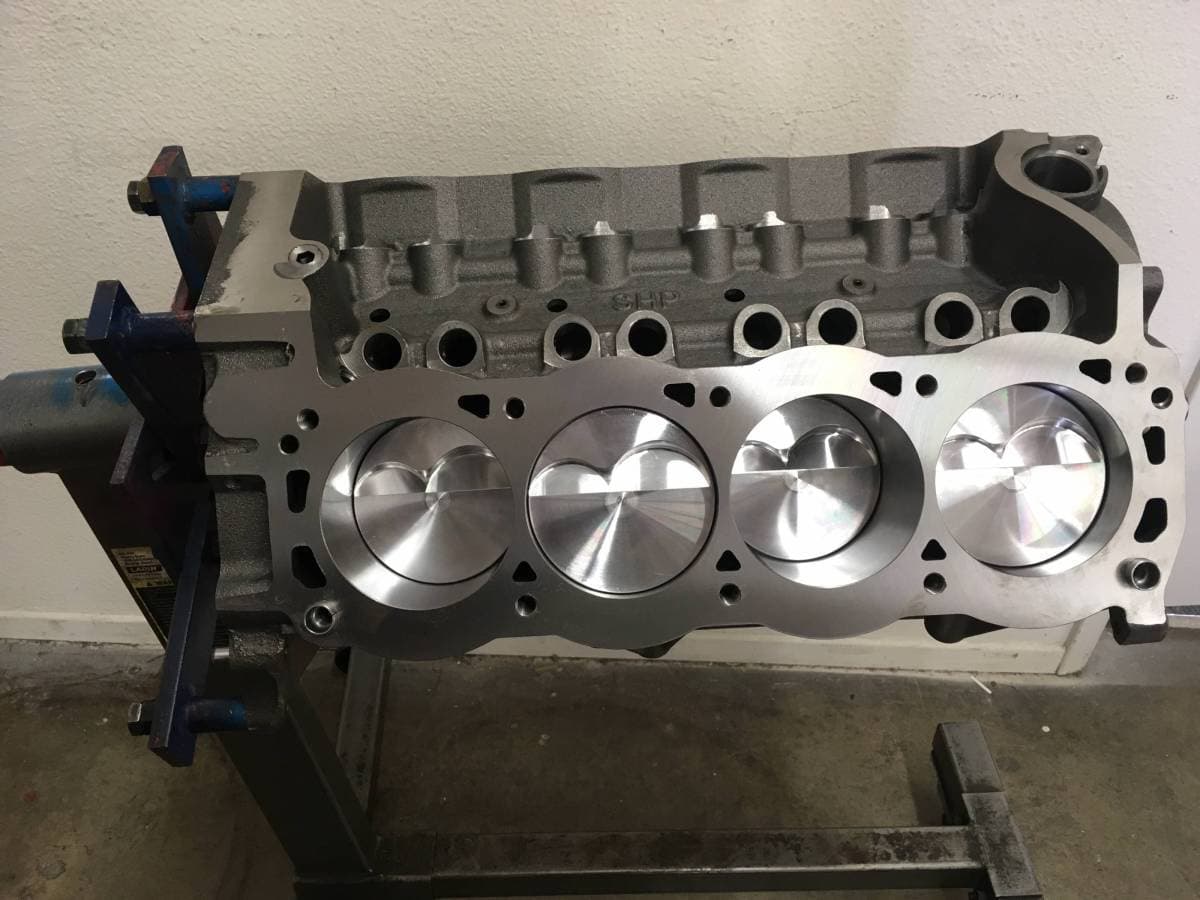

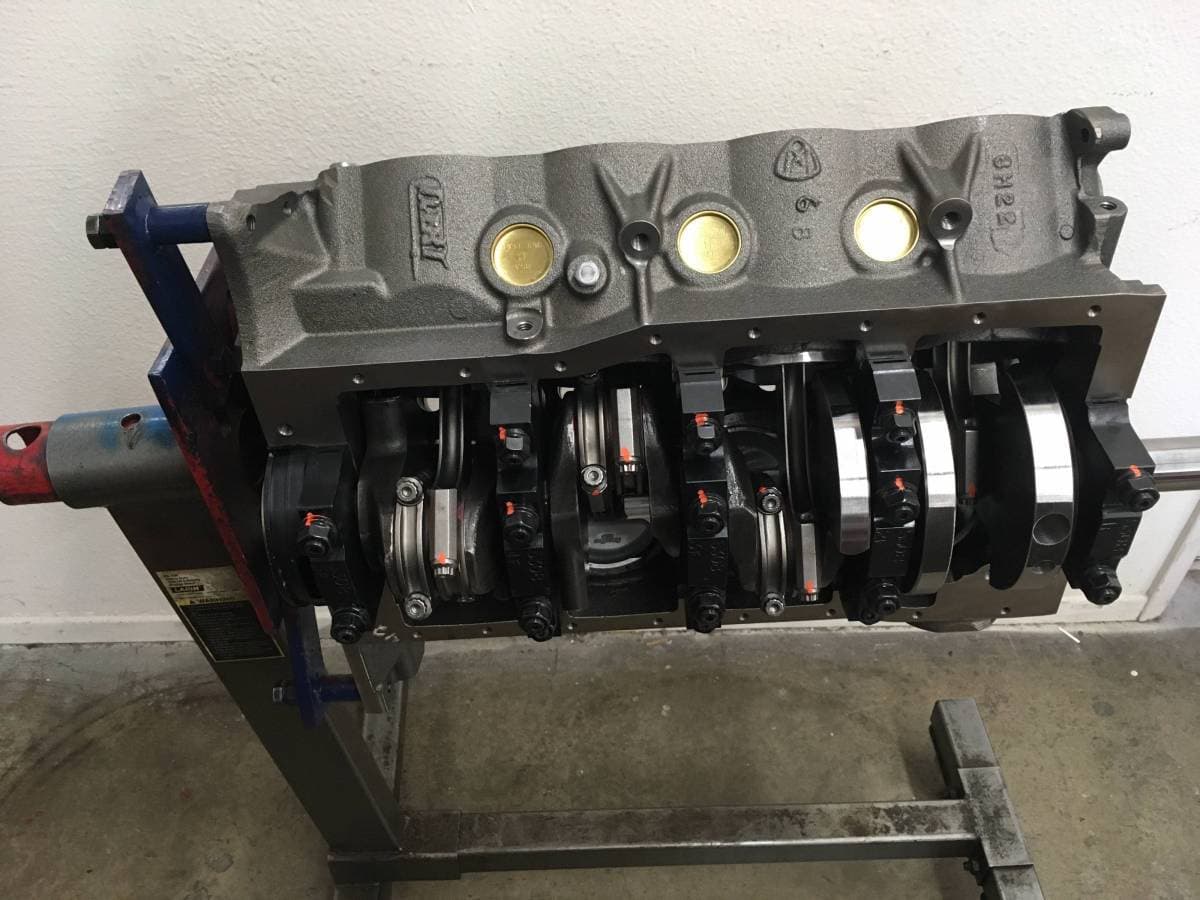

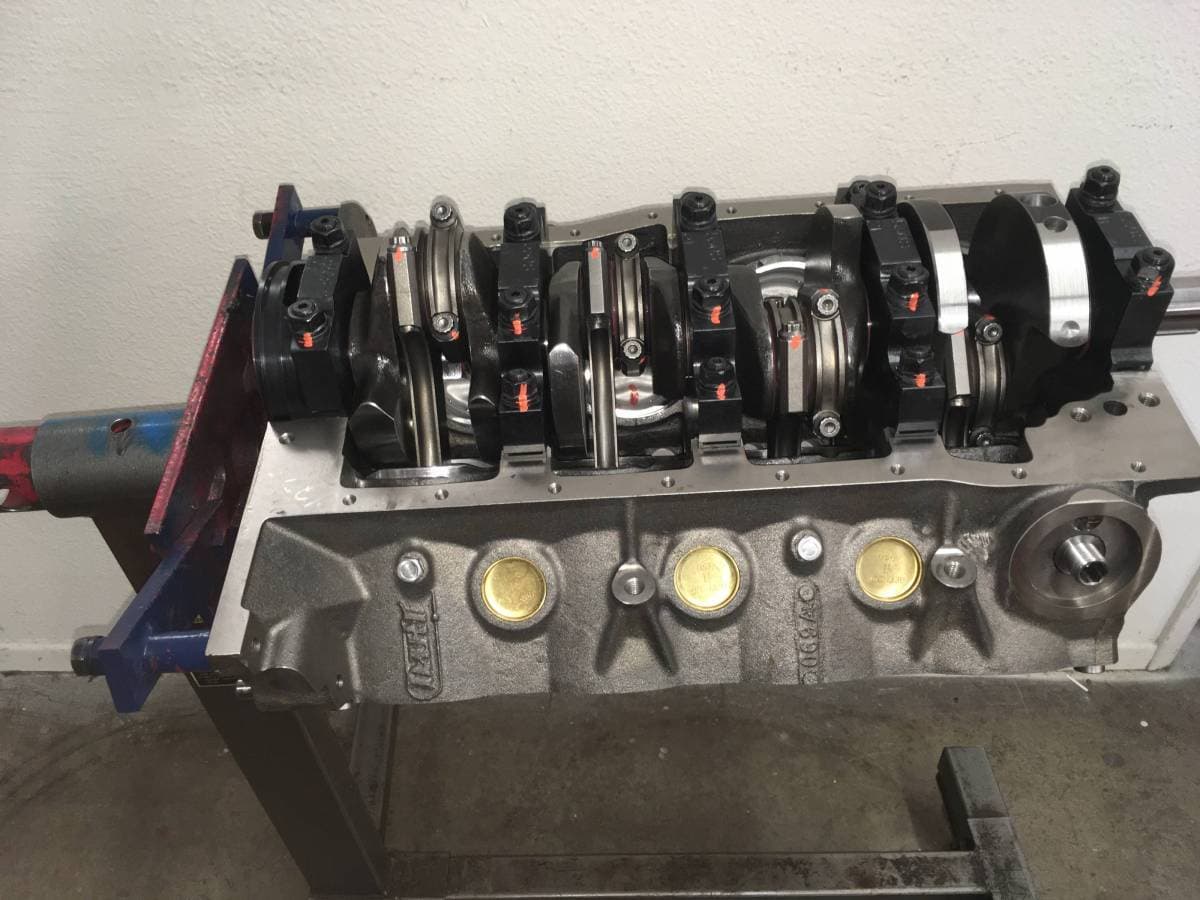

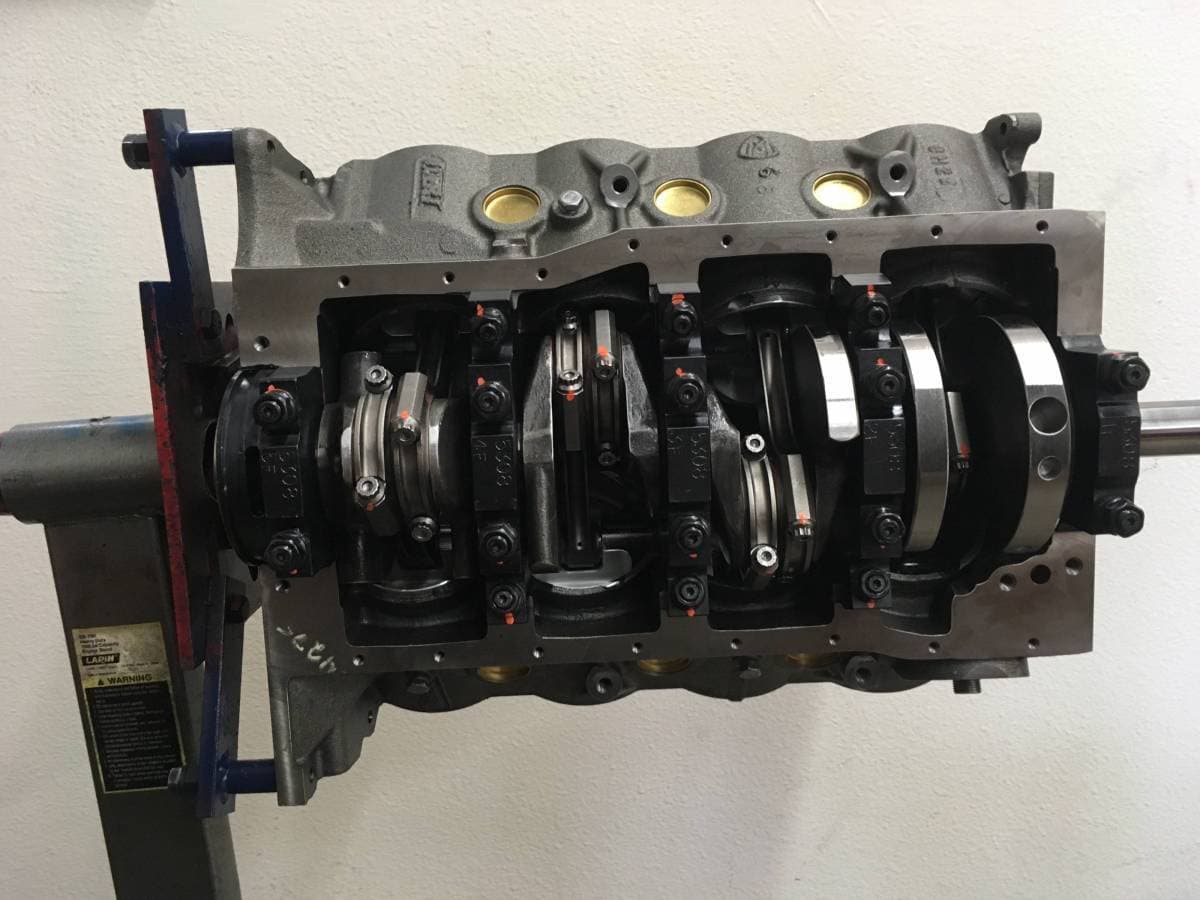

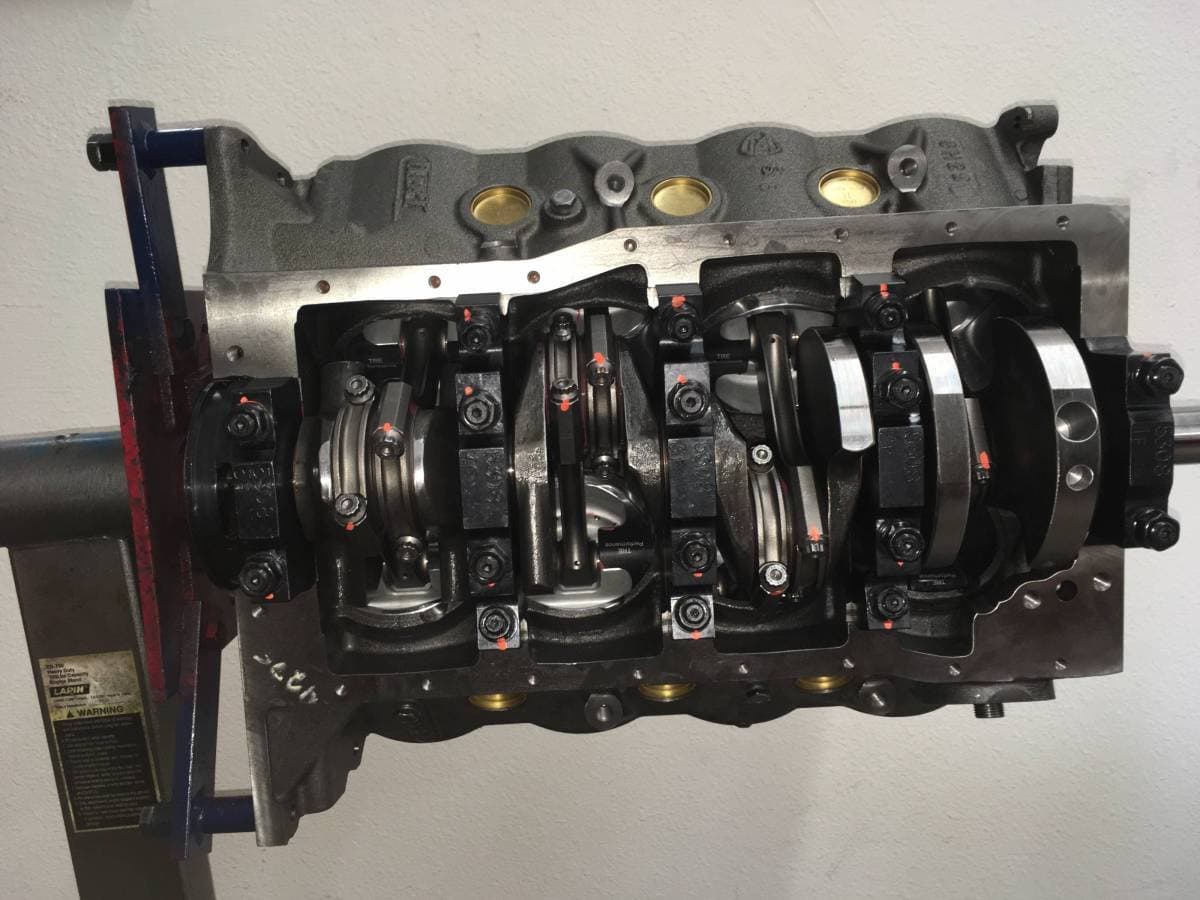

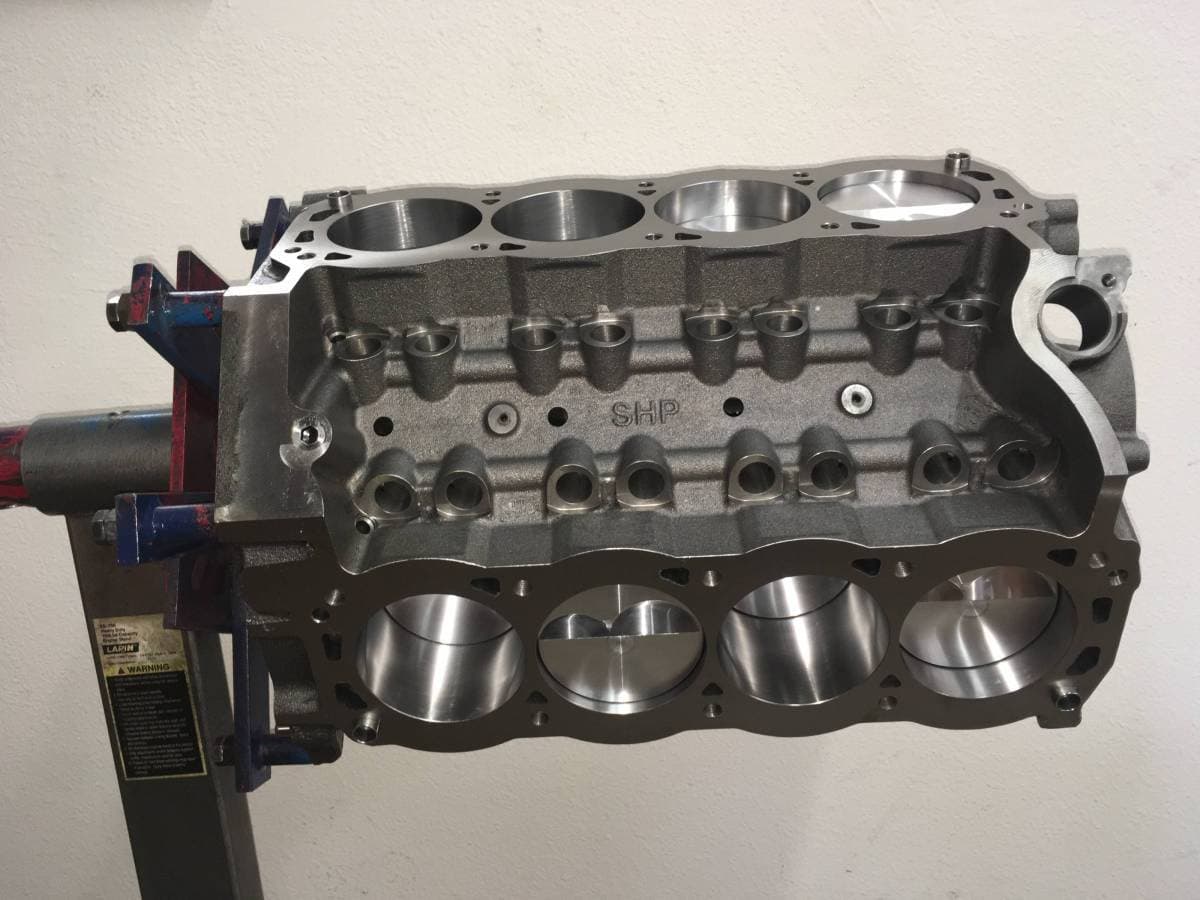

Our 347ci Dart Short Block is designed for vehicles looking for a strong foundation for high horsepower. This short block is balanced to 28oz and ready for your big horsepower street or race car. The extra strength of this setup relies upon a scat 4340 forged steel crankshaft and set of 4340 forged steel H beam rods with arp2000 capscrews along with the Dart SHP 4 bolt main 302 block. This is the premium 4 bolt iron block available for 302 based motors and can handle upwards of 1200hp with all the parts included. Rings are gapped for boost. A full "blue print" build sheet with all clearances is included. The block has been fully machined after receipt from dart including: bore/hone with torque plates, square deck to the right rms for MLS gaskets, and a full deburr is done on the whole block to take away any sharp corners as well as at the top and the bottom of the cylinders. Finally all plugs are installed with sealant and a new oil filter adapter and Mahle rear main seal is installed.
Long Blocks: There is a $500 charge to assemble anything else you buy from us to your short block. Please ask if you are interested in anything you don't see! Block: 4.125" bore TREperformance race prepped Dart SHP 4 bolt main 302 block
Crank: SCAT forged steel 4340 3.25" stroke part# 4-302-3250-5400-2123 (balanced with the rest of the assembly to 28oz external)
Rods: SCAT 4340 Forged H beam 5.4" w/arp2000 capscrews part# 2-302-5400-2123-927A
Bearings: Clevite H series race rod and main bearings part# ms590h and part# cb634hn.
Pistons: CP Bullet forged 2618 pistons, Dish -20cc, for inline or twisted wedge/11r heads, designed for boost with .200" wall wristpins part# bf6121-std
Rings: CP steel top ring set, file fit for boost
PLEASE ASK ABOUT LONG BLOCK OPTIONS!
