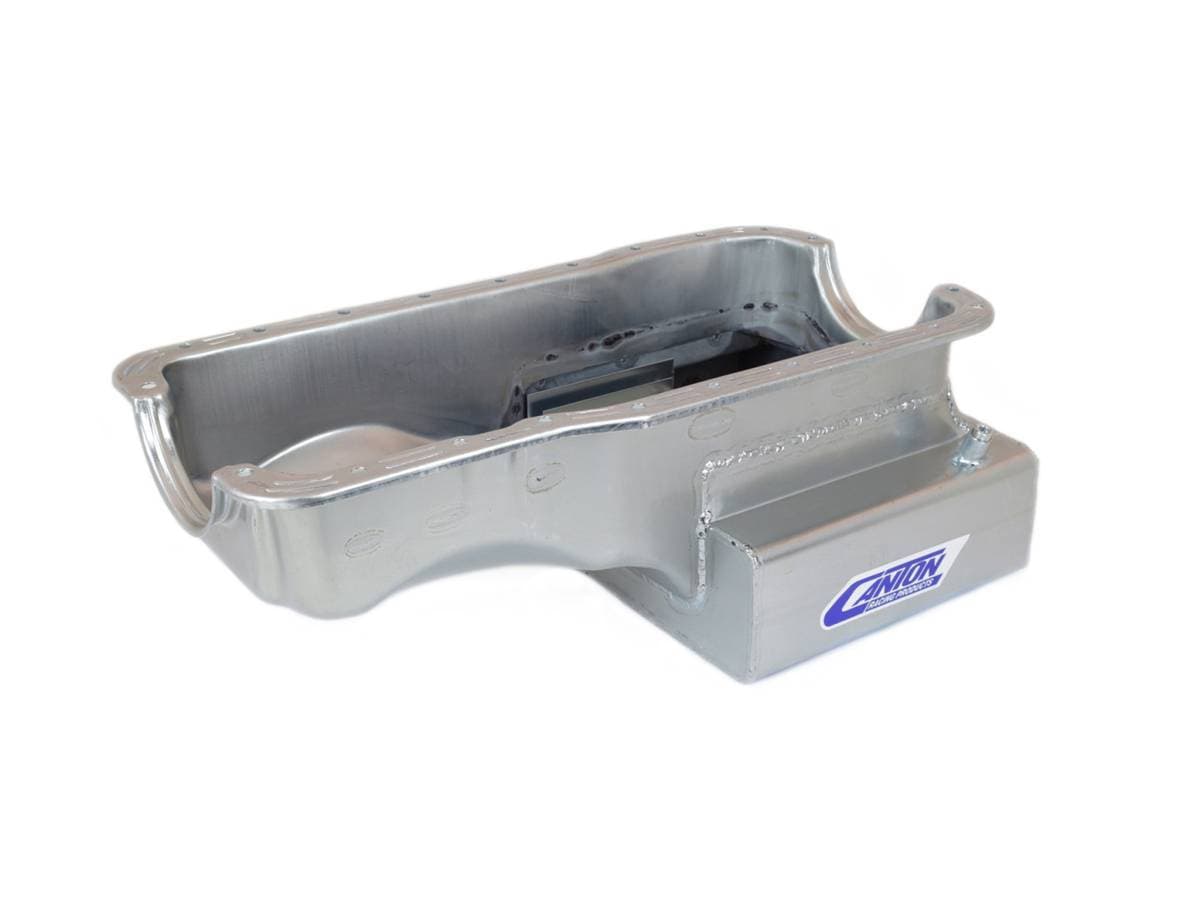

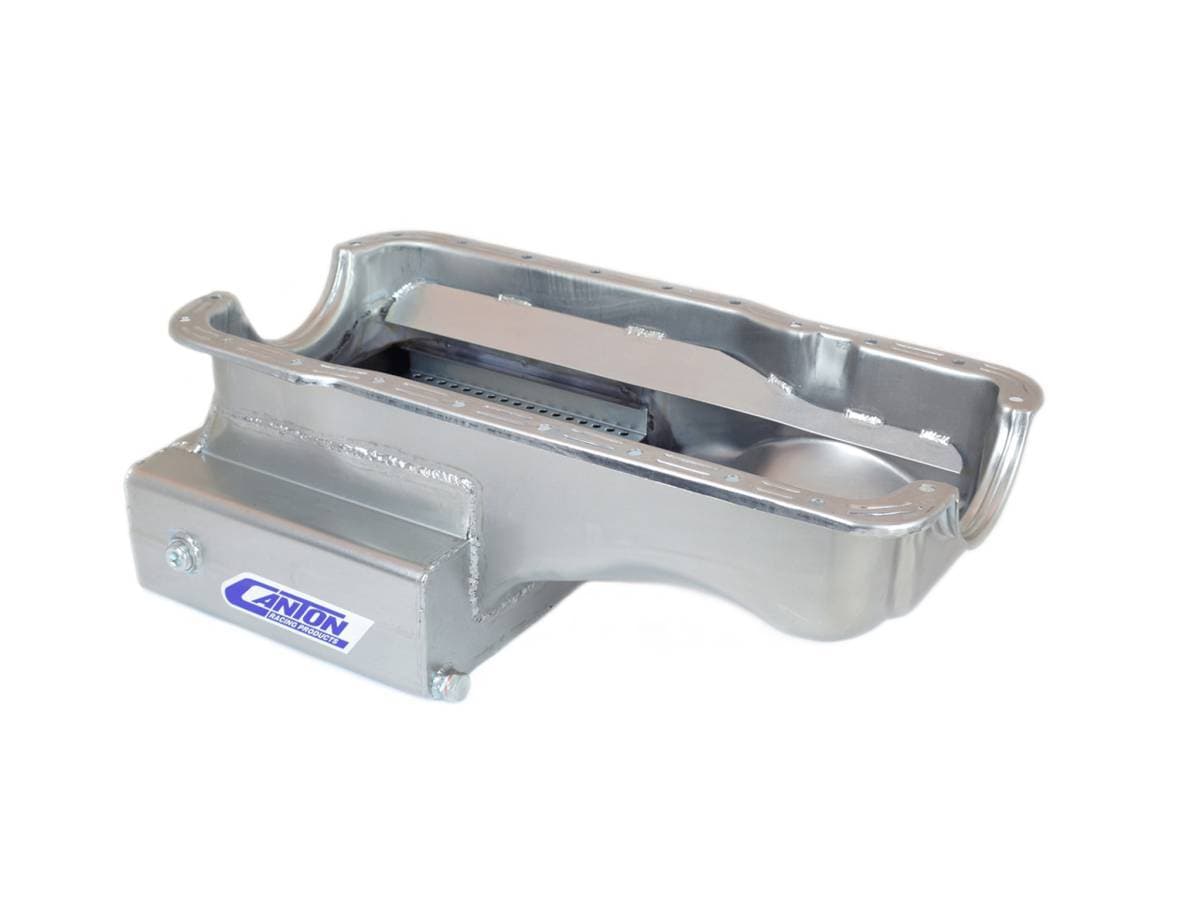

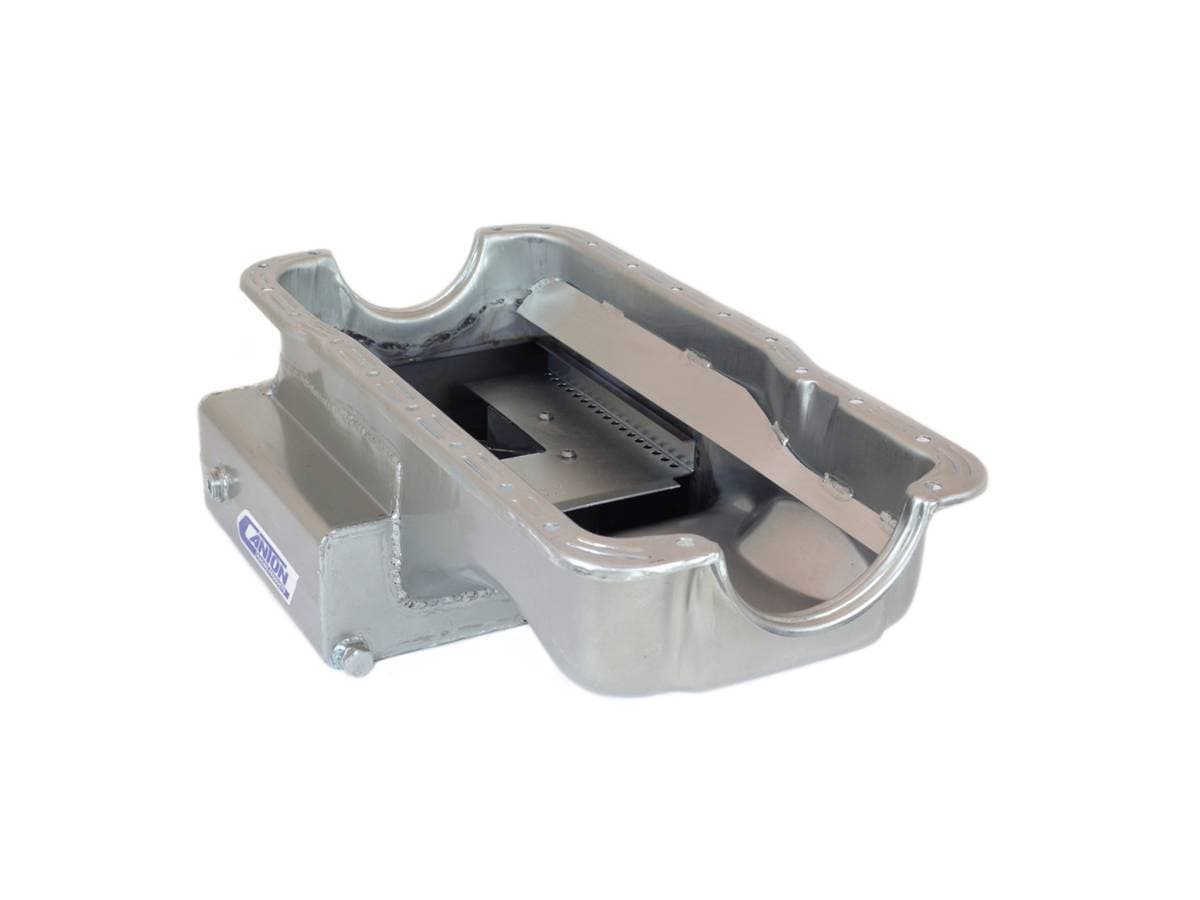

Ford 289-302 Blocks Front Sump Road Race Oil Pan - Block

This front sump road race pan is for Ford 289-302 blocks. It has an 8" deep, 13-1/2" wide, 10-1/2" long front sump with a 9 qt. system capacity.



Note: Will work with stock & aftermarket starters. This pan requires our 15-611 pickup.

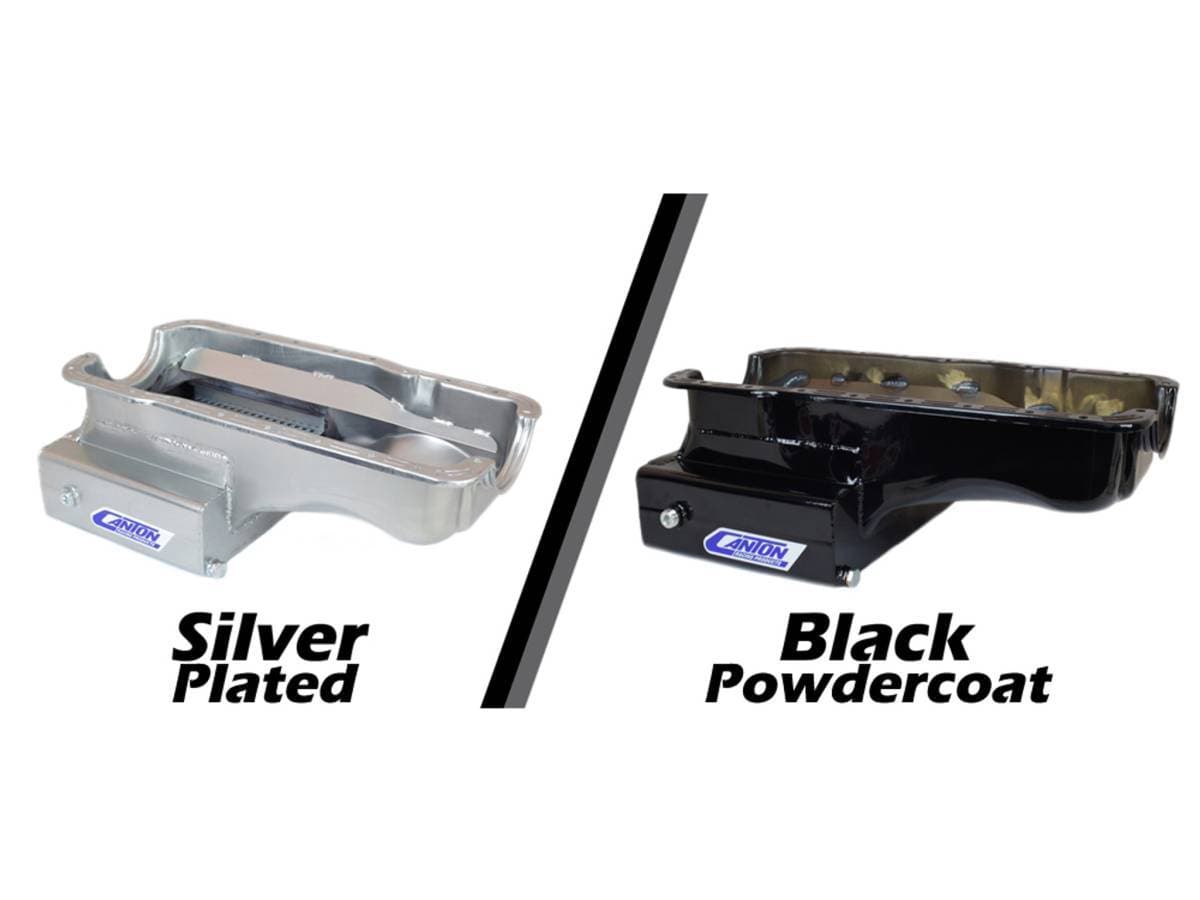

Pictures are for reference, oil pan would come black*

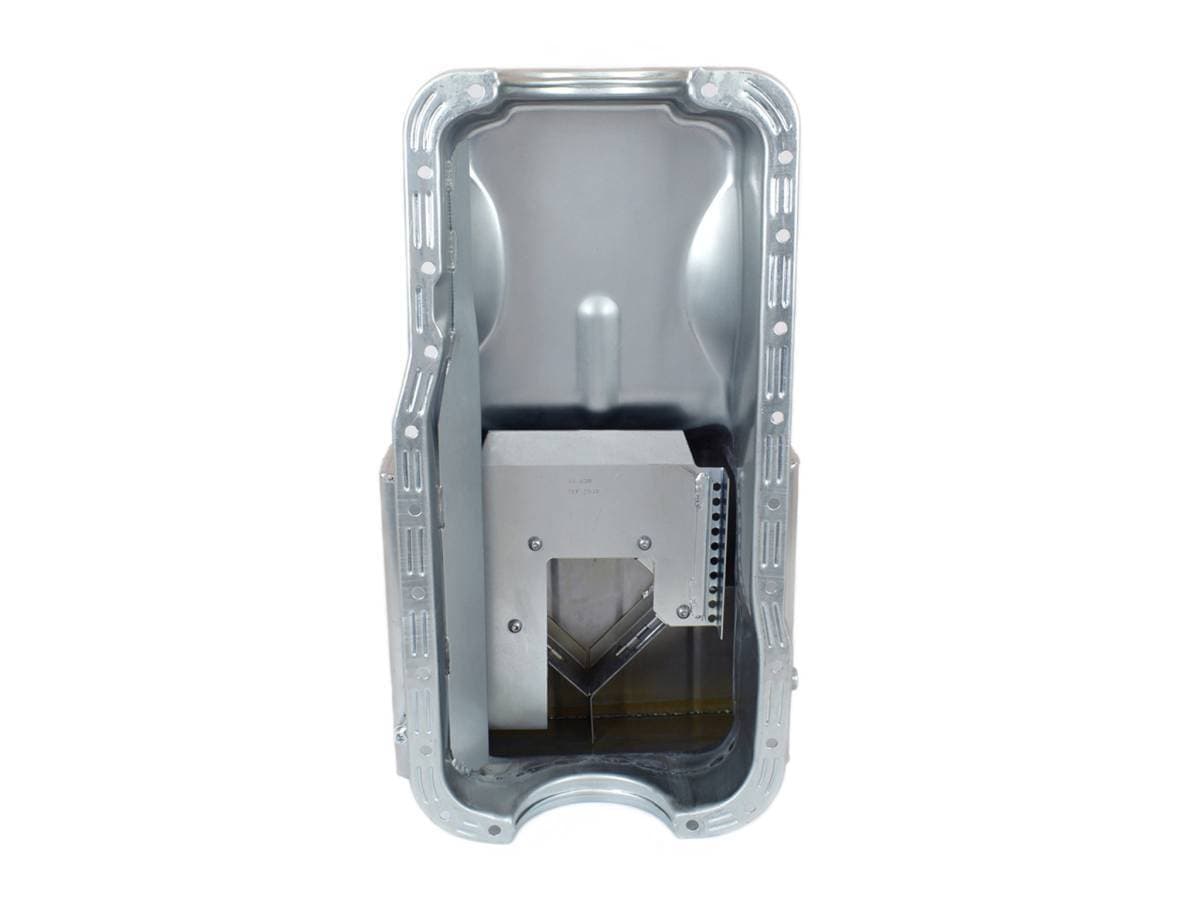

FEATURES: Diamond Shape Road Race Trap Door Baffle System, Crank Scraper, Slosh Baffle, Magnetic Drain Plug, Provision For Pan Mounted Dipstick, Works with both stock & aftermarket starters, 1/2" NPT Temperature Bung

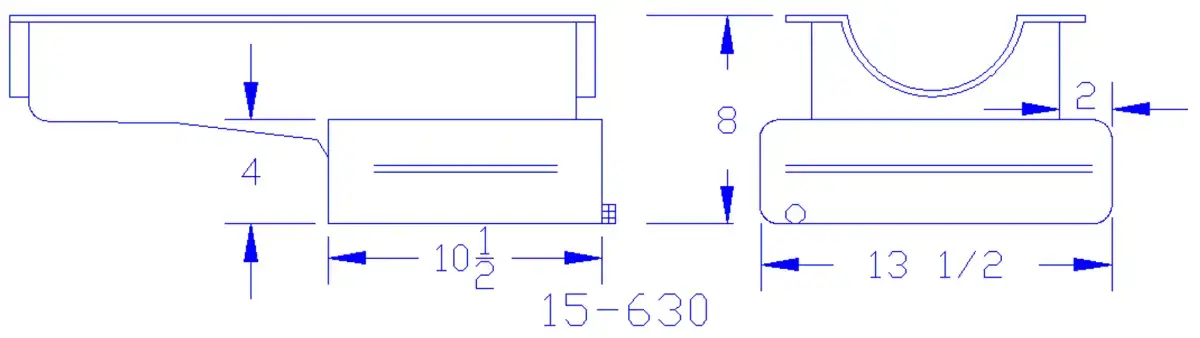

SIZE: 8" deep, 13-1/2" wide, 10-1/2" long front sump with a 9 qt. system capacity. This pan requires our 15-611 pickup.

OIL PAN PART #: 15-630BLK Canton Ford 289-302 Blocks Front Sump Road Race Oil Pan. Powdercoated Black

RECOMMENDED ACCESSORIES:
PART #: 15-611 - Pickup with 3/4" Dia. Inlet
PART #: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
PART #: 88-600 – Small Block Ford 289-302 Four Piece Oil Pan Gasket
