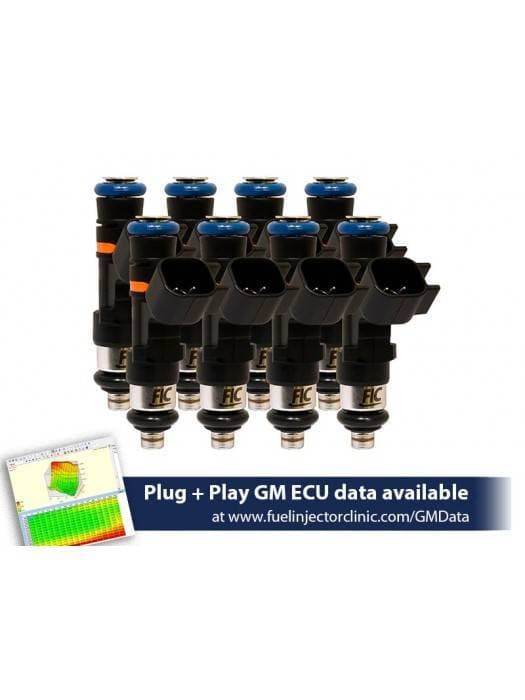

FIC 775cc High Z Flow Matched Fuel Injectors for LS Truck/SUV (4.8L,5.3L,6.0L) 1999-2006 - Set of 8

This is a set of 8 FIC 775cc Fuel Injector Clinic injectors for any LS Truck/SUV (4.8L,5.3L,6.0L) from 1999-2006. This injectors are all flow matched together in a set and will include details flow numbers and tuning data.

Typical flow rates of 775cc/min (74lbs/hr) at 3 bar (43.5psi) fuel pressure. Saturated / High Impedance Ball & Seat Injectors. These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Plug and Play GM ECU Data available.

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Note: These injectors come with EV1 pigtails to convert your system to work with EV1 style injector plugs. Don't want to solder in pigtails? we've got you covered with EV1 to Delphi Multec 2 plug adapters to use with your OEM harness wires! see the blue "choose product options" button for your choice of pigtails or EV1 to Delphi Multec 2 Adapters!

Included:
8 - FIC 775cc EV1 High Impedance Fuel Injectors (PN: IS305-0775H)
8 - EV1 Pigtails. Optional EV1 to Delphi Multec 2 adapters for OEM harness available, See the product options.

Specifications:
Bottom O-ring Outer Diameter 14mm
Cylinder Quantity 8
Height 48mm
Impedance High-Z
Top O-ring 14mm

Engine Fitment:
4.8L - LR4
5.3L - LM7, LM4, L33
6.0L - LQ4, LQ9

Fuel Injector Clinic's 775cc/min high impedance injector is the largest high impedance injector compatible with all race fuels and has excellent idle performance in street driven cars while still providing enough fuel to support higher horsepower output on both E85 and gasoline. The 775cc high impedance injector can be used with any fuel type based on the stainless alloy valve construction. It is compatible with pump gasoline, E85, Q16 or VP Import or any other MTBE oxygenated fuels. Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid. Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

Horsepower supported:
WHP on E85 at 43psi 90%DC NA 694.95
WHP on E85 at 43psi 90%DC Supercharged 631.77
WHP on E85 at 43psi 90%DC Turbo 579.12
WHP on E85 at 58psi 90%DC NA 802.66
WHP on E85 at 58psi 90%DC Supercharged 729.69
WHP on E85 at 58psi 90%DC Turbo 668.88
WHP on Gas at 43psi 90%DC NA 903.43
WHP on Gas at 43psi 90%DC Supercharged 821.30
WHP on Gas at 43psi 90%DC Turbo 752.86
WHP on Gas at 58psi 90%DC NA 1043.46
WHP on Gas at 58psi 90%DC Supercharged 948.60
WHP on Gas at 58psi 90%DC Turbo 869.55
