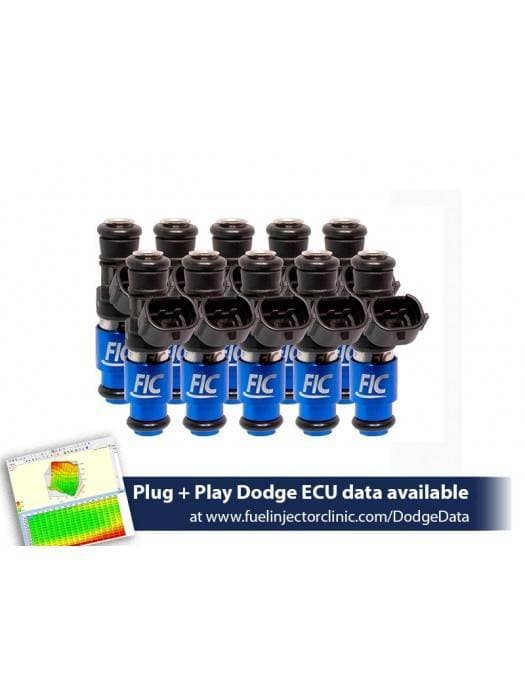

FIC 2150cc High Z Flow Matched Fuel Injectors for Dodge Viper 2008-2017 - Set of 10

This is a set of 10 FIC 2150cc Fuel Injector Clinic injectors for any Dodge Viper (ZB2 & VX1) 2008-2017. This injectors are all flow matched together in a set and will include details flow numbers and tuning data.

Typical flow rates of 2150cc/min (200lbs/hr) at 3 bar (43.5psi) fuel pressure. Saturated / High Impedance Ball & Seat Injectors. These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Plug and Play Dodge ECU Data available.

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Note: These injectors come with Denso pigtails to convert your system to work with EV1 style injector plugs. Don't want to solder in pigtails? we've got you covered with Denso to EV6 plug adapters to use with your OEM harness wires! see the blue "choose product options" button for your choice of pigtails or Denso to EV6 Adapters!

Included:
10 - FIC 2150cc EV6 High Impedance Fuel Injectors (PN: IS158-2150H)
10 - EV1 Pigtails, Optional EV1 to EV6 adapters available

Specifications:
Bottom O-ring Outer Diameter 14mm
Cylinder Quantity 10
Height 53mm
Impedance High-Z
Top O-ring 14mm

Fuel Injector Clinic's 2150cc/min high impedance injector is the largest high impedance injector compatible with all race fuels and has excellent idle performance in street driven cars while still providing enough fuel to support higher horsepower output on both E85 and gasoline. The 2150cc high impedance injector can be used with any fuel type based on the stainless alloy valve construction. Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid. Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

CAUTION! The internal construction of this 2150cc/min injector includes a seal that has been found to swell when in contact with MTBE from oxygenated fuels like Q16 or VP Import. This swelling causes a significant reduction in flow through the injector and therefore renders it unsuitable for use with MTBE oxygenated fuels. Please be sure to follow the care instructions for these injectors since there are potential corrosion issues that may arise from prolonged disuse while exposed to alcohol based fuels (E85, etc.)

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

Horsepower supported:
WHP on E85 at 43psi 90%DC NA 2409.89
WHP on E85 at 43psi 90%DC Supercharged 2190.81
WHP on E85 at 43psi 90%DC Turbo 2008.24
WHP on E85 at 58psi 90%DC NA 2783.42
WHP on E85 at 58psi 90%DC Supercharged 2530.38
WHP on E85 at 58psi 90%DC Turbo 2319.52
WHP on Gas at 43psi 90%DC NA 3132.86
WHP on Gas at 43psi 90%DC Supercharged 2848.05
WHP on Gas at 43psi 90%DC Turbo 2610.71
WHP on Gas at 58psi 90%DC NA 3618.45
WHP on Gas at 58psi 90%DC Supercharged 3289.50
WHP on Gas at 58psi 90%DC Turbo 3015.38
