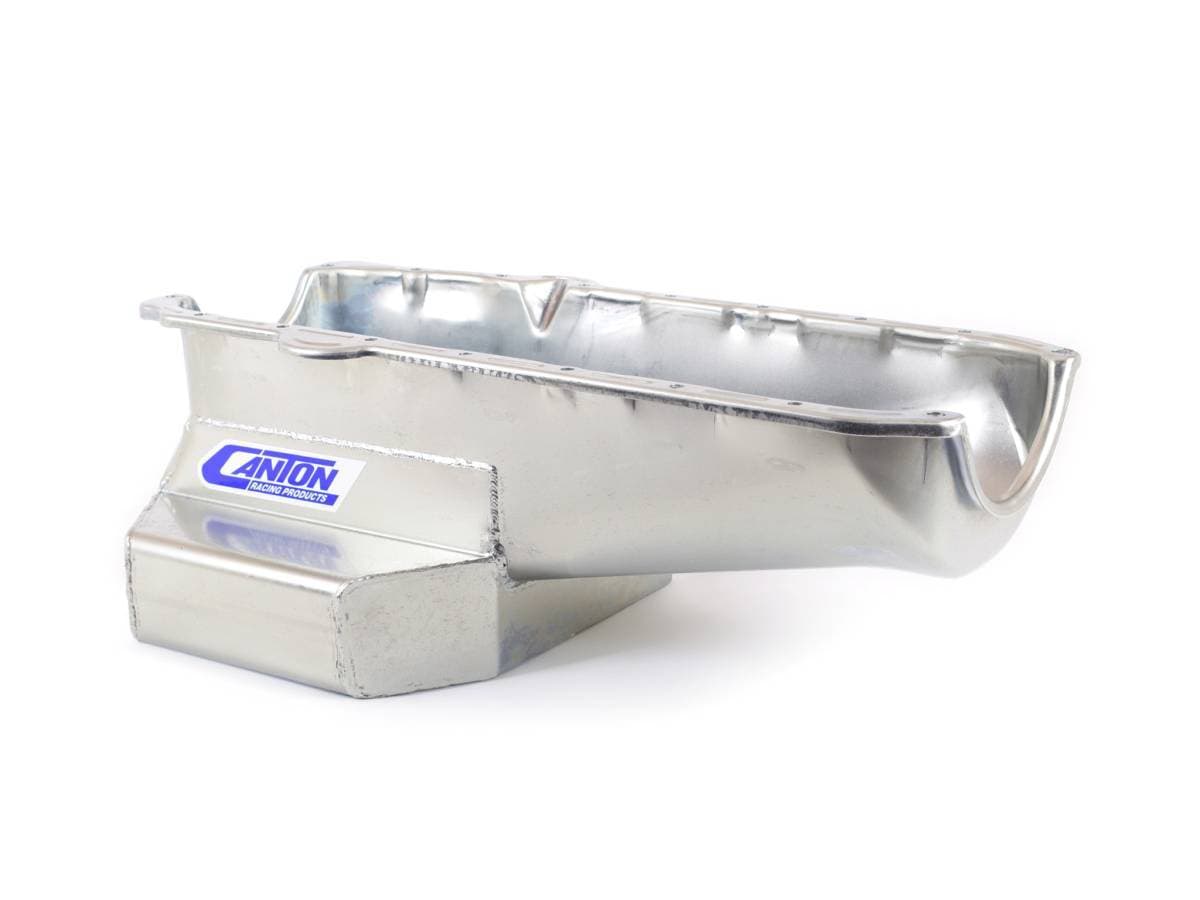

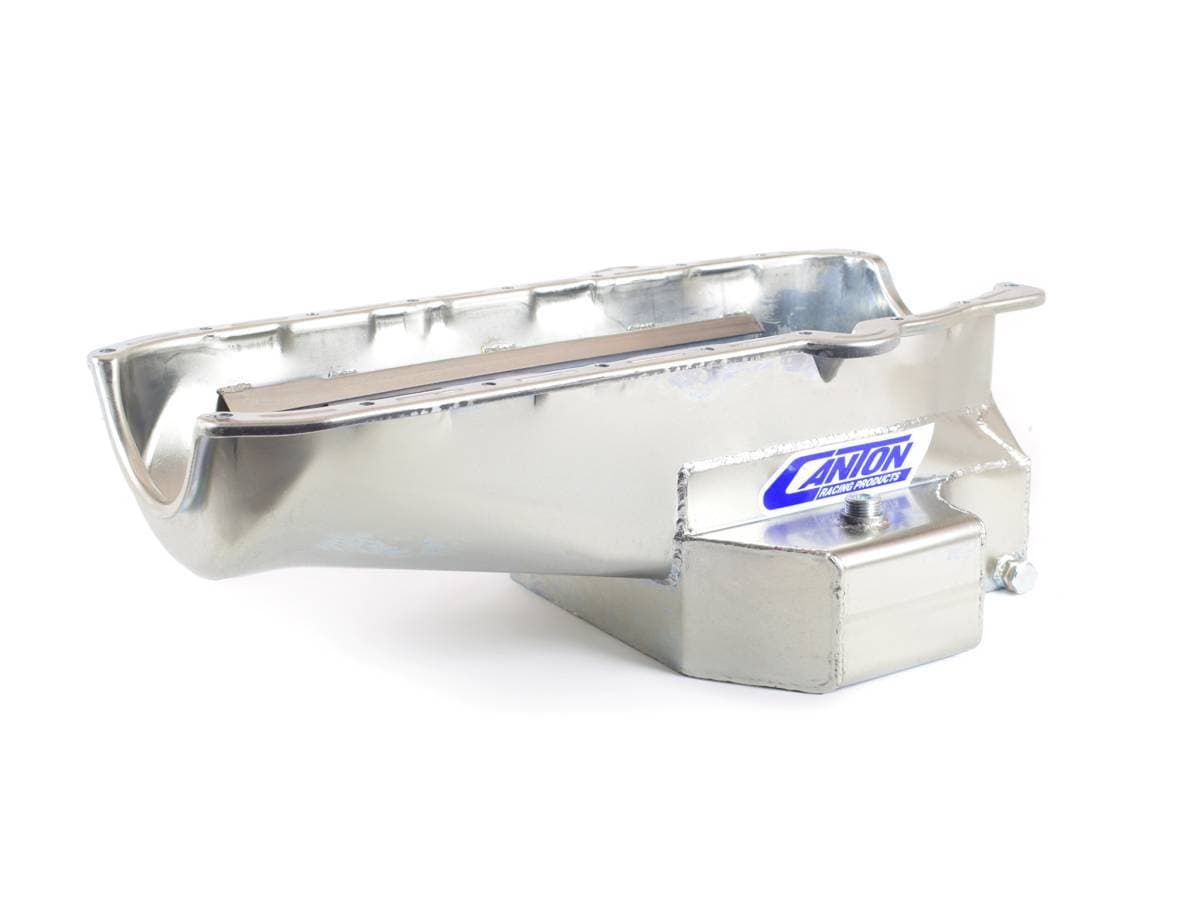

F Body 1978+ Road Race Canton Oil Pan - Silver

This SBC road race oil pan is for pre-’80 blocks with left side dipstick. It is designed for x-member clearance in '78 and up F bodies, without cross over exhaust. It has a 7-1/2" deep, 13-3/4" wide, 10-1/2" long sump, for a 7 quart system capacity. This pan can not be used with cross-over exhaust.



Note: This pan requires one of our pickups.

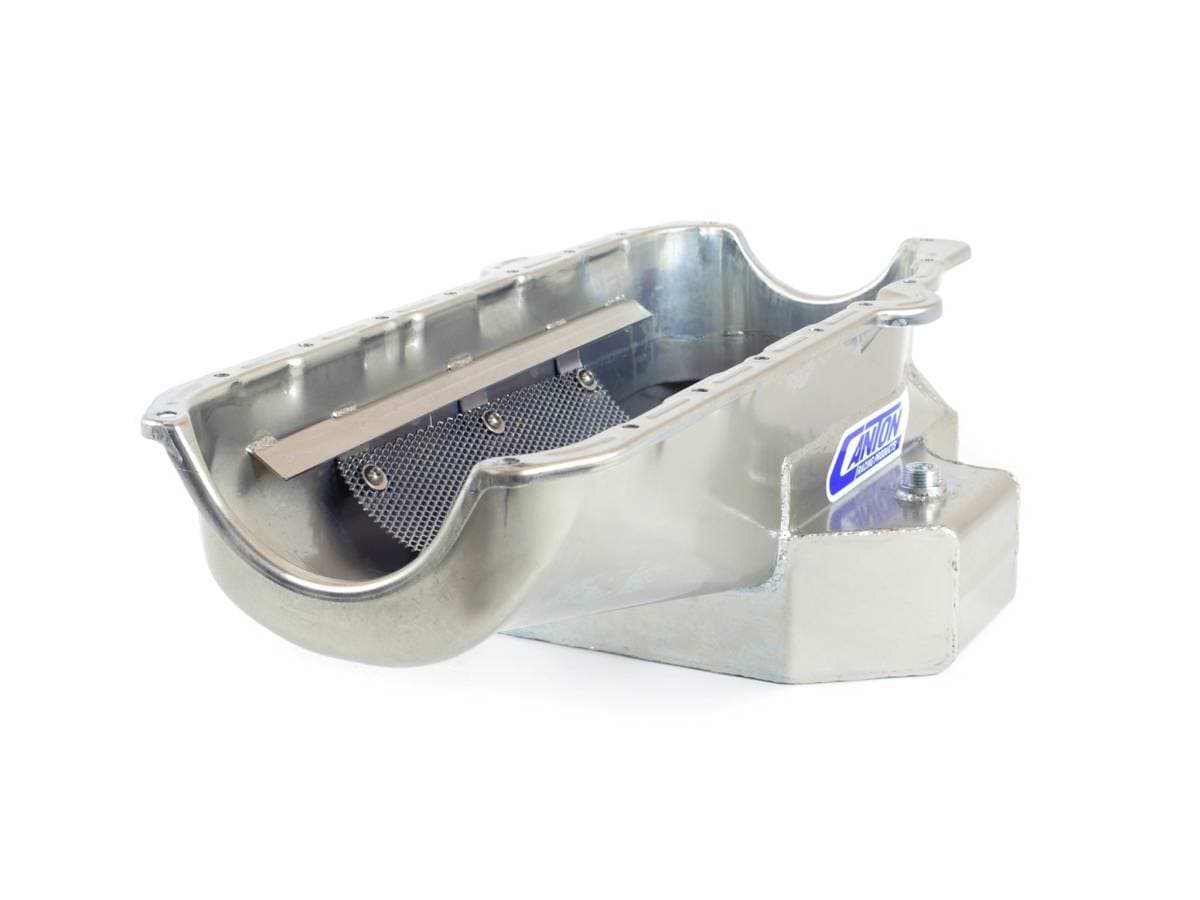

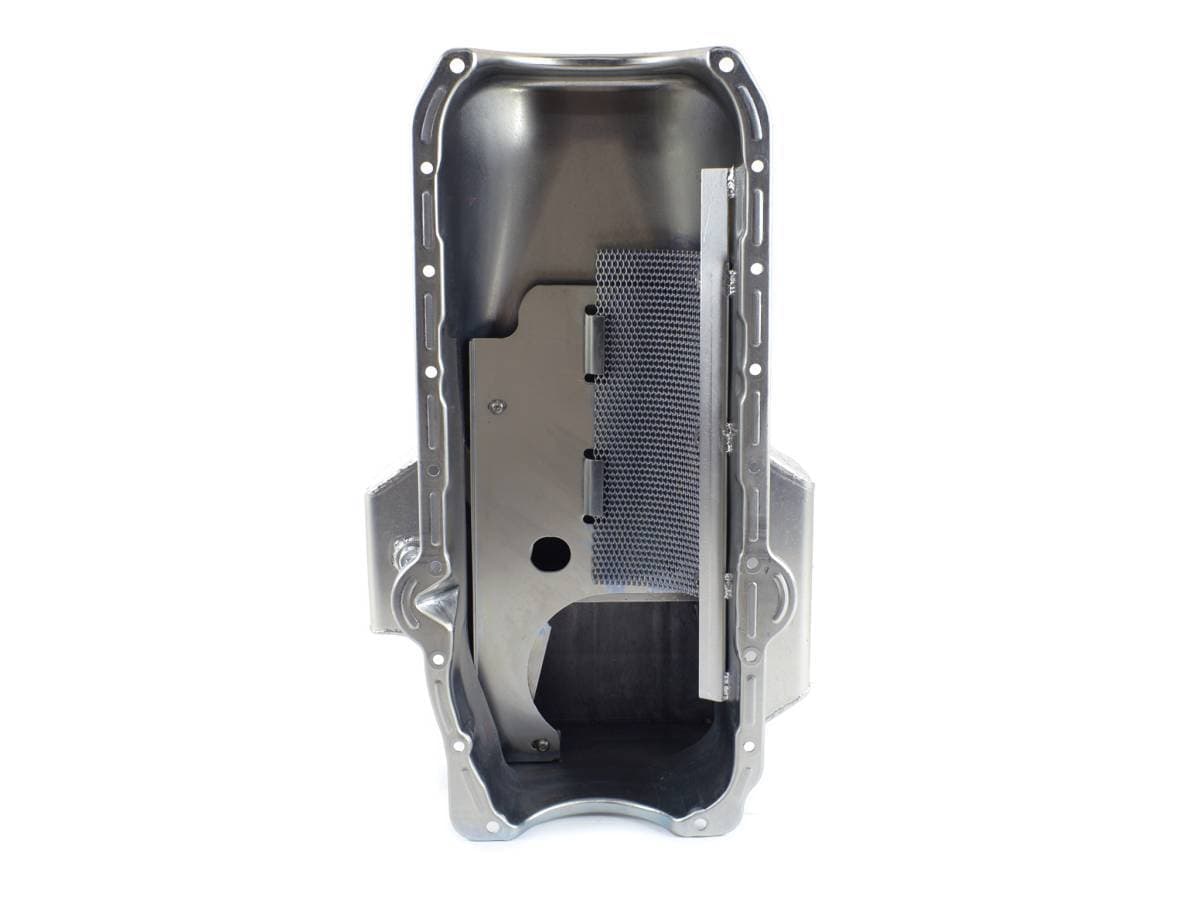

FEATURES: Five Trap Door Baffles. Crank Scraper. Built In Screen Windage Tray. 1/2" NPT Temperature Bung. Magnetic Drain Plug

STYLE: 7-1/2" deep, fully baffled for road racing, this pan was designed to fit in late model (82-92) F Bodies. Makes a great late F-Body Drag Pan. Can be used with cross-over exhaust.

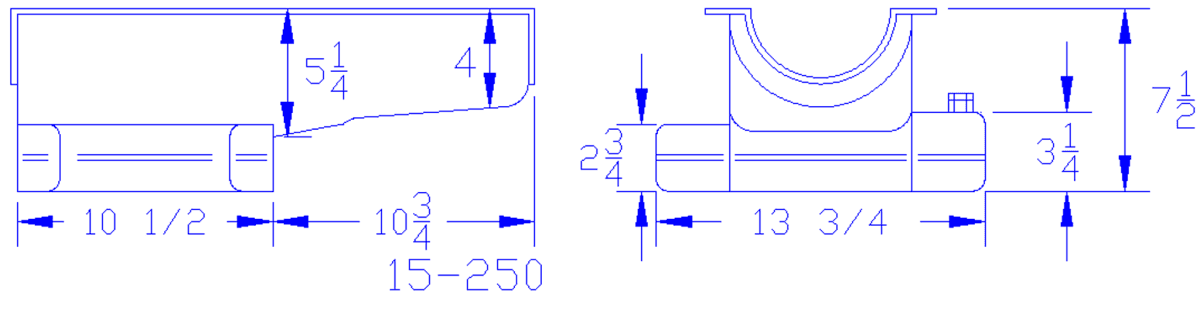

SIZE: 7-1/2" deep, 13-3/4" wide, 10-1/2" long sump, for a 7 quart system capacity.

OIL PAN PART #: 15-250 pan for direct bolt-in, '1978+ F-Bodies with Pre-1980 blocks.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-010 Standard Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-013 Standard Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.
PART #: 20-020 High Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-023 High Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.

GASKET:
PART #: 88-100T Gasket Set for 1986+ SBC blocks.
