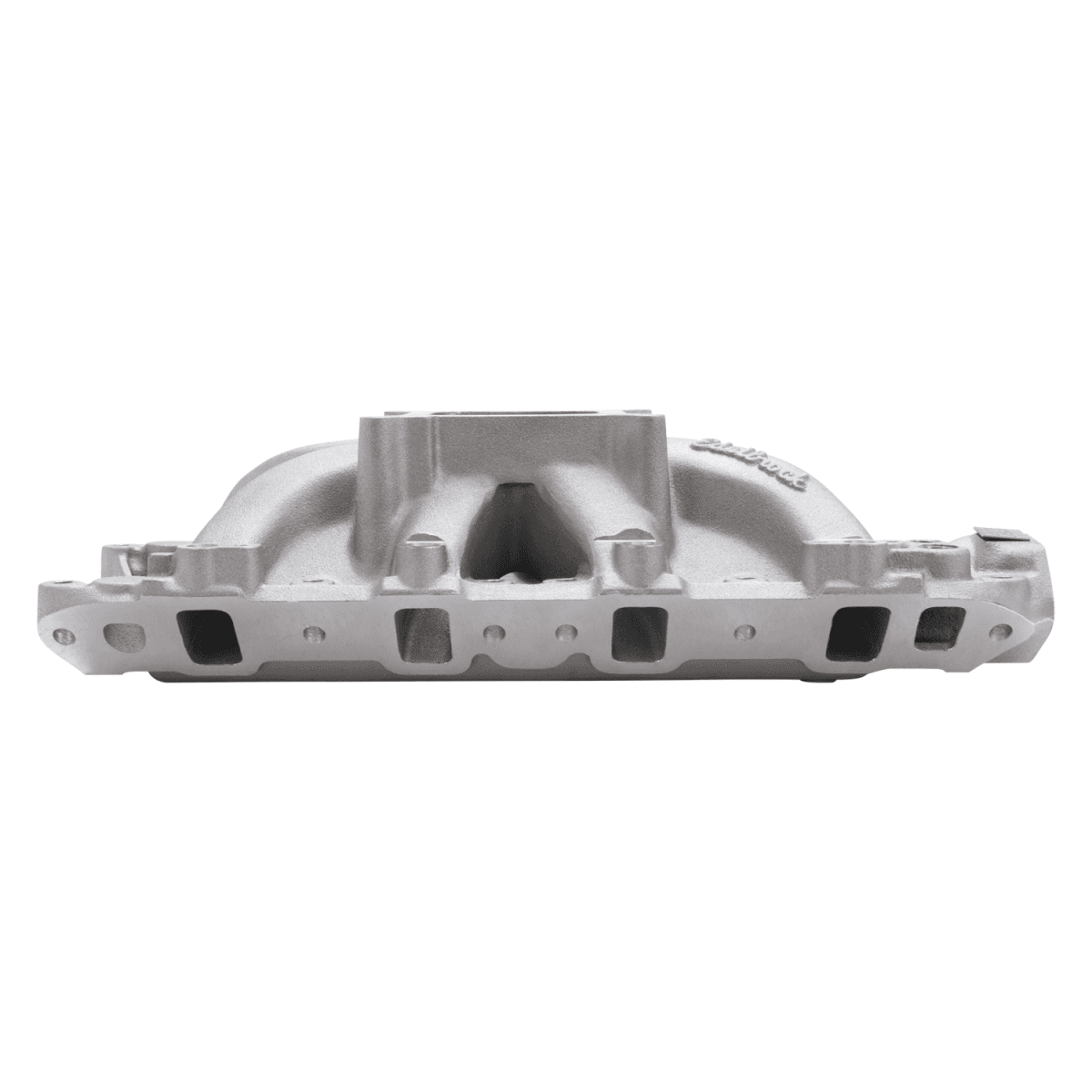

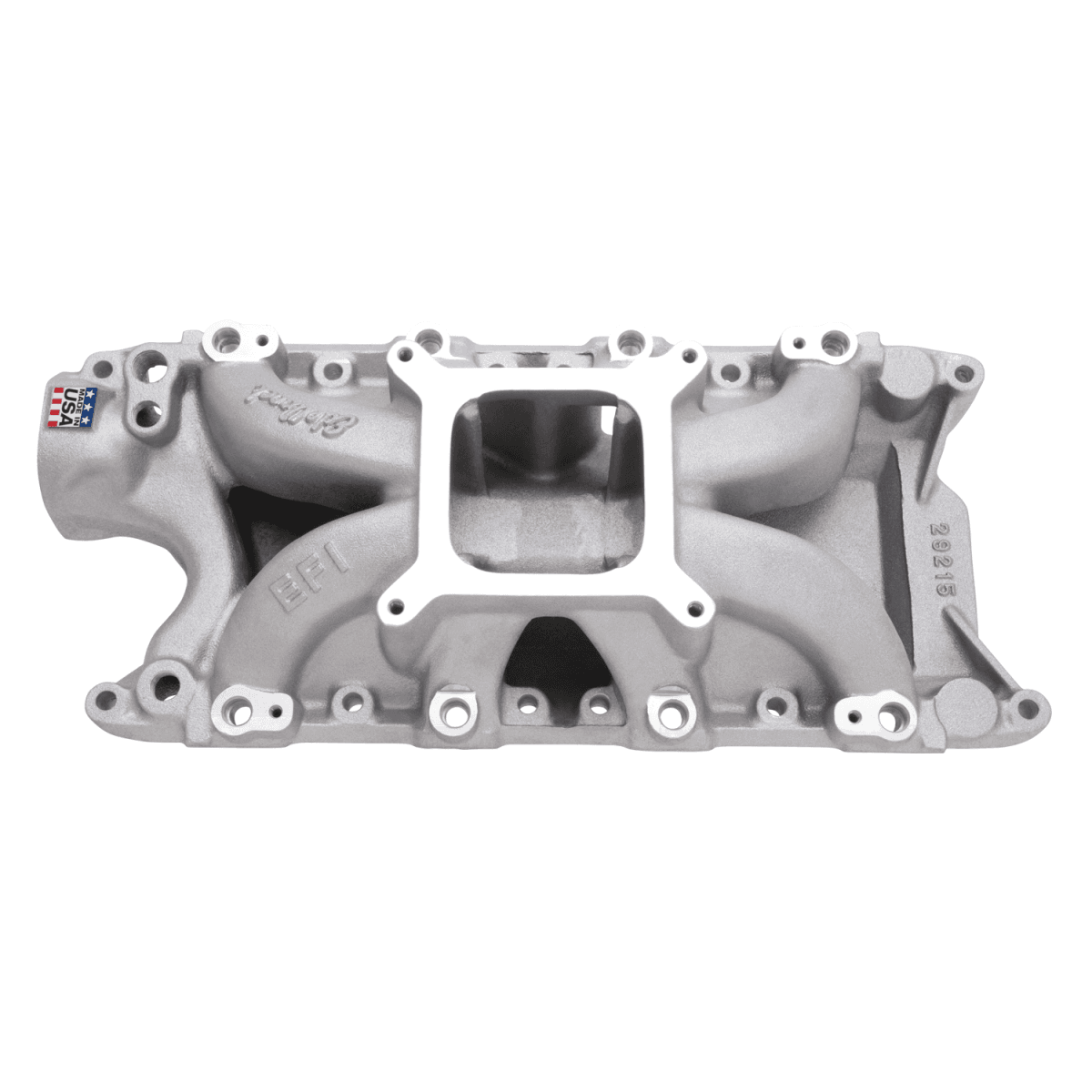

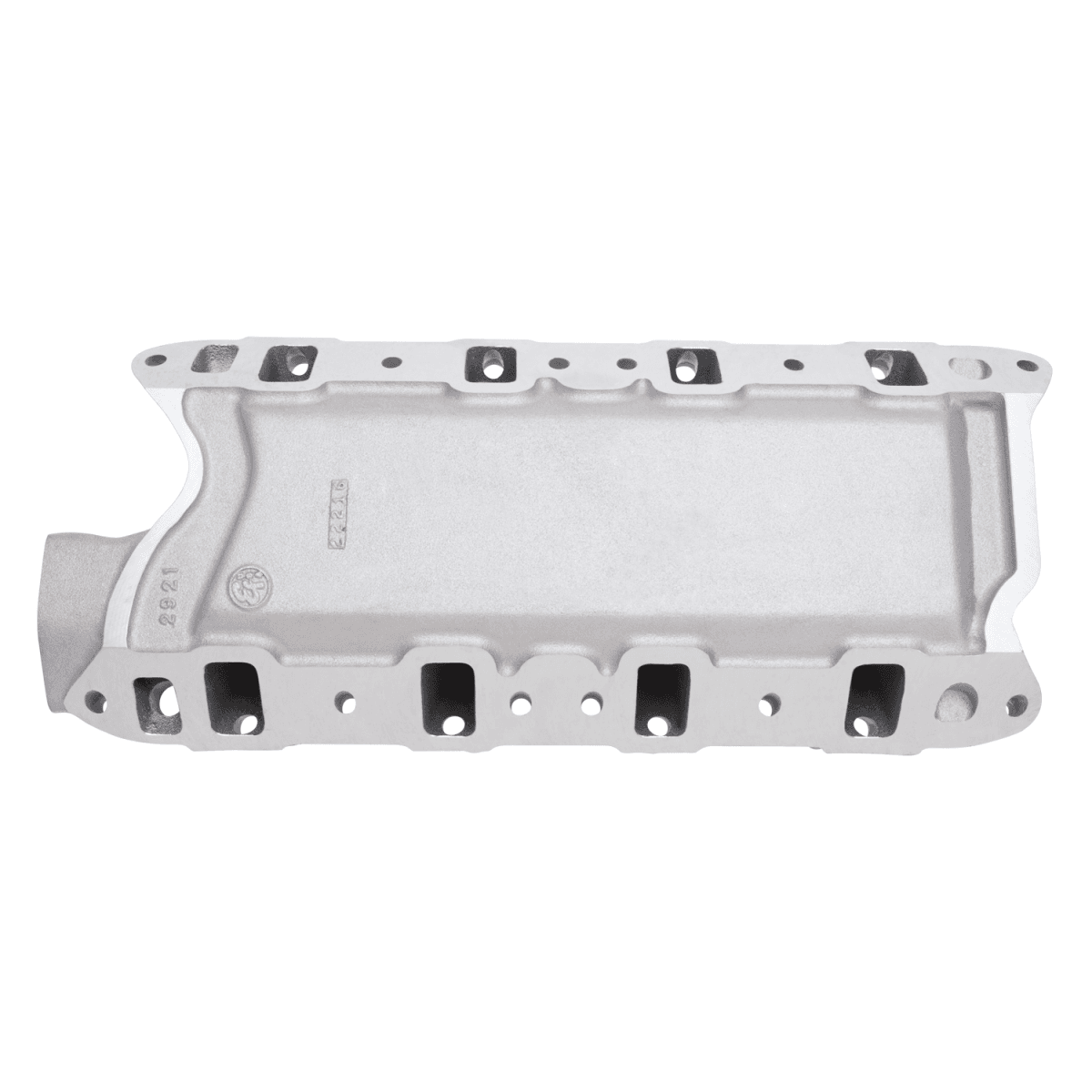

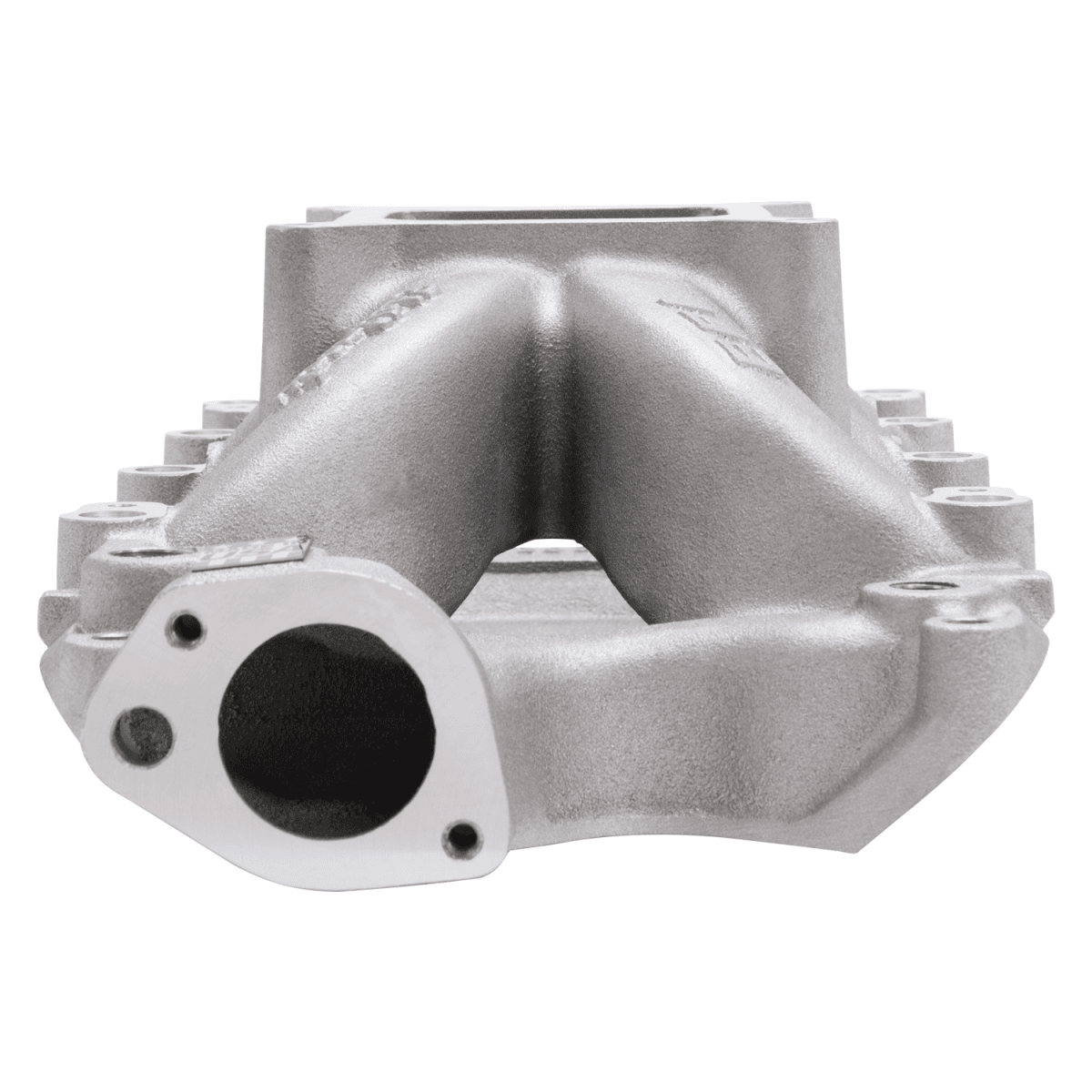

Edelbrock part #29215 Victor Jr. 302 EFI intake manifold is designed for use with Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. Victor Jr. EFI also features bosses for rear water crossover.
Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. The Edelbrock Victor Jr. #29215 EFI is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Notes: Requires EFI Fuel rails.
Part Number: EDL-29215
Cylinder Head Configuration: Stock
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 3,500-8,000
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Injectors Included: No
Multi-Port Fuel Rails Included: No
EGR: No
Aftermarket Fuel Rail Required: Yes
Throttle Body Included: No
Supplemental Bosses Cast-In: No
Supplemental Bosses Machined: No
Runners Included: No
Runners Removable: No
Base Material: Aluminum
Notes: May require port work to factory cylinder heads to match intake ports.
