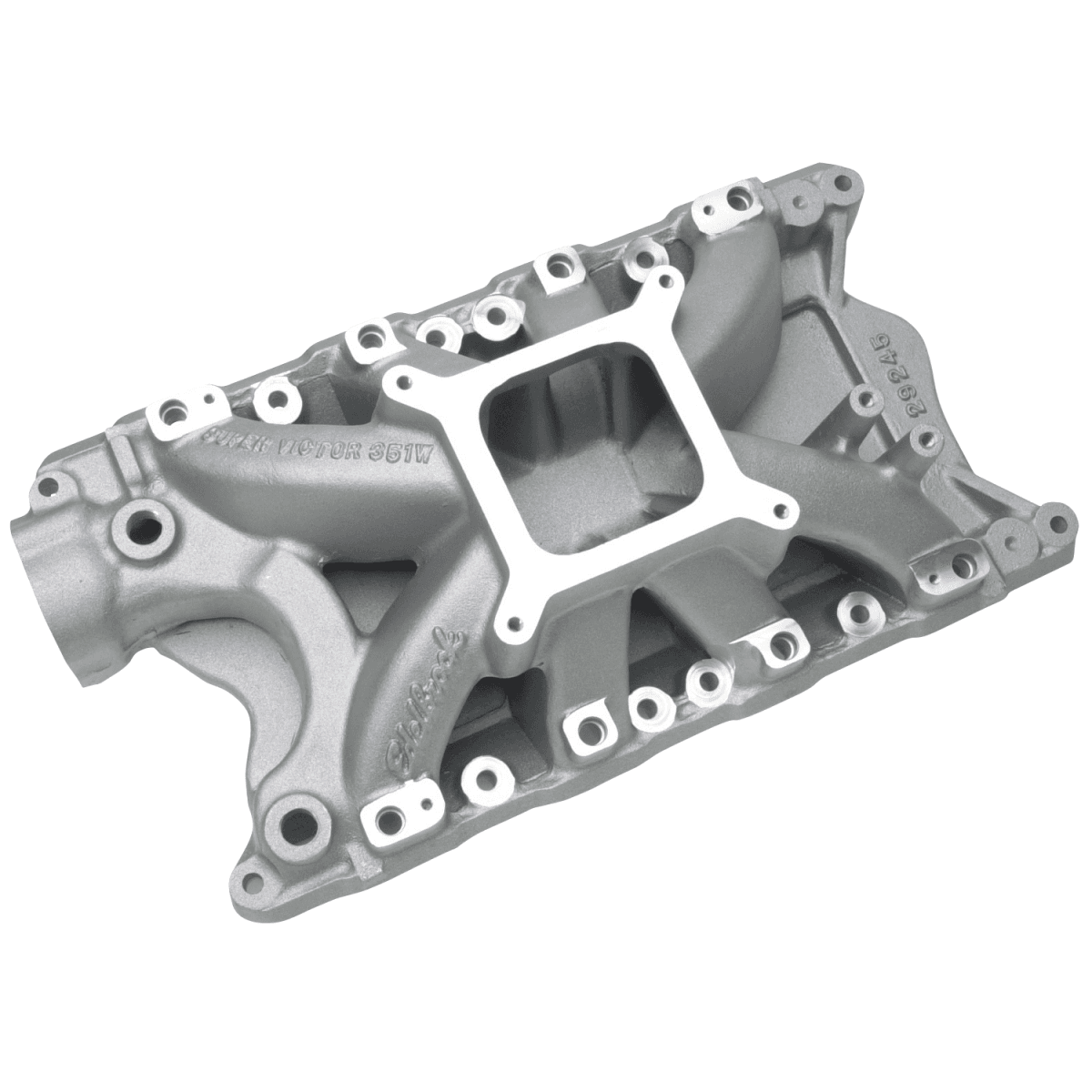

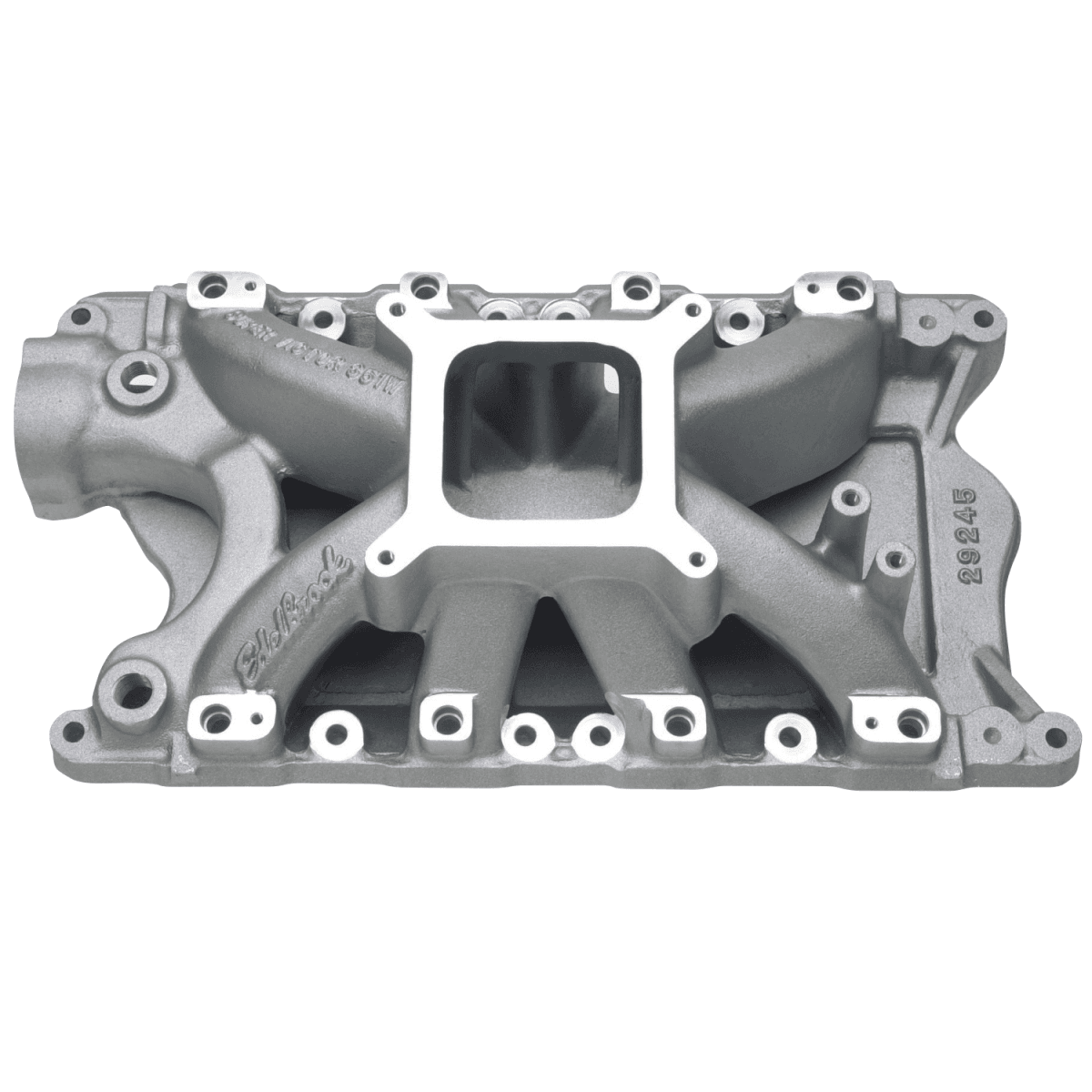

Edelbrock part #29245 Super Victor 351W EFI intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5". It's ideal for drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area.
Notes: Fits 9.500 in. deck height only and does not have EGR provisions.
Features:
Part Number: EDL-29245
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 4,500-8,500
Engine Block Deck Height: fits 9.5" deck only
Injectors Included: No
Multi-Port Fuel Rails Included: No
EGR: No
Aftermarket Fuel Rail Required: Yes
Throttle Body Included: No
Supplemental Bosses Cast-In: Yes
Supplemental Bosses Machined: No
Supplemental Boss Quantity: Eight
Material: Aluminum
Quantity: Sold individually.
