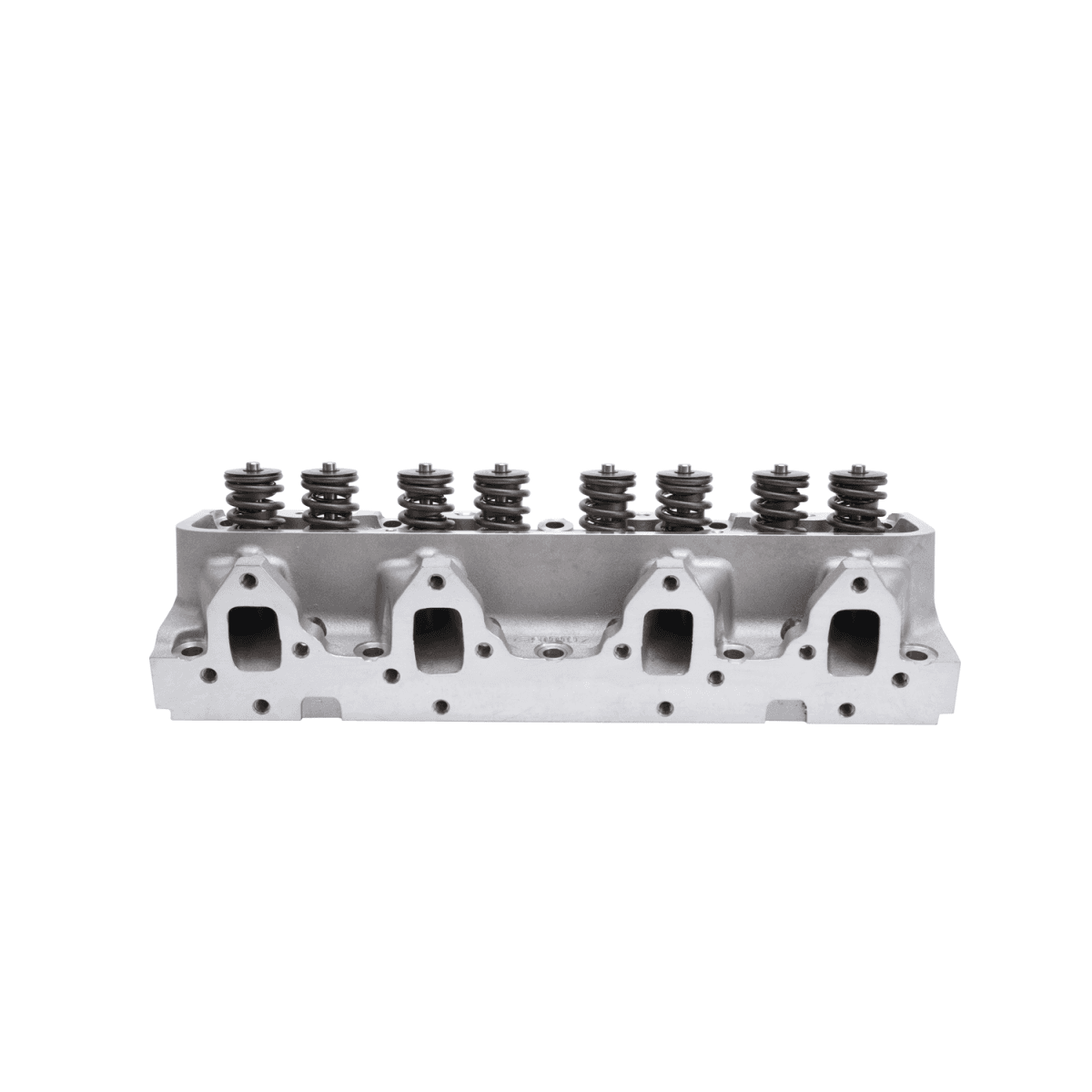

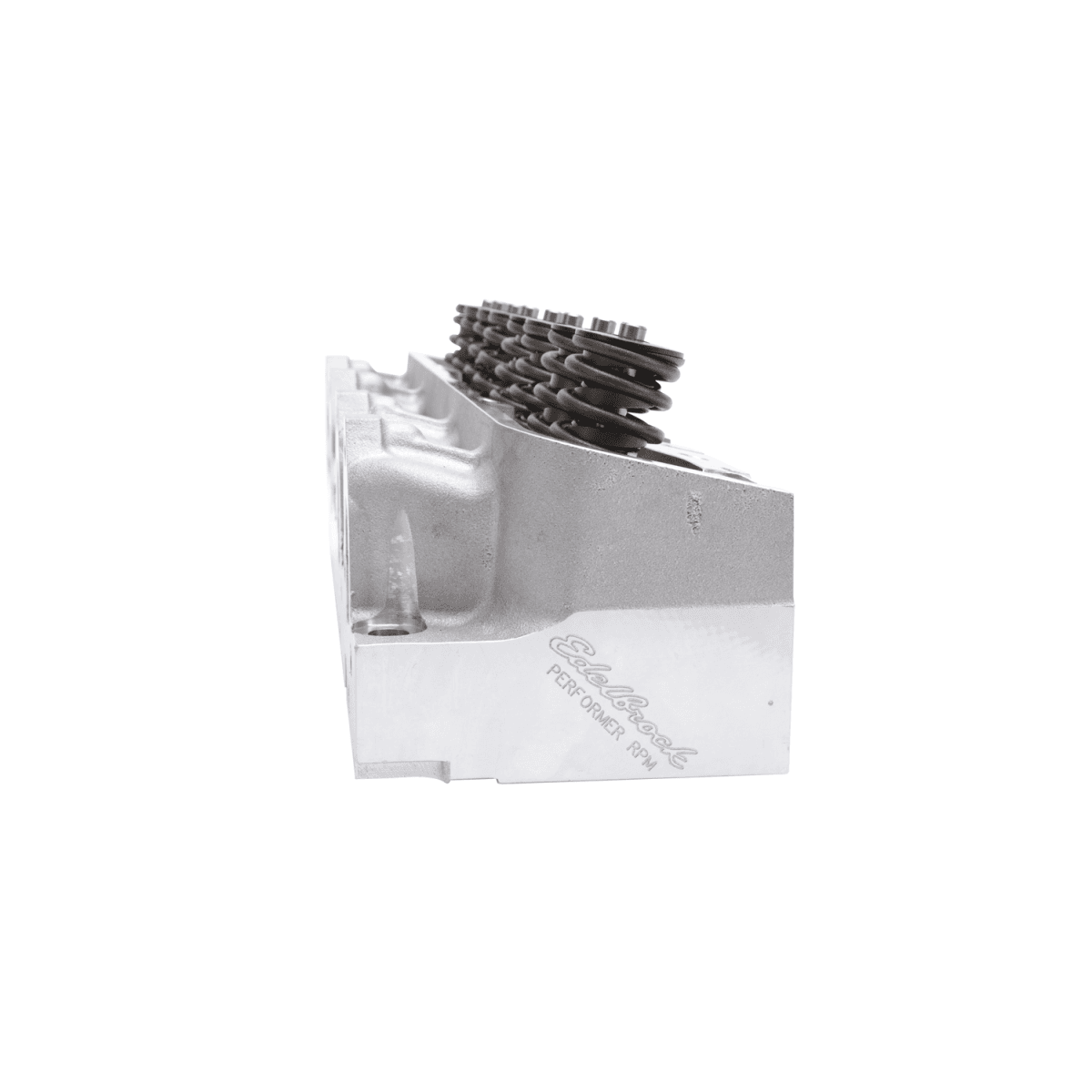

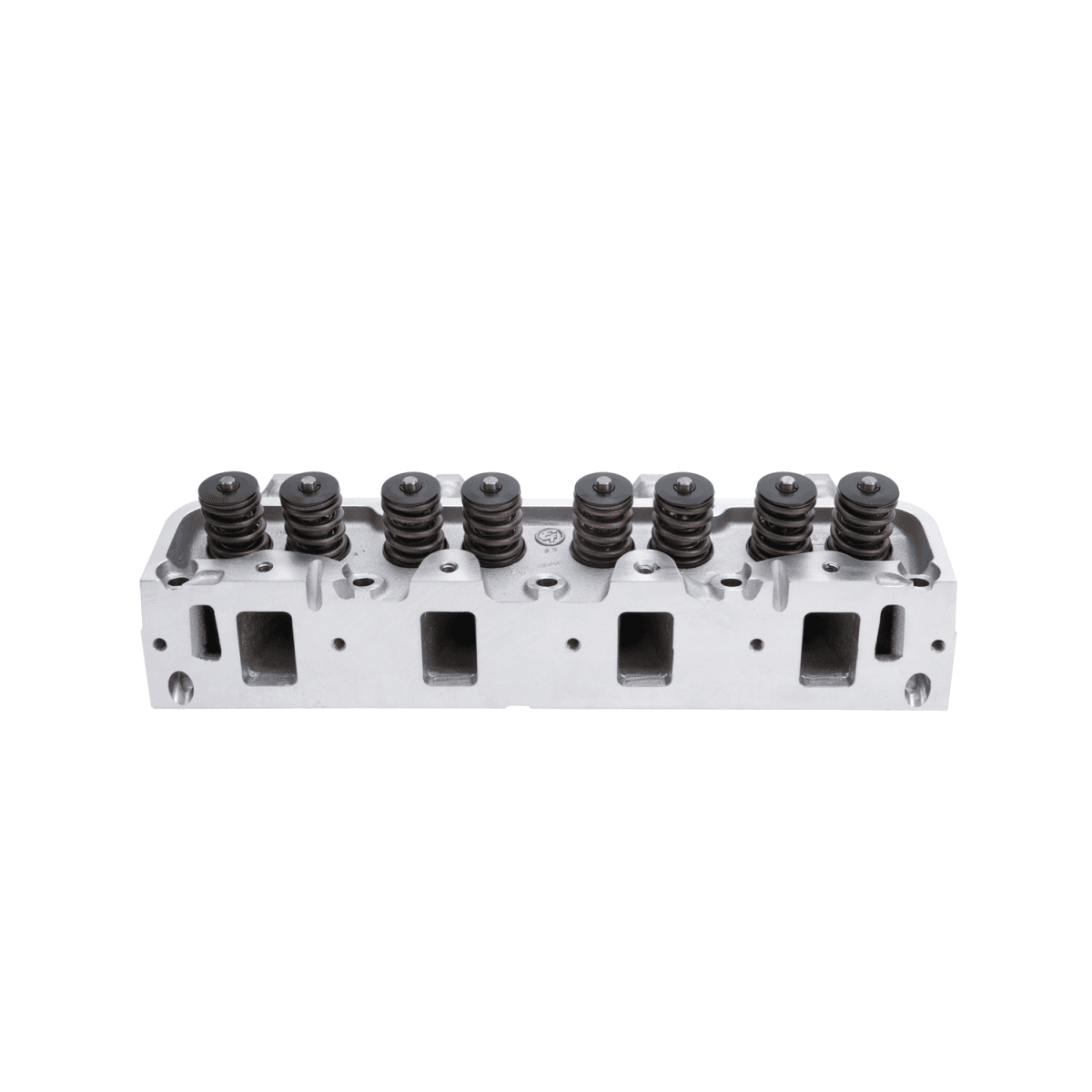

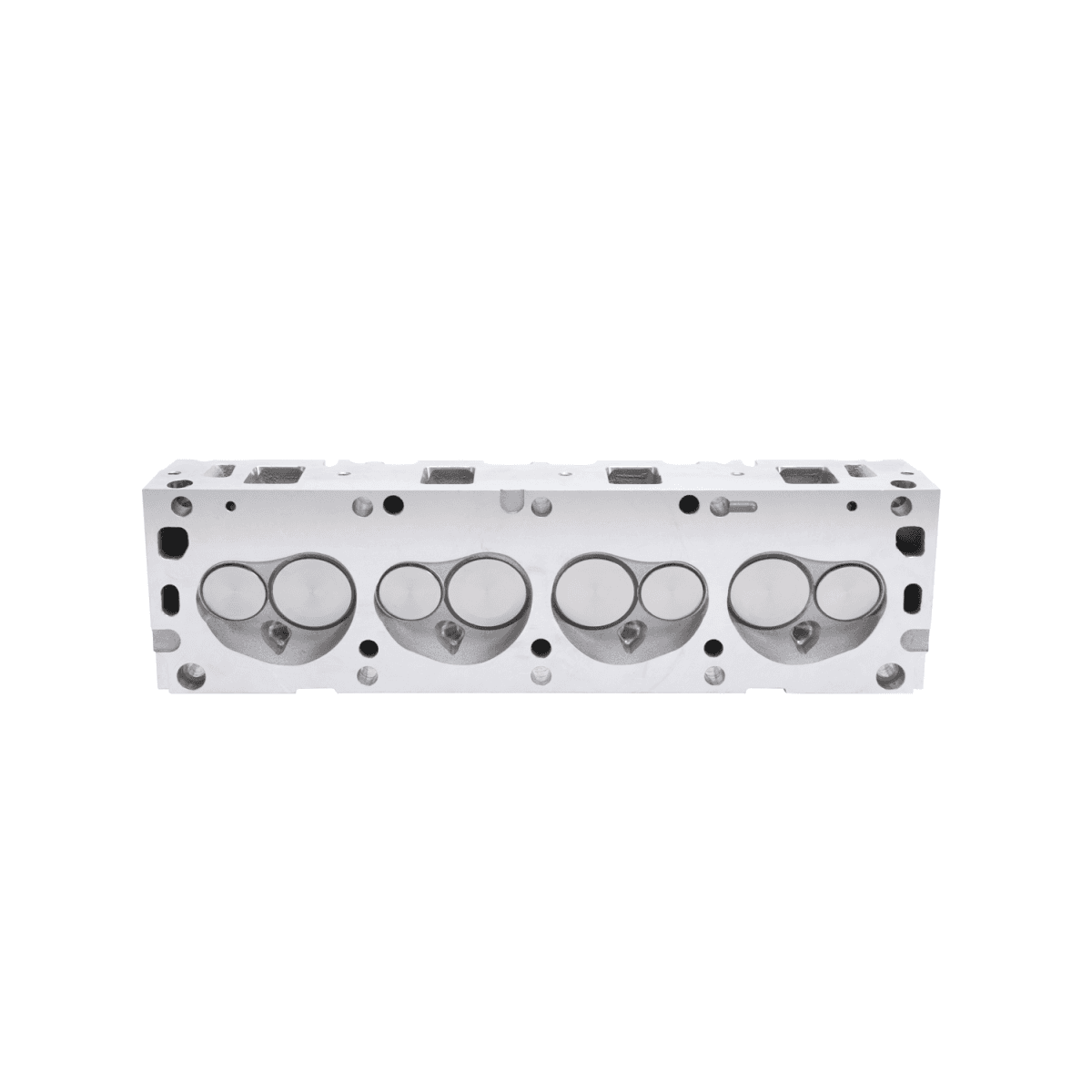

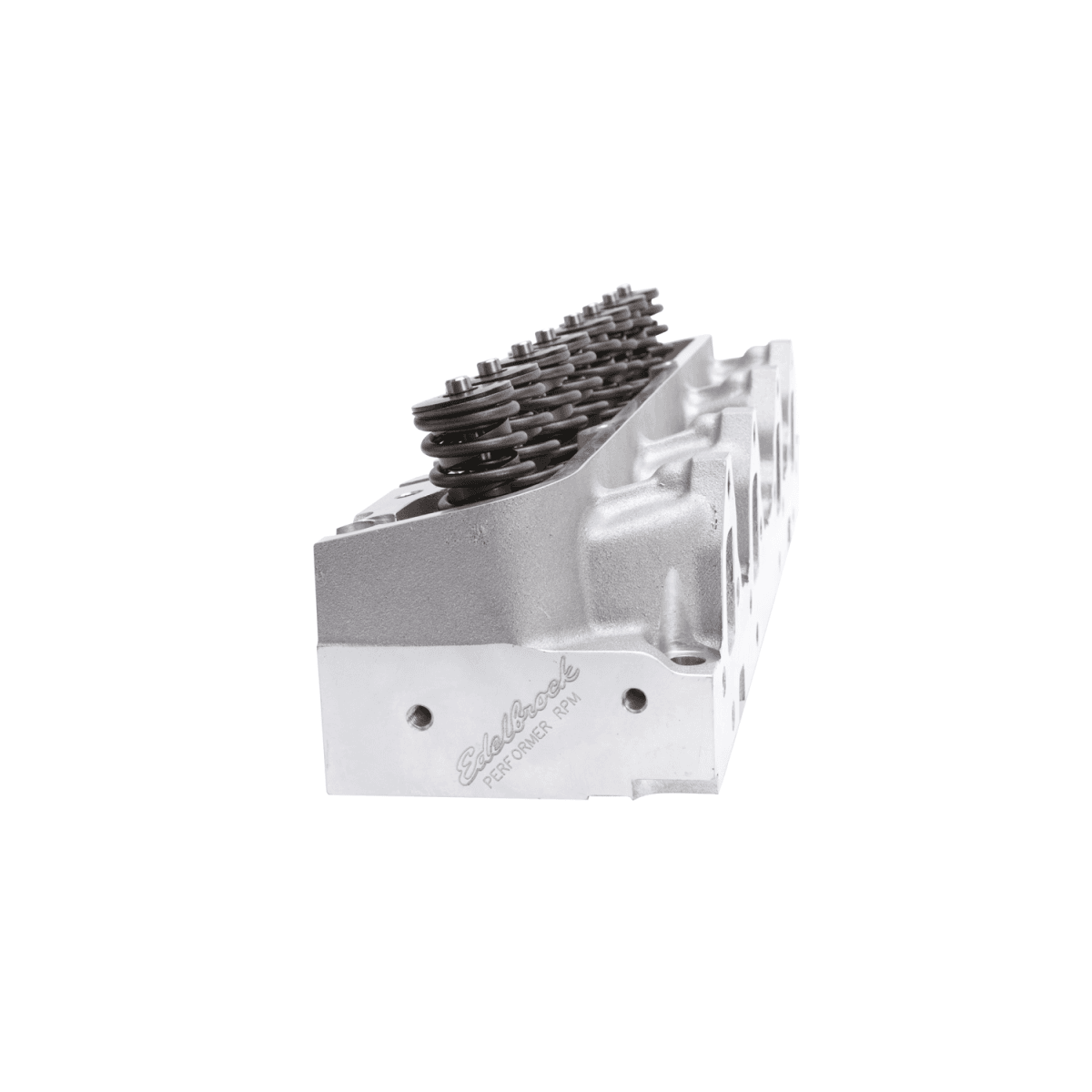

Edelbrock Performer RPM 170cc Intake Cylinder Head, Ford 390-428 FE, 72cc Chambers

Serious horsepower for your 390-428 FE Ford engine, heads sold individually and are fully assembled. The Edelbrock #60065 Performer RPM cylinder head is designed for use with 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. The Edelbrock Performer RPM aluminum cylinder heads are equipped with threaded inserts in the rocker studs and exhaust manifold bolt holes, enhancing their strength and durability. Additionally, they come with hardened seats, bronze valve guides, and meticulously machined valve cover rails to ensure a reliable gasket seal. These heads deliver enhanced power across the RPM range, resulting in improved throttle response and increased top-end horsepower.

Note: Valve springs are recommended for hydraulic roller style camshafts. Edelbrock stud kit EDL-6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. Heads have the 16-bolt 428 Cobra Jet exhaust flange bolt pattern.

Part Number	EDL-60065
Part Type	Cylinder Heads
Combustion Chamber Volume (cc)	72
Intake Runner Volume (cc)	175cc
Exhaust Runner Volume (cc)	125cc
Cylinder Head Style	Assembled
Cylinder Head Material	Cast Aluminum
Intake Port Shape	Rectangular
Intake Valve Diameter (in)	2.090 in.
Cylinder Head Finish	Natural
CNC-Machined Combustion Chamber	No
CNC-Machined Intake Runner	No
CNC-Machined Exhaust Runner	No
Intake Port Location	Standard
Exhaust Port Shape	Square
Exhaust Port Location	Standard
Intake Valves Included	Yes
Exhaust Valves Included	Yes
Exhaust Valve Diameter (in)	1.660 in.
Valve Springs Included	Yes
Maximum Valve Lift (in)	0.600 in.
Camshaft Style	Hydraulic Roller
Outside Diameter of Outer Spring (in)	1.550 in.
Damper Spring Included	Yes
Number of Springs Per Valve	Dual
Retainers Included	Yes
Retainer Material	Steel
Locks Included	Yes
Lock Style	7 Degree
Valve Stem Seals Included	Yes
Rocker Arm Studs Included	No
Rocker Arms Included	No
Rocker Arm Nuts Included	No
Guideplates Included	No
Accessory Bolt Holes Drilled	Yes
Intake Valve Angle	13
Valve Guides Included	Yes
Valve Guide Material	Manganese bronze
Valve Seats Machined	Yes
Valve Seat Machine Style	3-angle
Valve Seat Material	Ductile iron
Steam Holes Drilled	No
Oiling Style	Through head
Machined for O-Ring	No
Heat Crossover	No
Quantity	Sold individually.
