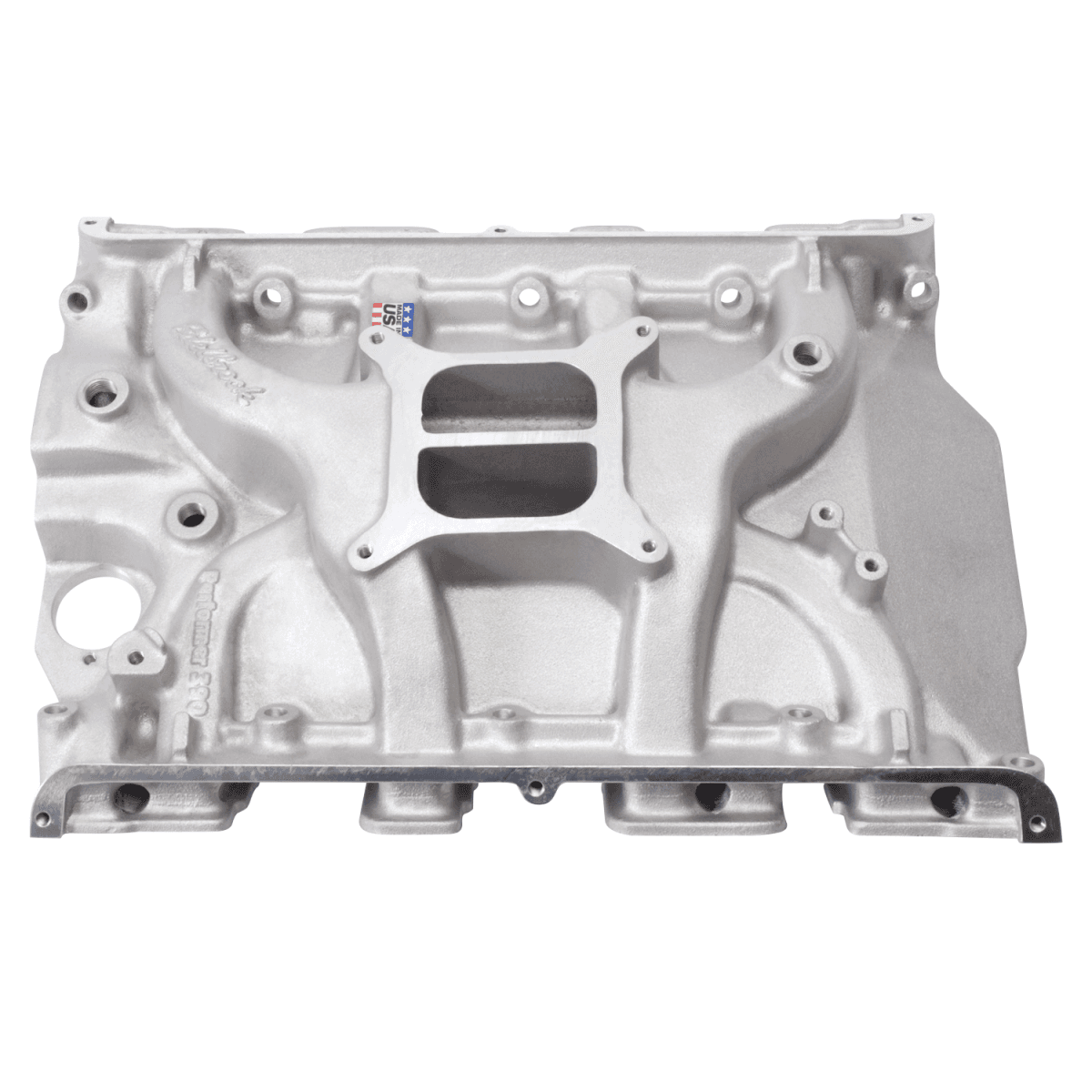

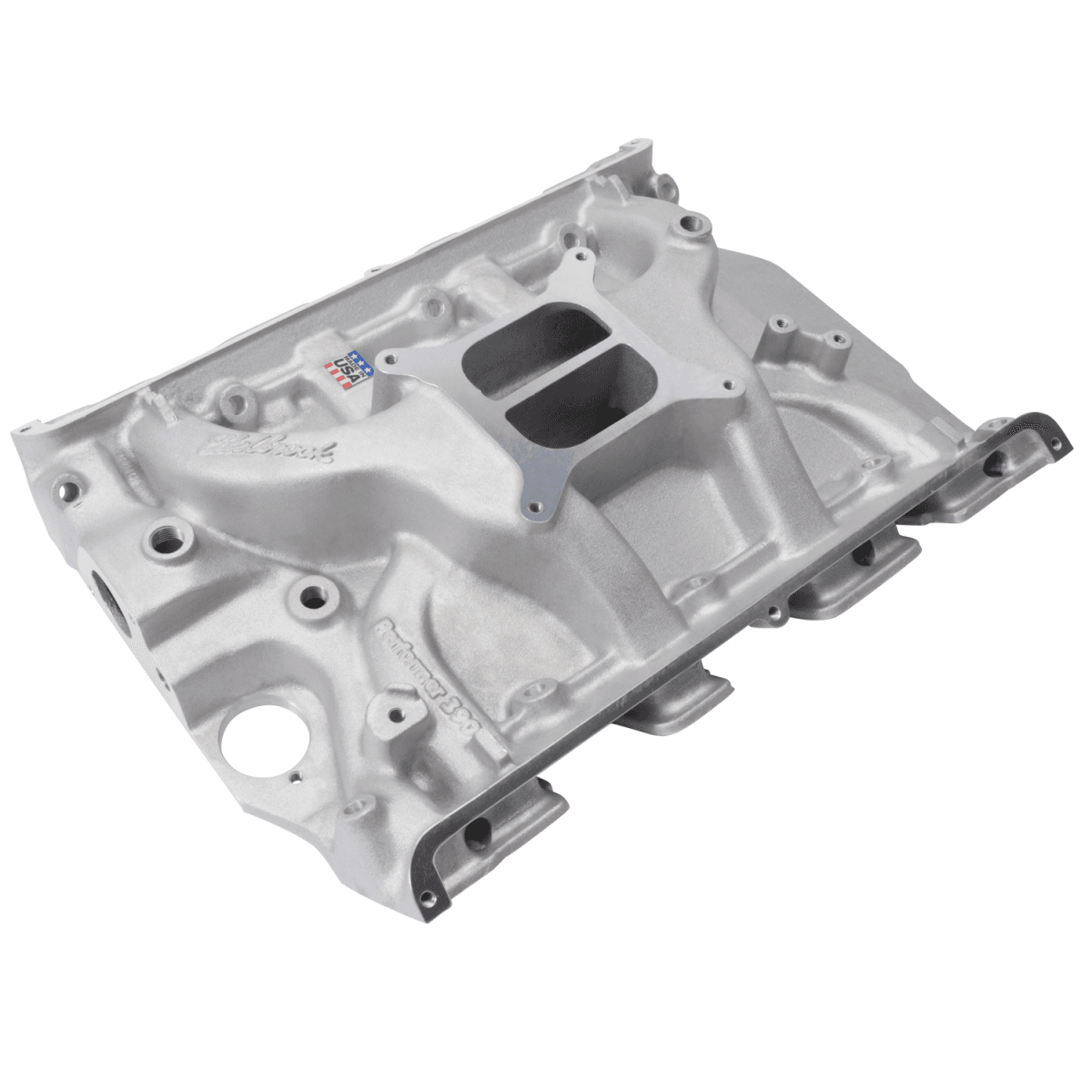

Edelbrock part #2105 Performer 390 intake manifold is designed for street 332-428 c.i.d. Ford V8's with medium- or low-rise cylinder heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Manifold not equipped with EGR; will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 c.i.d. and 391 c.i.d. Ford truck V8's.
Note: Recommended to use with Edelbrock Ford FE Heads PN: EDL-60065. Will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 and 391 C.I.D. Ford truck V8 engines. On some models, there are dowel pins in the front valley gasket surface of the engine block. Remove any dowel pins before test fitting or installing the intake manifold.
Part Number:
|
EDL-2105 |
Intake Section Included:
|
Complete |
Engine Block Deck Height:
|
Standard deck
|
Intake Style:
|
Dual plane
|
Basic Operating RPM Range:
|
Idle-5,500
|
|
Satin Finish |
Intake Material:
|
Aluminum |
EGR:
|
No |
Quantity
|
Sold individually.
|
