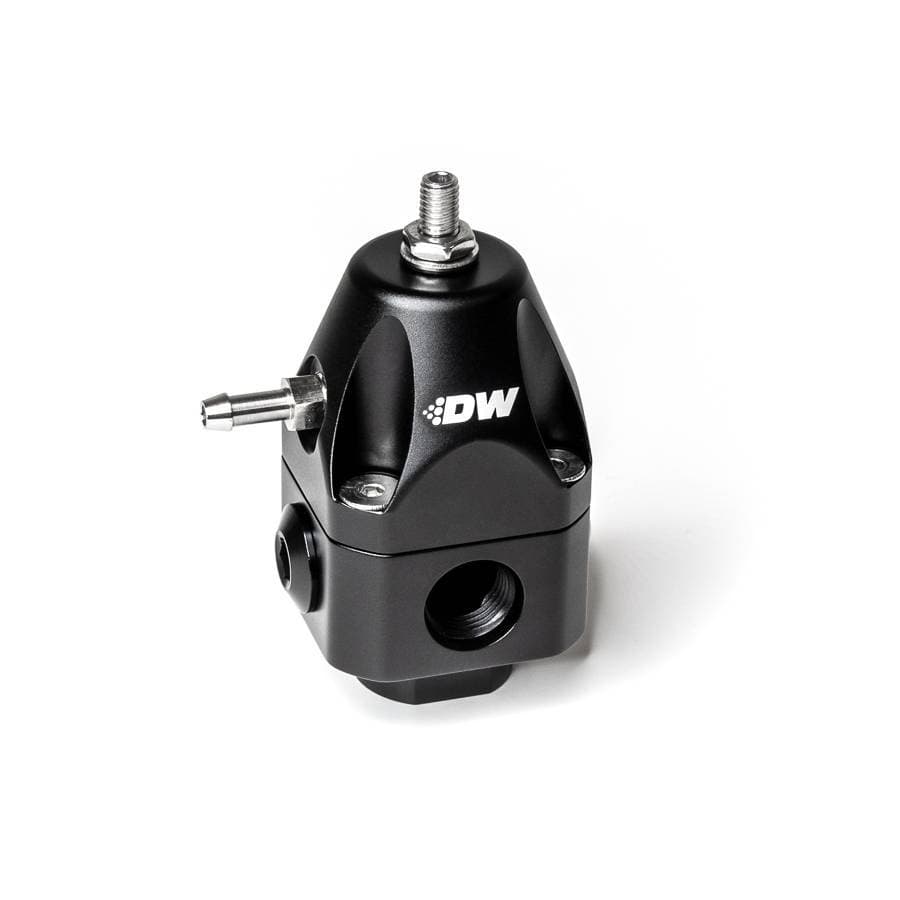

DWR1000c DeatschWerks Fuel Pressure Regulator - Black

The DWR1000c compact regulator is engineered to support EFI engines producing between 250HP and 1000HP. This regulator features the optimum balance of fitment versatility, premium construction, and precision performance. It is available in your choice of black or titanium finish.
• Precision performance and versatility of up to 1,000HP
• -6AN ORB inlets, -6AN ORB outlet
• Compatible with all fuels including methanol and ethanol
• 2 psi per turn precision ball bearing adjustment
• Multi-directional bracket for Installation flexibility
• 3 Year Comprehensive Warranty

Included: (1) DWR1000c DeatschWerks Fuel Pressure Regulator

Adjustable fuel pressure regulators are simple mechanical devices that have not changed much over the decades and are often taken for granted. However, if you have ever experienced a failed diaphragm, fluctuating fuel pressure, or hot/cold start issues that inferior regulators can cause, you will appreciate the DWR1000 and DWR2000 adjustable fuel pressure regulators.  Development of the DW regulators started with a comprehensive evaluation of the popular regulators already on the market. DW regulators were benchmarked against 5 of the leading regulators on the market and designed to outperform all across multiple categories.

Specifications
Weight: 6.9 oz (196 g)
External Materials: Anodized T6061
Hardware/Brackets: 300 Stainless Steel
Tension Spring: Stainless Spring Steel
Diaphragm: 35mm Fiber-Viton
Pressure Range: 30-120psi
Flow Rating: 500 LPH
HP Rating: 1000 HP
Gauge Port Fitting: 1/8" NPT
Inlet Ports Quad: -6AN ORB (Sides)
Outlet Ports Single: -6AN ORB (Bottom)

Designed with Ethanol in Mind
DW regulators were designed to be 100% compatible with ethanol-based fuels. The corrosive nature of modern ethanol containing fuels will create significant issues for regulators that are not designed specifically for use in this environment. DW regulators utilize stainless hardware, nitrile-fiber diaphragms, anodized housings, and are of-course 100% brass free in their construction.

Precision Pressure Adjustment
DW regulators incorporate several design features that allow precision pressure adjustment ranging from 30-100 PSI. The ball-bearing adjustment mechanism combined with a 2 psi-per-turn pressure ratio makes dialing in your desired target pressure an easy task. In addition, the massive 45mm diaphragm maintains that set pressure with unrivaled accurately.

DWR1000 and DWR2000 Meet all Your Fueling Needs
DW offers their adjustable fuel pressure regulator in 2 different sizes. The DWR1000 is designed for 300-1000hp and features -8 ORB inlets and -6 ORB outlet. The DWR2000 is designed for 750-2000hp and features -10 ORB inlets and -8 ORB outlet. Both regulators feature a multi-positional mounting bracket, integrated 1/8” NPT gauge port, and semi-compact 60mm footprint for maximum installation flexibility. A 0-100psi pressure gauge is also available.
