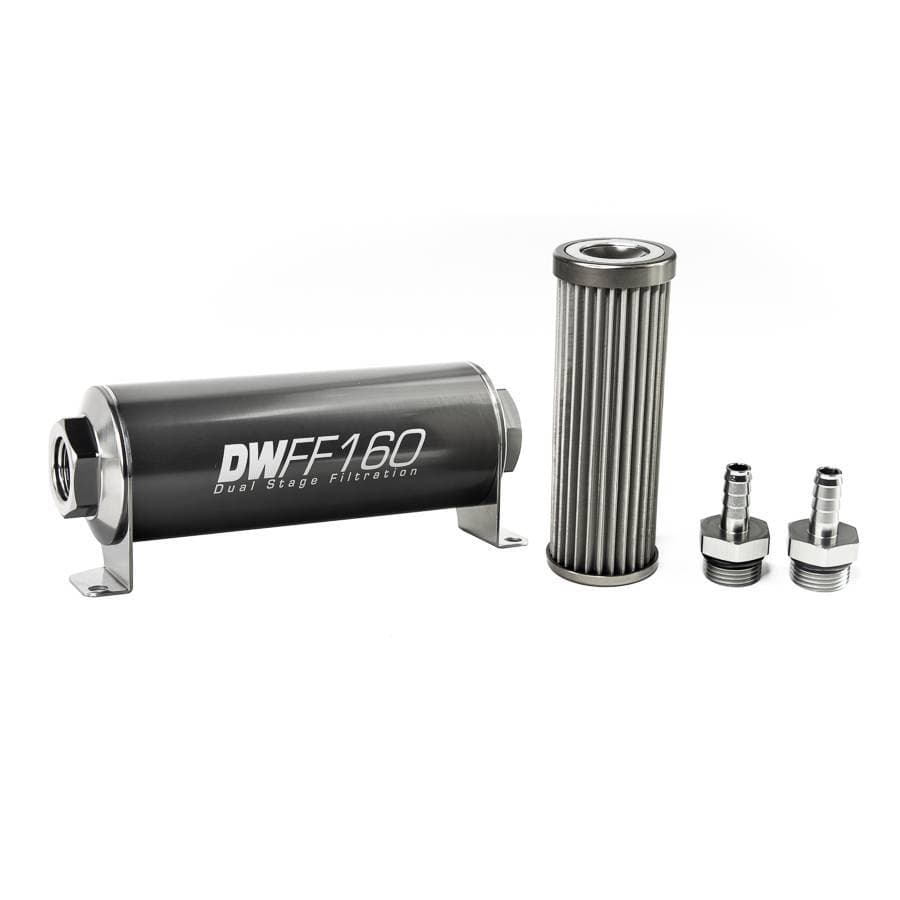

DeatshWerks In-Line Universal Fuel Filter Kit - Stainless Steel 40 micron, 3/8in Hose Barb, 160mm

This is a DW universal in-line fuel filter element and housing kit, with stainless steel 40 micron, 3/8in Hose Barb, 160mm. Today's ethanol-enriched fuels are more corrosive than the fuels of the past. High-octane premium grade pump gas can contain up to 15% ethanol and e85 is becoming increasingly popular as an inexpensive readily available race fuel. Regardless of what fuel you prefer, protecting your expensive fuel system components from the corrosive nature of ethanol is more important than ever. The DW dual-stage magneto-mechanical fuel filters were developed specifically to address the issues with modern day fuels.

Included: (1) DeatshWerks In-Line Universal Fuel Filter Kit - Stainless Steel 40 micron, 3/8in Hose Barb, 160mm Housing

Dual Stage Offers Twice the Protection
Stage One – Magnetic Filtration
Fuel system corrosion caused by ethanol-blended fuels can release ferrous contaminants that destroy expensive fuel injectors and pumps. Stage one filtration traps these contaminants with a 35mm neodymium magnet. The magnet is placed at the filter inlet, which maximizes contact with the incoming fuel and creates zero flow restriction.

Stage Two – Mechanical Filtration
Non-ferrous material makes up the majority of fuel system contaminates and are trapped in stage two. This stage utilizes conventional and proven mechanical filtration methods. All DW filters feature serviceable pleated 304-series stainless steel elements, which provide a large surface area for maximum filtration capacity and minimum flow restriction. Stainless steel elements are the premium and simple choice due to their compatibility with all fuels including pump gas, race gas, MTBE, ethanol, methanol, and diesel. In addition, stainless steel elements provide higher temperature tolerances and longer life spans over competitors’ glass fiber and paper filter elements.
