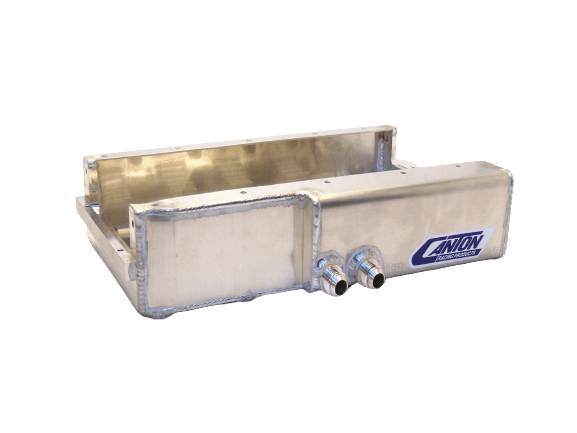

Dart LS Next Dry Sump Drag & Road Racing Canton Race Oil Pan

Our LS NEXT dry sump oil pan is designed to take the changes that Dart has made to the LS block and maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end.

Note: Stock LS starter required. Meziere starter will require some modification to oil pan. Will not fit on LS Next 2 blocks.

Features: Dart LS Next Dry Sump, designed to take the changes that Dart has made to the LS block and maximize their effectiveness.

Oil Pan Part #: 12-280A for Dart LS Next Blocks, (Does not fit LS Next 2 blocks)

Oil Pan Features:
Pro Style Oil Recovery Pouch
Machined Billet Front & Rear Seals

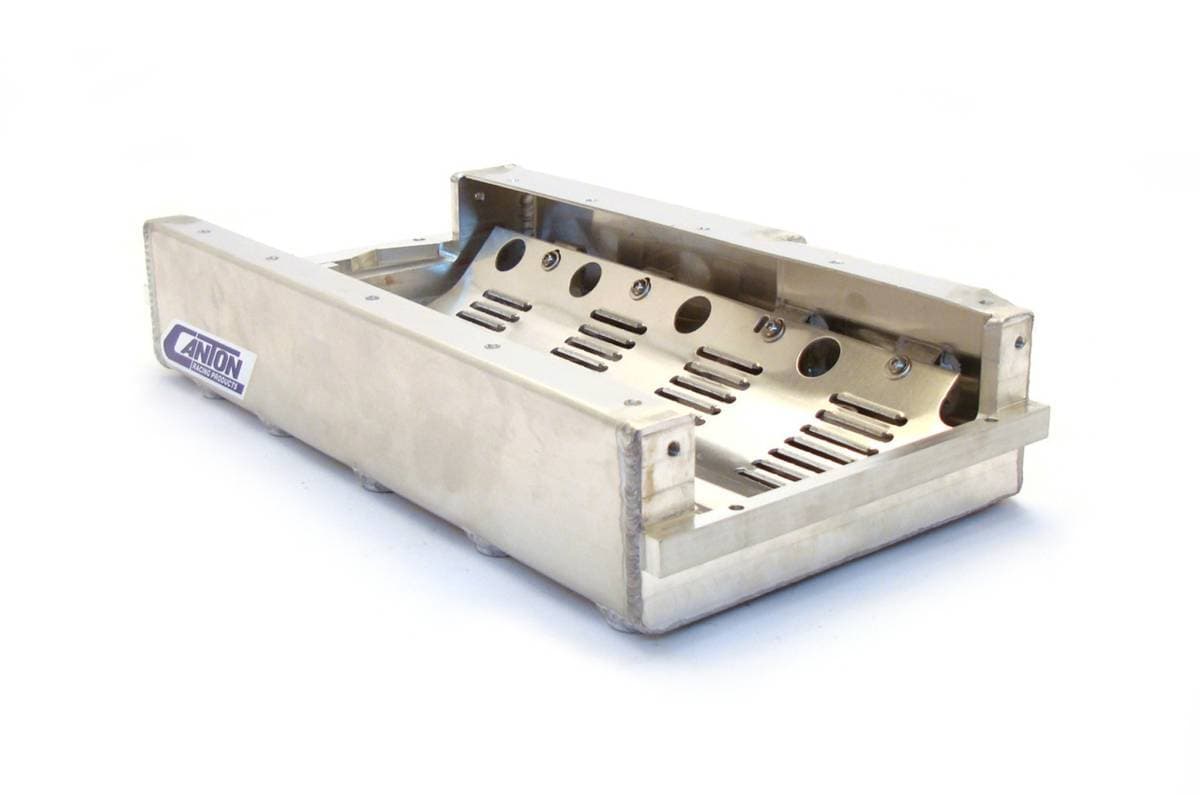

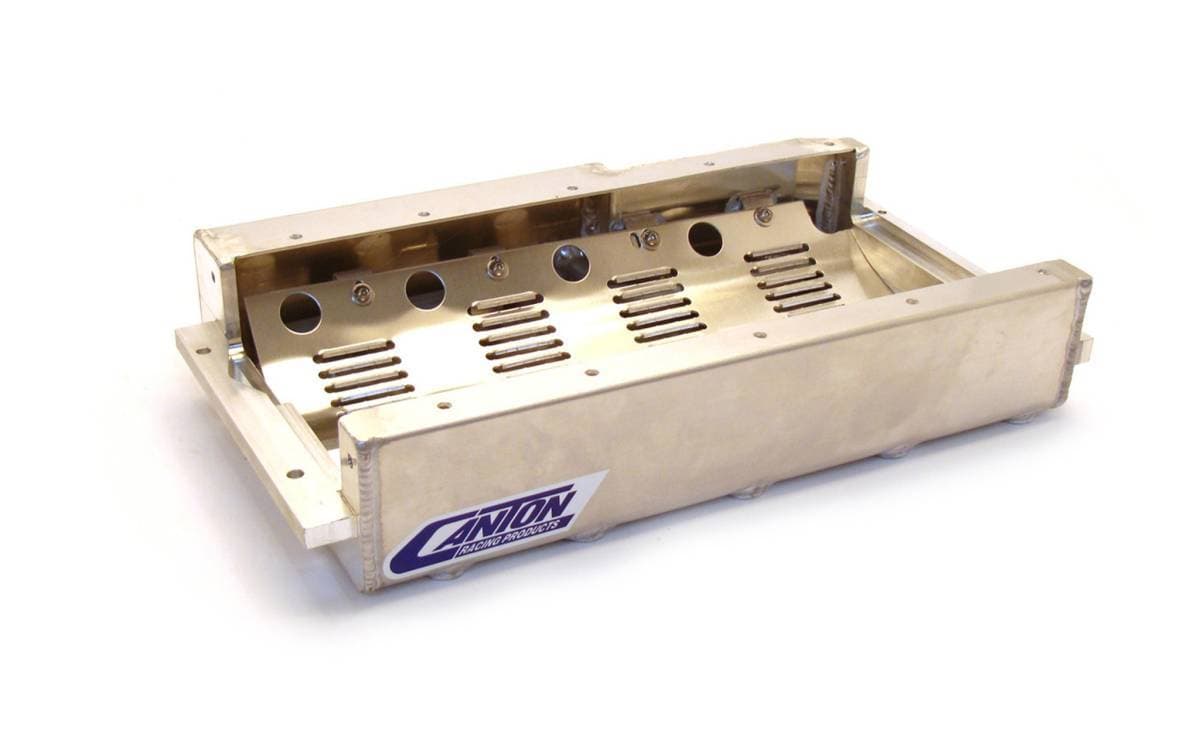

Built in louvered Windage Tray
Magnetic Drain Plug

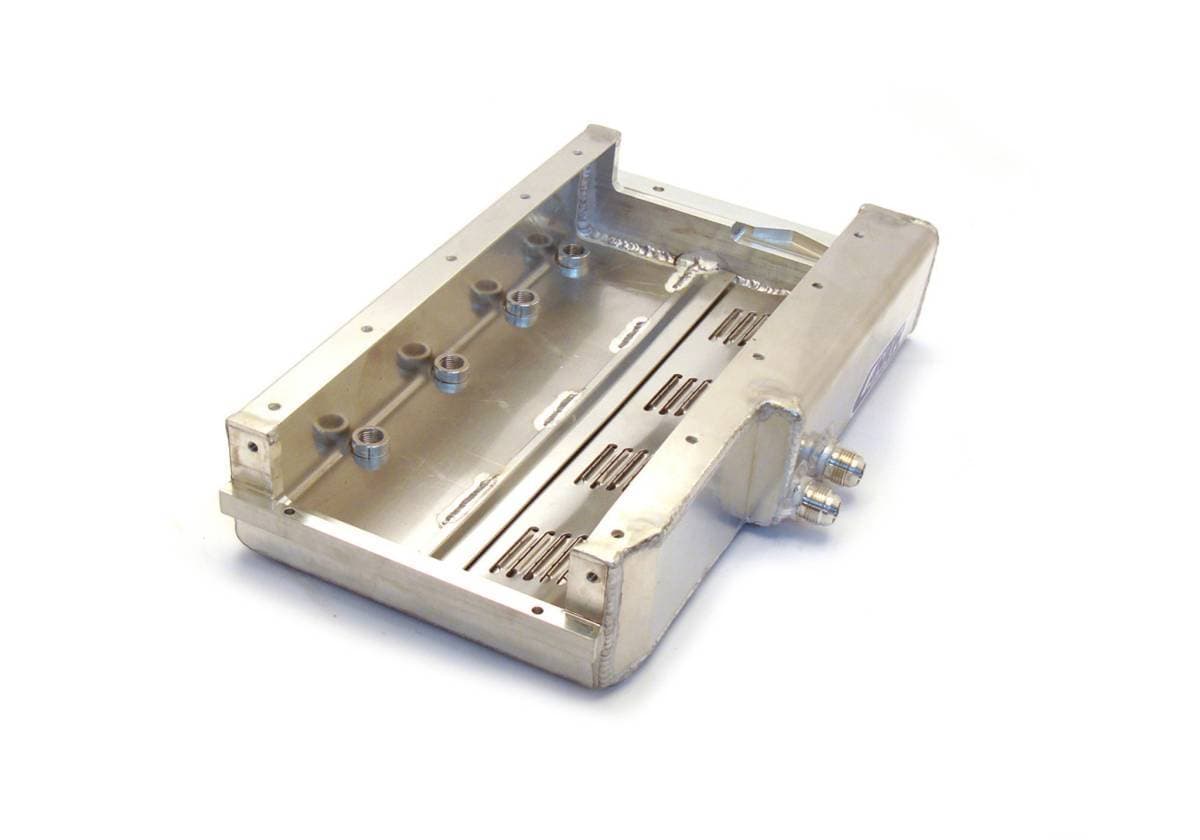

Two -12AN pickups on passenger side

Recommended Accessories:
PART #: 22-304 - Dart LS Next Oil Pan Stud Kit
PART #: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
PART #: 22-630 - GM LS1 Remote Oil Filter Adapter
PART #: 22-750 - -12 AN Screen Pump Protector
PART #: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
PART #: 23-110R - 10qt Universal Dry Sump Tank w/ Right Side Fittings

Gaskets:
PART #: OEM Gasket

Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
