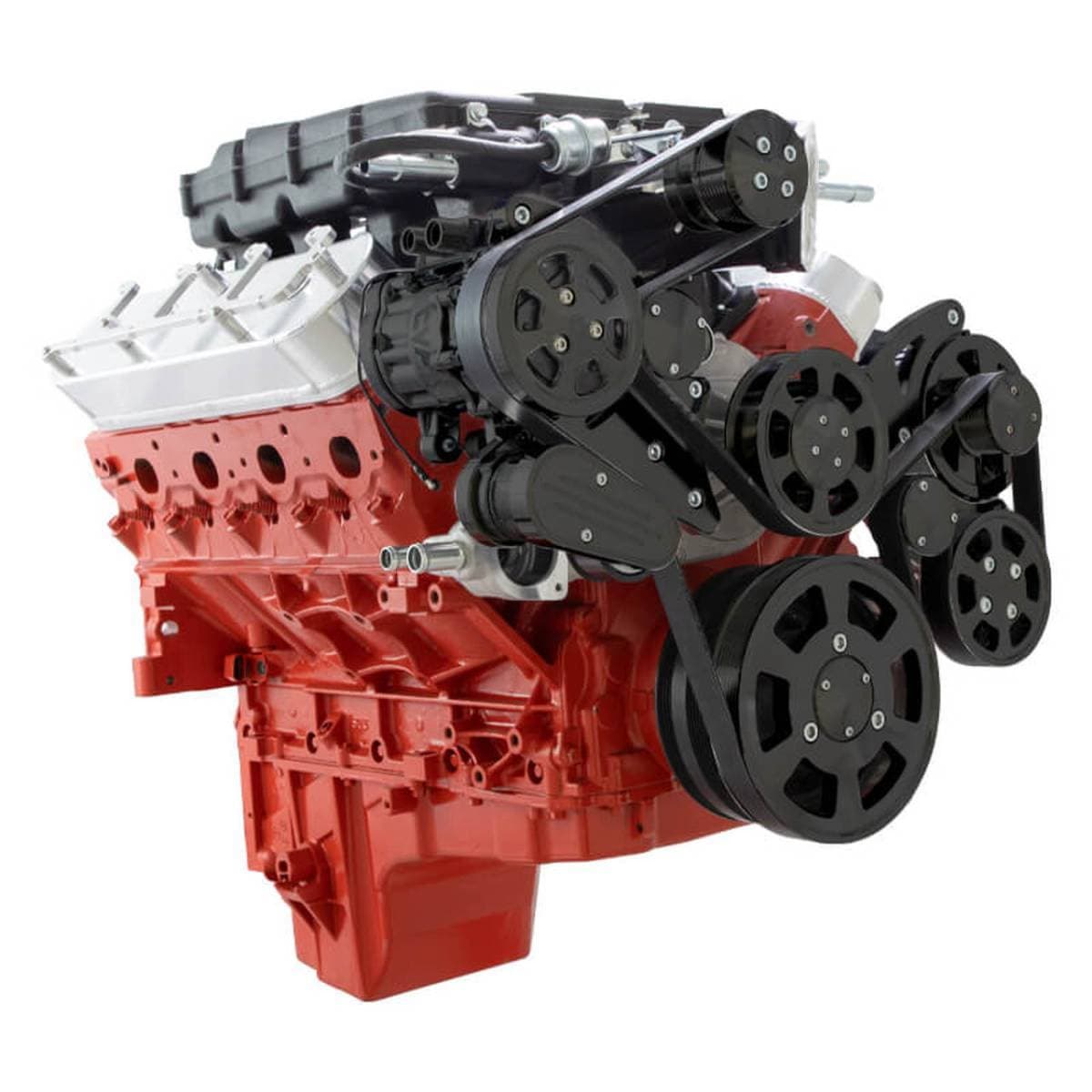

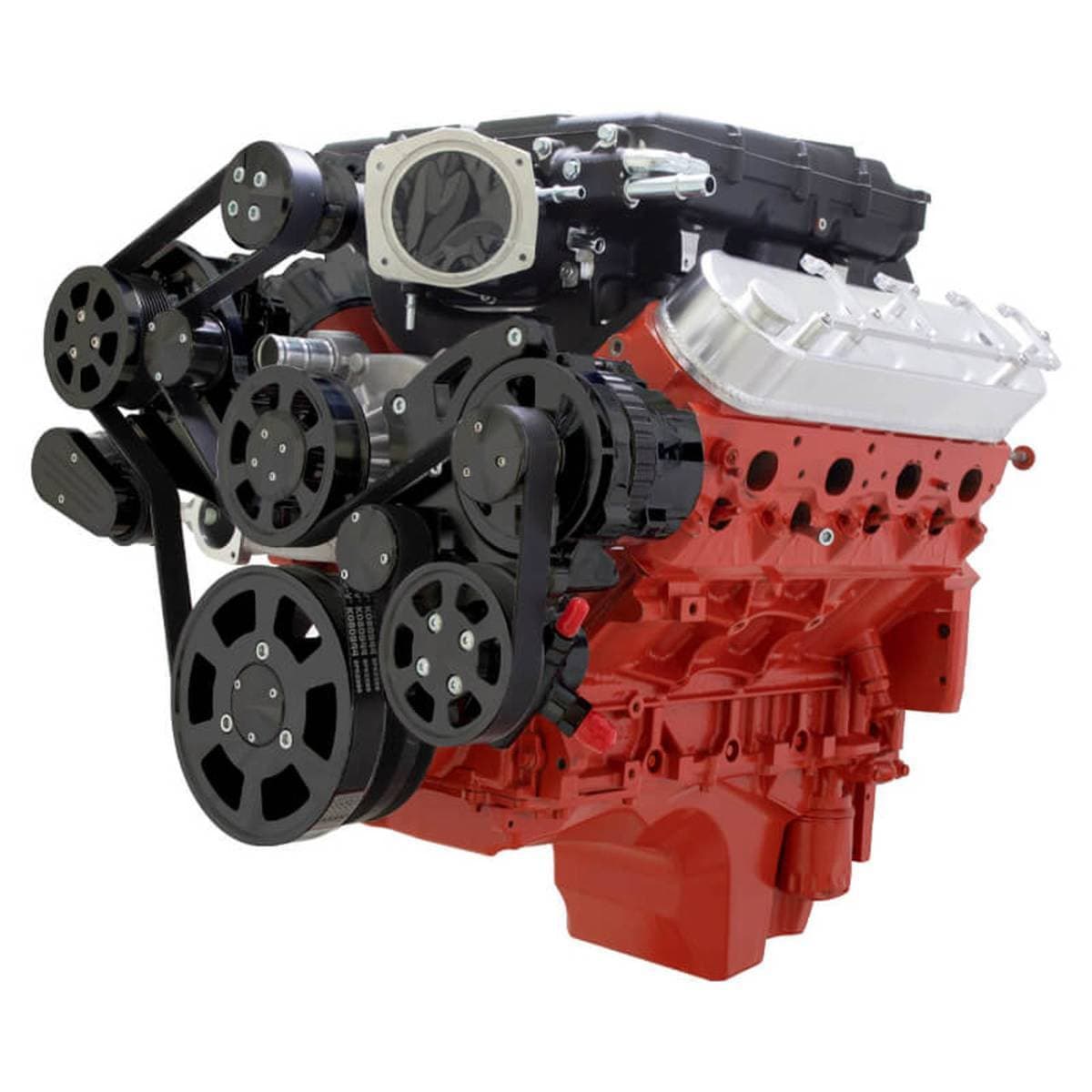

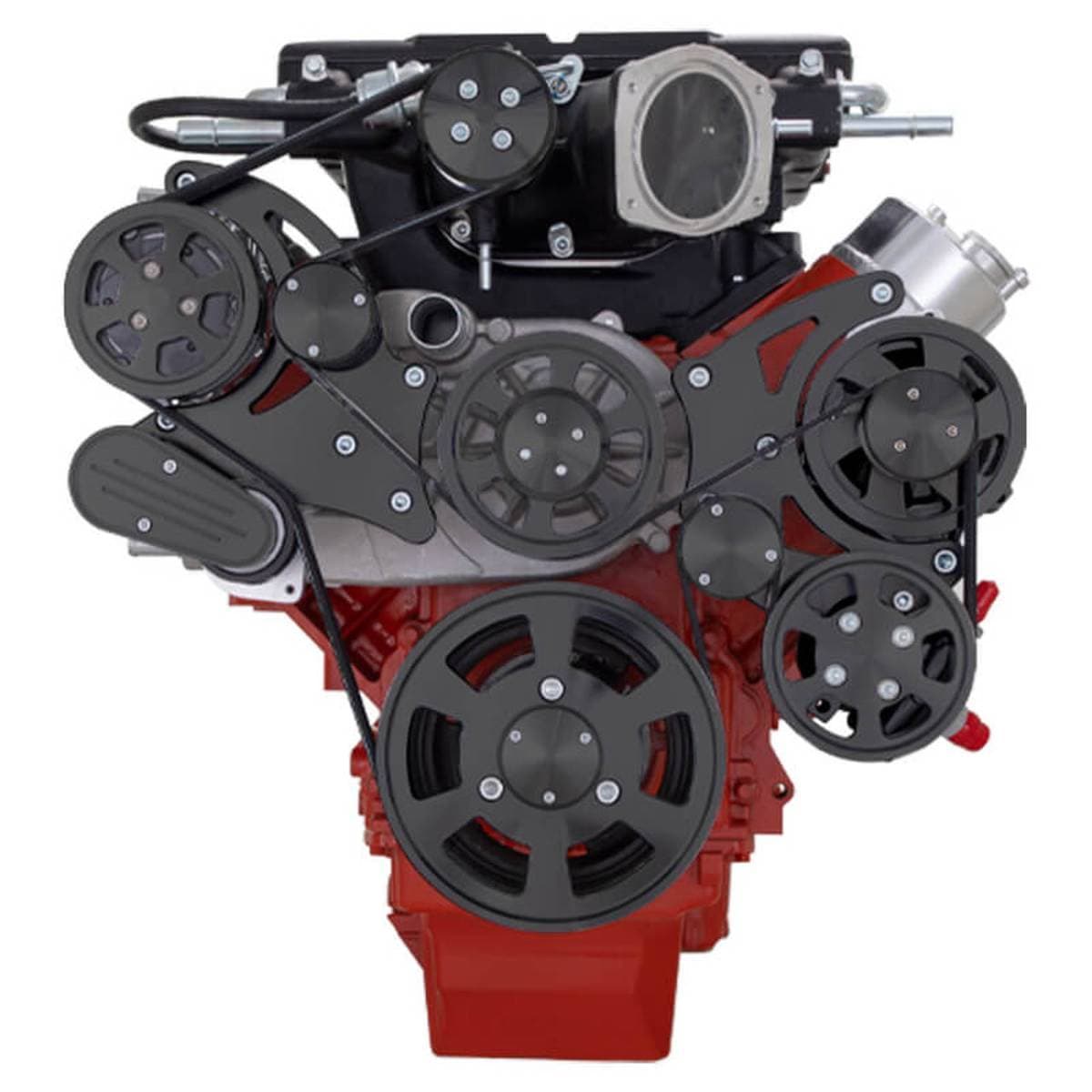

This is the Wraptor 8-Rib Serpentine System for Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.
This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.
This kit will fit LS Based Engines with Camaro or Truck spacing. Requires harmonic dampener or hub adapter if reusing oem balancer*
Note: Does not include the Magnuson TVS2300 Headunit see the product options or see PN: 05-00-23-060-BL, This item has many options see the blue "choose product options" button to configure your system!
Wraptor System Includes:
High Flow Aluminum Water Pump
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator
Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Gates Premium 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley (can be removed in the product options)
Gates Spring Loaded Idler Pulley
Single Piece Bracket
Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
Billet alternator fan
Blower Snout Hub Adapter
Blower Pulley with Cap
Compatible Upgrades:
Option to add a Magnuson Head Unit available
Application Notes:
Fits LS Based Engines with Camaro or Truck spacing
Power Steering Lines from pump to reservoir not included
Some drive by wire applications may require Holley part# 717-15
Call for different blower pulley ratios
This kit requires harmonic dampener or hub adapter if reusing oem balancer
