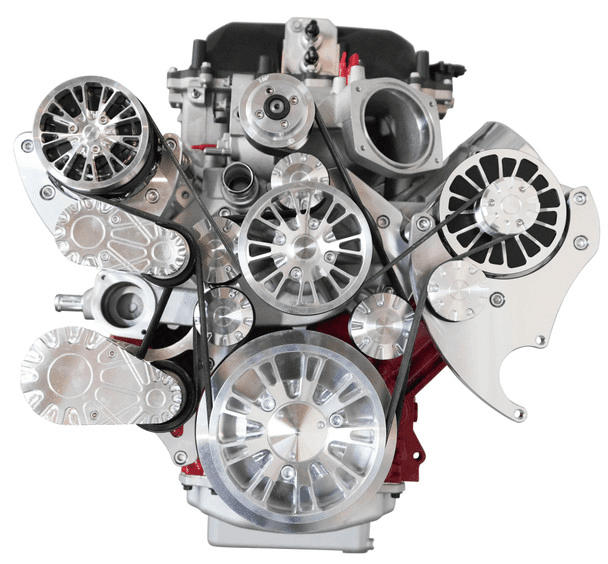

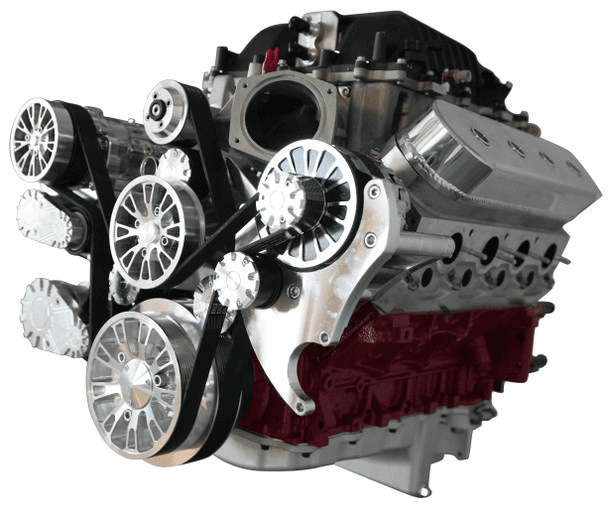

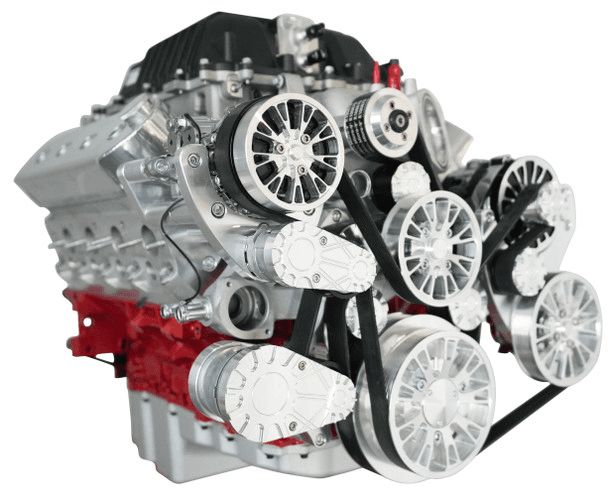

CVF Wraptor LS 10-Rib FEAD System For Magnuson TVS2650 With Alternator AC and Power Steering - Polished

Billet aluminum 10 rib dedicated supercharger drive & 8 Rib accessory drive set up. The Reaper raises the bar for the serpentine market and there is truly nothing like it. It features an innovative bracket design, stainless steel hardware, and billet aluminum spacers. Proudly CNC machined in the USA, the Reaper ensures top-notch performance and eye-catching style, all supported by a lifetime warranty.

This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.

This kit will fit LS Based Engines with Camaro LS3 or Camaro/CTS-V LSA beltline. This system requires ATI Super Damper balancer.

Note: Does not include the Magnuson TVS2650 Headunit see the product options or see PN: 05-26-62-163-BL, This item has many options see the blue "choose product options" button to configure your system!

Wraptor System Includes:
High Flow Aluminum LS1 Water Pump
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator; upgradable to 300 amps
Sanden Style Peanut Compressor with 8 Rib Clutch (can be removed in the product options)
Polished AC Compressor Fitting (can be removed in the product options)
Polished Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Gates Premium 10 & 8 Rib Belts
Water Pump Pulley
Crank Pulley
Alternator Pulley
Power Steering Pulley (can be removed in the product options)
Spring Loaded Belt Tensioner with patent pending adjustable bracket
Billet Aluminum Brackets
Black Anodized Hub Adapter for attaching crank pulley to SFI or ATI balancers.
Billet Compressor Clutch Cover (can be removed in the product options)
Billet alternator fan
Stainless Steel Mounting Hardware
Billet Spacers

Compatible Upgrades:
Option to add a Magnuson Head Unit available

Application Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydro-boost
Requires Magnuson TVS2650 Hot Rod LSA/LS3 Supercharger (NOT INCLUDED)
This kit requires harmonic dampener
