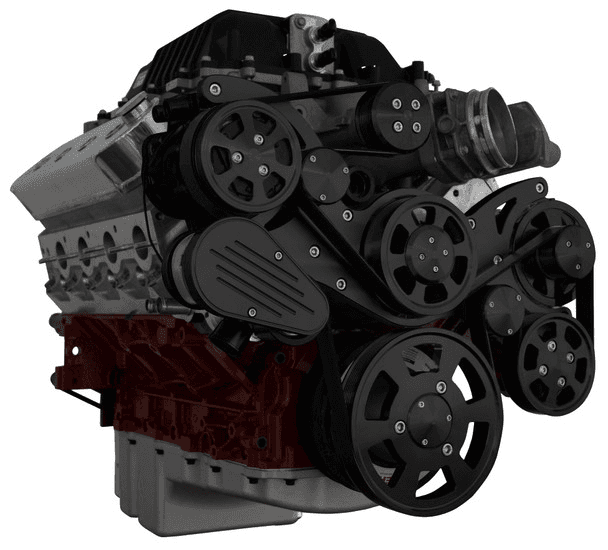

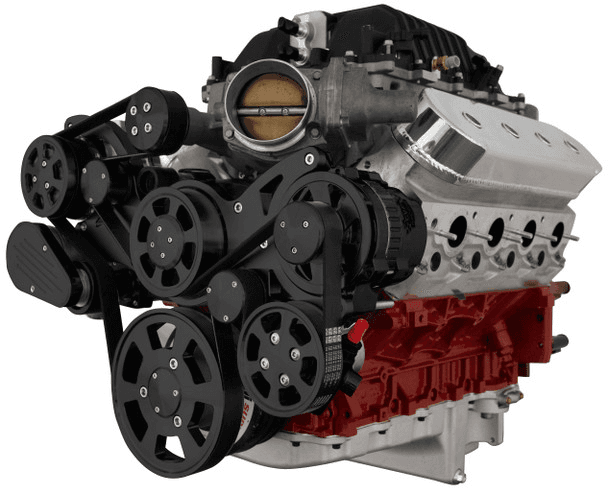

CVF Wraptor 8 Rib Black Serpentine Drive System For LS Engines Using OE LS9 Supercharger - Alternator, AC & PS (LS9 Beltline)

The WRAPTOR 8-rib Serpentine System for kit Chevy LS9 engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.

Note: This kit will fit Chevy LSA Engines. Does not include LSA supercharger.

See the blue product options button to configure your system!

Kit Includes:
High Flow Aluminum Water Pump
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator
Sanden Style Peanut Compressor with 8 Rib Clutch (can be removed in the product options)
AC Compressor Fitting (can be removed in the product options)
Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Gates Premium Green Strip 8 Rib Belt
8 Rib Supercharger Pulley and Cap
Press Fit hub for Supercharger Pulley
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley (can be removed in the product options)
Gates Spring Loaded Idler Pulley
Passenger Side Compressor Bracket (can be removed in the product options)
Driver Side Power Steering / Alternator Bracket (can be removed in the product options)
Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
Billet Compressor Clutch Cover
Billet alternator fan

Specs:
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-Mount
Supercharger: OEM LS9
Finish: Black
Belt Type: Serpentine 8 rib
Water Pump Type: Mechanical
Water Pump: LS1
Water Pump Rotation: Reverse
Engine Fitment: LS1, LS2, LS3, LS6 & LS7 Engines

Applications Notes:
Power Steering Lines from pump to reservoir not included.
Compatible with Hydroboost ($275 option)
Standard 3" pulley provides 8.6 PSI boost.
Some drive by wire applications may require Holley part# 717-15
Call for aftermarket superchargers.
Optional Blower (Tuner) Pulley Kit is available.
Not compatible with 102mm intake
LS9 Kits Include New Edelbrock Water Pump
