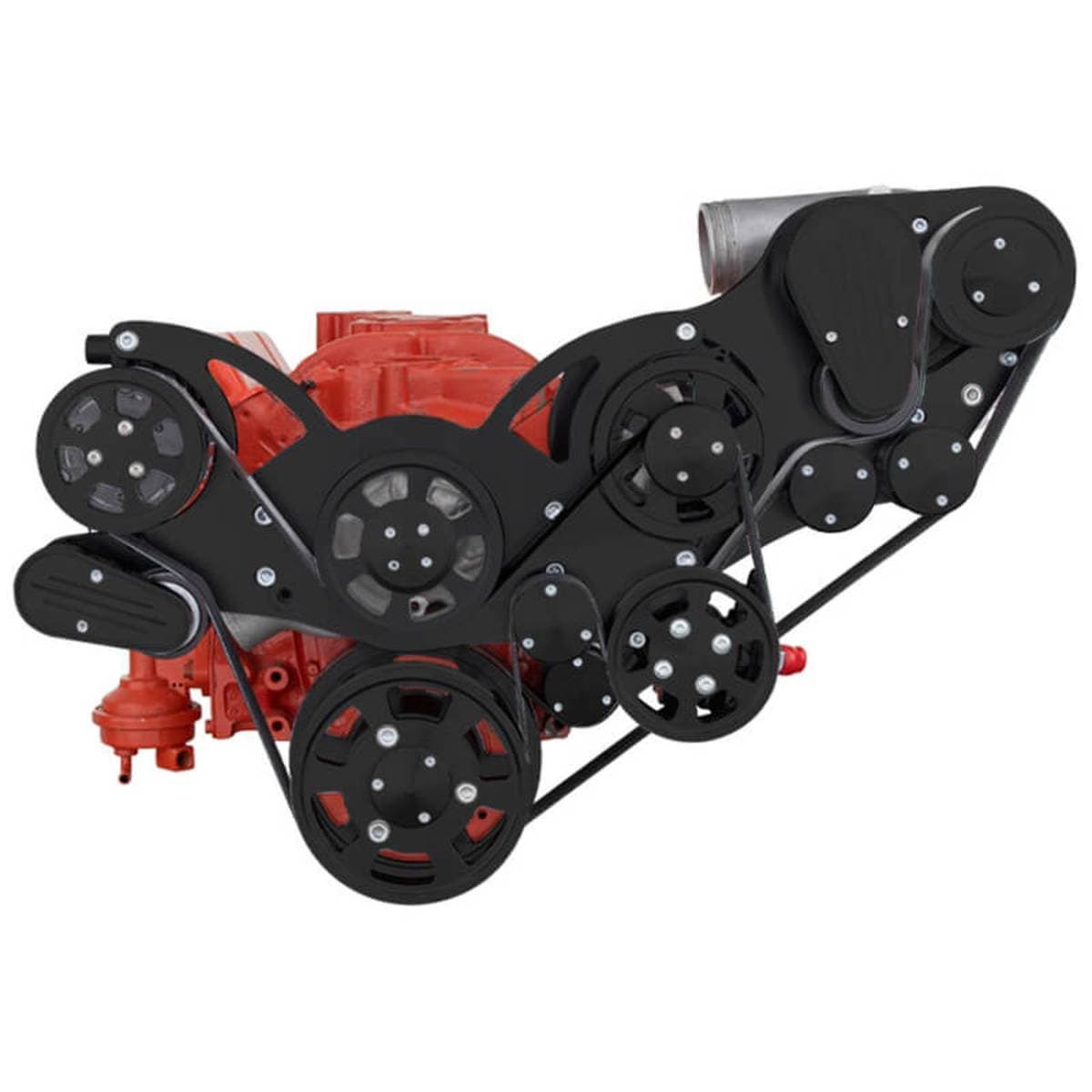

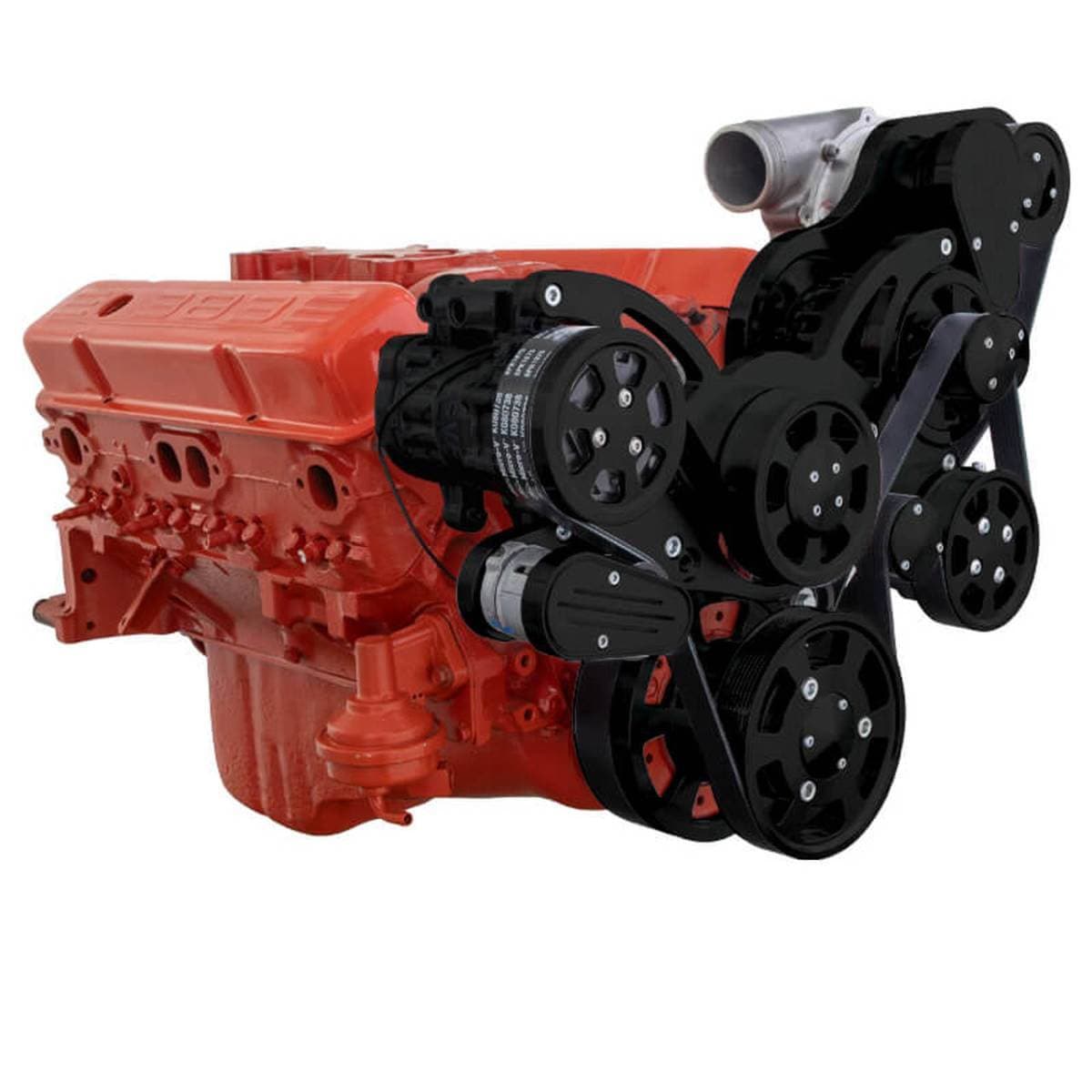

This is the all-inclusive Wraptor 10-Rib dedicated supercharger drive and 8-rib accessory drive Serpentine System for kit Chevy Small Block engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring-loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.
This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.
This kit will fit 283, 302, 305, 327, 350, and 400 Small Block Chevy Engines.
Note: This system does not include a ProCharger headunit, compatible with P-1SC, P1X, D-1, D-1X Headunits
*If your looking to make 1000+ HP or any larger headunit then the D-1X see the all new ProCharger LS FEAD System! PN: 1CA400 or 1CA400-headunit name (example: 1CA400-F2)
ProCharger Kit Includes:
Billet Aluminum Bracket
10 Rib Supercharger Pulley
Gates Spring Loaded Tensioner
Idler Pulley(s)
Crank Pulley
10 Rib Belt
Mounting Hardware
Wraptor System Includes:
High Flow Aluminum Water Pump
140 Amp, 1-Wire CS130 Alternator
Sanden Style Peanut Compressor with 8 Rib Clutch
Compressor Clutch Cover
AC Compressor Fitting
GM Type II Power Steering Pump
Remote Reservoir
Gates Premium Green Strip 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley
Gates Spring Loaded Tensioner
Billet Aluminum Bracket
Alternator Fan
Application Notes:
Optional Procharger Head Units available: D-1SC, D-1X, P-1SC, P-1X
Power Steering Lines from pump to reservoir not included
