This is the all-inclusive Wraptor 10-Rib dedicated supercharger drive and 8-rib accessory drive Serpentine System for kit Chevy Big Block engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring-loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.
This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.

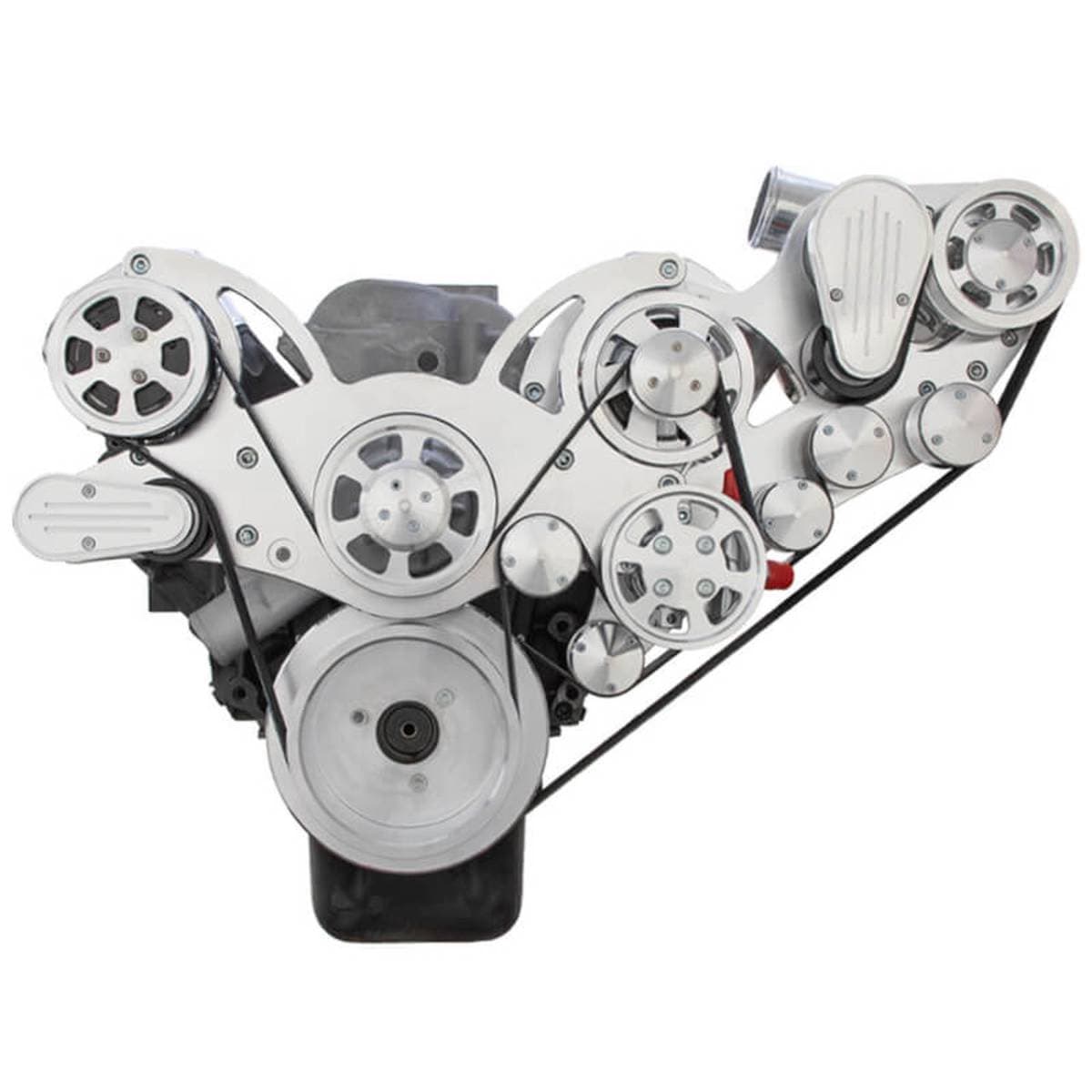

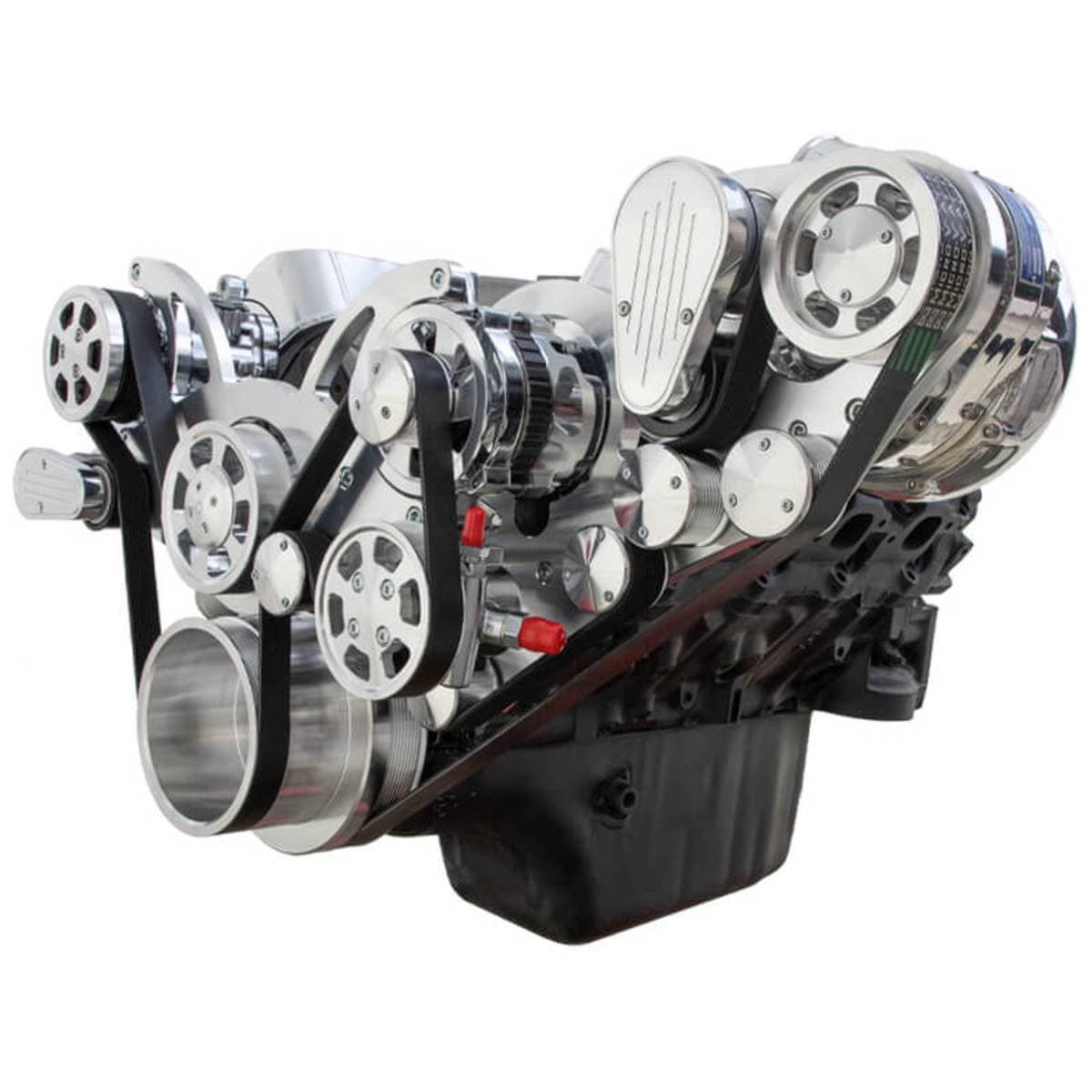

The image is for example only. The original product will come in a black finish, Requires Power Steering Pump. This kit will fit 396, 427, and 454 Big Block Chevy Engines.
Note: This system does not include a ProCharger headunit, compatible with P-1SC, P1X, D-1, D-1X Headunits. A 4.08" SC pulley is included, a 3.07" SC Pulley can added in the product options!
*If your looking to make 1000+ HP or any larger headunit then the D-1X see the all new ProCharger BBC FEAD System! PN: 1CB400 or 1CB400-headunit name (example: 1CB400-F2)
ProCharger Kit Includes:
Billet Aluminum Bracket
10 Rib Supercharger Pulley
Gates Spring Loaded Tensioner
Idler Pulley(s)
Crank Pulley
10 Rib Belt
Mounting Hardware
Wraptor System Includes:
High Flow Aluminum Water Pump
140 Amp, 1-Wire CS130 Alternator
Sanden Style Peanut Compressor with 8 Rib Clutch (can be removed in the product options)
Compressor Clutch Cover (can be removed in the product options)
AC Compressor Fitting (can be removed in the product options)
Gates Premium Green Strip 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Alternator Pulley
Gates Spring Loaded Tensioner
Billet Aluminum Bracket
Alternator Fan
Application Notes:
Optional ProCharger Head Units available: D-1SC, D-1X, P-1SC, P-1X
