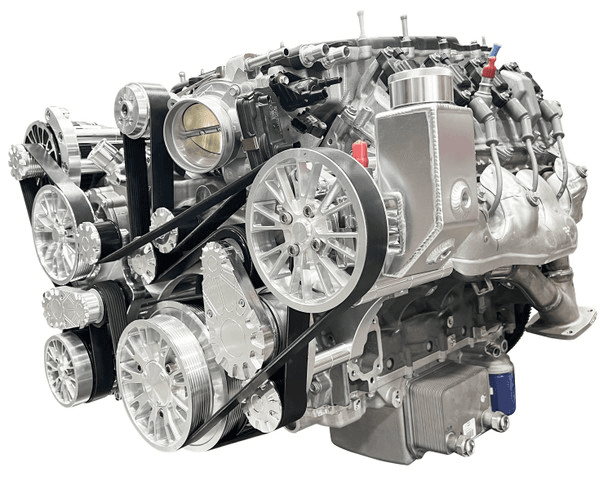

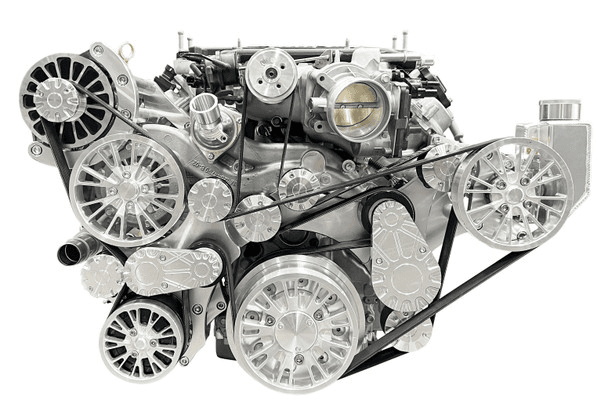

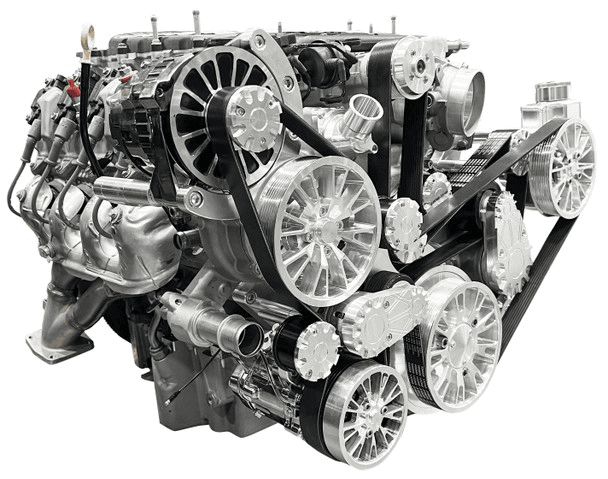

CVF Reaper Chevy LT4 Wet Sump 10-Rib Gen V Serpentine System with AC, Power Steering & Alternator - Black (All Inclusive)

Push your LT4 to its limits with the Chevy LT4 Supercharged Reaper Serpentine System — CVF Racing’s flagship billet aluminum 10 & 8 rib drive setup built for extreme horsepower applications. Proudly CNC-machined in the USA, the Reaper features an ultra-rigid billet bracket design engineered to handle the highest HP builds without flex or belt slip. A dedicated 10-rib belt drives the LT4 supercharger, while an independent 8-rib belt powers all accessories for unmatched stability and performance. With precision billet spacers, stainless hardware, and stunning show-quality finishes, this system delivers rock-solid reliability and jaw-dropping style — all backed by CVF’s lifetime warranty.

This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.

Note: This kit will fit Chevy LT4 Gen V Supercharged Engines.

See the blue product options button to configure your system!

*Notice photos are for reference system will come black.

Kit Includes:
High Flow Aluminum LT4 Water Pump*
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator; upgradable to 300 amps
Sanden Style Peanut Compressor with 8 Rib Clutch (can be removed in the product options)
AC Compressor Fitting (can be removed in the product options)
Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Premium 10 & 8 Rib Belts*
Water Pump Pulley*
Crank Pulley*
Alternator Pulley*
Power Steering Pulley (can be removed in the product options)
Spring Loaded Belt Tensioner with patent pending adjustable bracket
Billet Aluminum Brackets*
Black Anodized Hub Adapter for attaching crank pulley to ATI balancers.
Billet Compressor Clutch Cover (can be removed in the product options)
Billet alternator fan*
Stainless Steel Mounting Hardware
Billet Spacers (Anodized Clear)
Billet Thermostat Housing

Application Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydro-boost
Requires OEM LT4 Supercharger. Not compatible with other superchargers.
Requires OEM Wet Sump Engine (Cadillac CT5-V/Escalade-V/Camaro ZL1) or dry for appropriate kit
3.2:1 Supercharger Drive Ratio (8" Crank, 2.5" Supercharger Pulley)
2.3" Supercharger Pulley Available
Hub Adapter for quick change supercharger pulley included
Not compatible with LT5 Engines
Requires Remote Breather/Catch Can/Air Oil Separator for PCV System (Not Included)
