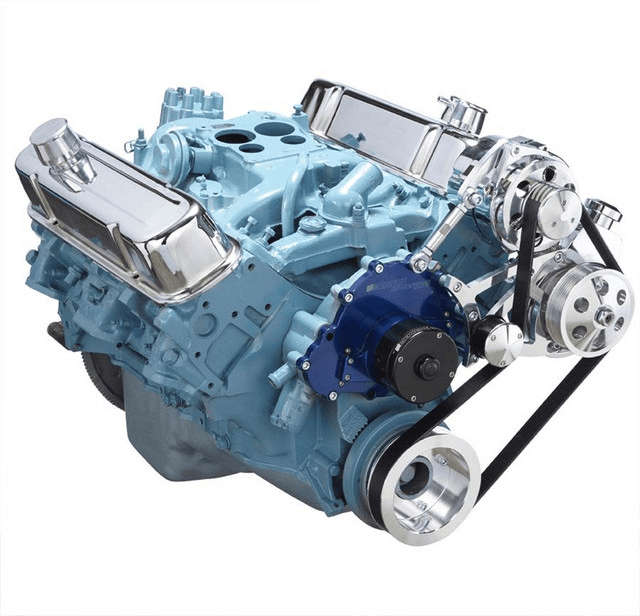

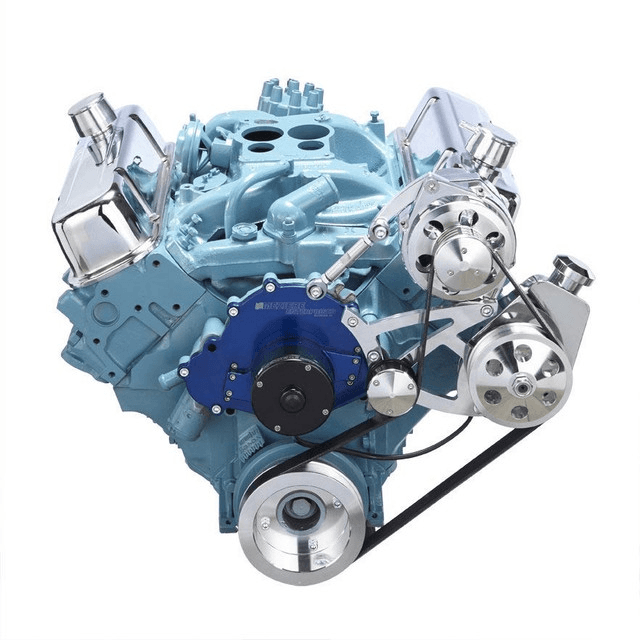

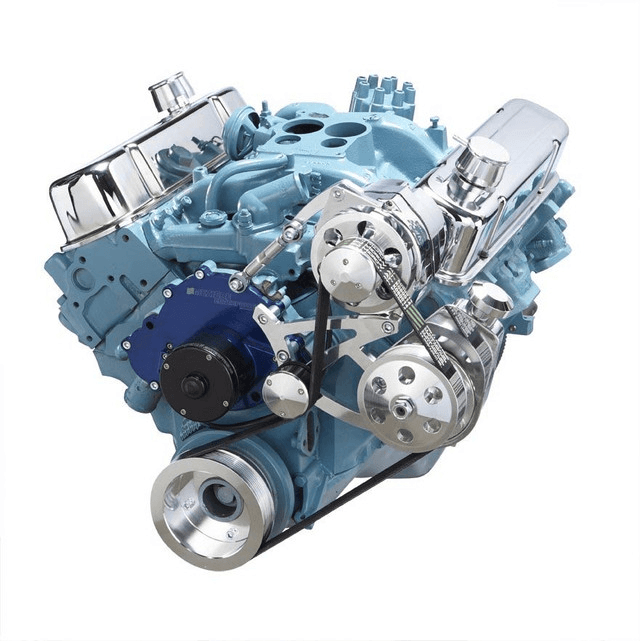

CVF Pontiac 350-400, 428 & 455 V8 Serpentine Conversion System with Power Steering & Alternator Brackets For Electric Water Pump - Polished

Complete 8 Rib Serpentine system for Pontiac engines with electric water pump, alternator and power steering.

Note: This kit will fit 350-400, 428 & 455 V8 Engines. Power Steering Pump, Alternator, AC Compressor & High Flow Water Pump Not Included

See the blue product options button to configure your system!

Kit Includes:
1 Belt Crank Pulley
1 Belt Alternator Pulley
1 Belt Keyway Power Steering Pulley
Idler Pulley
Power Steering / Alternator Bracket
ALTFAN - Universal alternator fan

Specs:
Alternator Position: High - Driver
Power Steering: Yes - Saginaw
Air Conditioning: None
Finish: Polished
Belt Type: Serpentine 8 rib
Water Pump Type: Electric
Water Pump Rotation: Standard
Engine: Pontiac 350-455 V8

Application Notes:
Requires 4 bolt pattern on Harmonic Balancer and 11 Bolt water pump that is 4.5" tall
Saginaw Keyway Power Steering Pump NOT Included.
Both GM and Pontiac Reservoir Orientation will Work.
Requires Saginaw Power Steering Pump with mounting stud in lower right corner on the back of the pump.

Generally fits the following models with original 350, 400, 428 & 455 engines installed. Note: 1969 was a transition year and you need to ensure that you have the taller 4.5" water pump.
1969-1974 Pontiac GTO
1969-1977 Pontiac Grand Prix
1969-1981 Pontiac LeMans
1969-1976 Pontiac Bonneville
1969-1976 Pontiac Firebird
1969-1976 Pontiac Transam
1969-1981 Pontiac Catalina
1978-1980 Pontiac Grand Am
1969-1972 Pontiac Tempest
1969-1977 Pontiac Ventura
