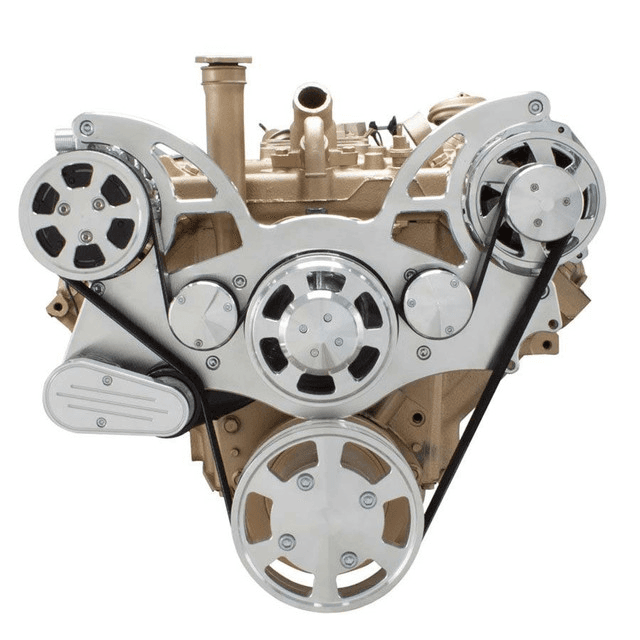

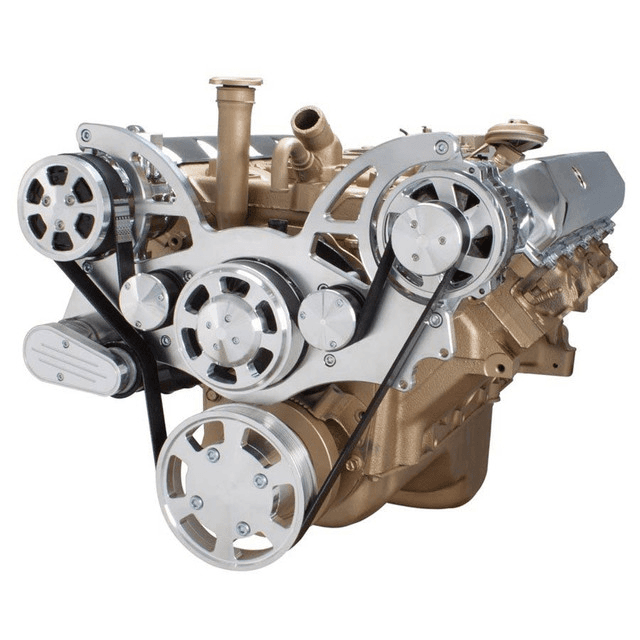

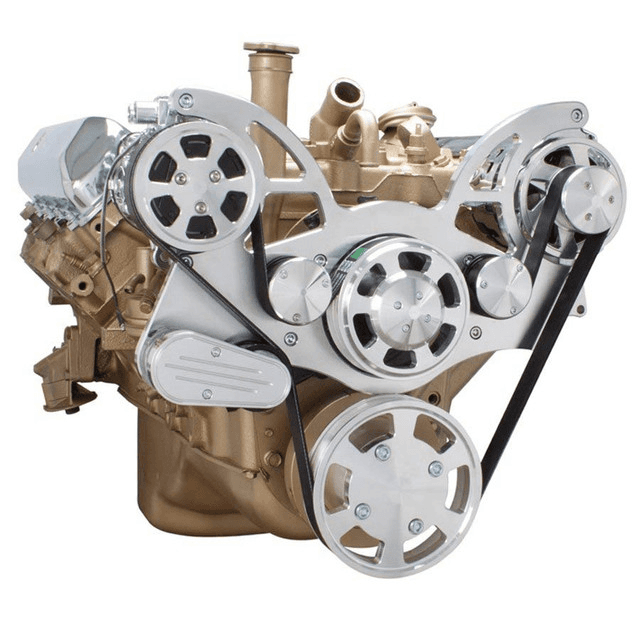

CVF Oldsmobile 350-455 Serpentine System with AC & Alternator For High Flow Water Pump - Polished (All Inclusive)

All Inclusive WRAPTORTM 8 Track Serpentine System for Oldsmobile engines with 140 Amp alternator and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit Oldsmobile 350 Rocket, 403 AND 455 Engines

See the blue product options button to configure your system!

Kit Includes:
140 Amp Chrome 1-Wire CS130 Alternator
Chrome Plated AC Compressor
AC Compressor Clutch Cover - Polished Billet Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover - Polished Billet Aluminum
Crank Pulley - Polished Billet Aluminum
Crank Pulley Spacer - Polished Billet Aluminum
Alternator Pulley & Cover - Polished Billet Aluminum
One Piece Billet Aluminum Bracket - Polished Billet Aluminum
Universal Alternator Fan - Polished Billet Aluminum

Specs:
Finish: Polished or C3 Clear Coat
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard
Engine: Oldsmobile 350-455
AC Included: Yes
Power Steering Included: No
Mounting Position: Mid-Mount

Application Notes:
Upgrade to Power Steering Only Requires Pump, PS Pulley and Belt Purchase.
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Power Steering Lines from pump to reservoir not included
Uses factory 6" water pump (long) or factory 5.6" water pump (Water Pump Not Included)
