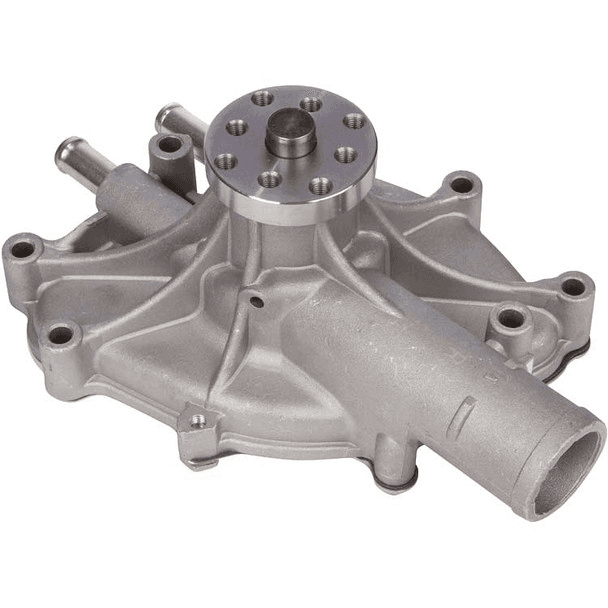

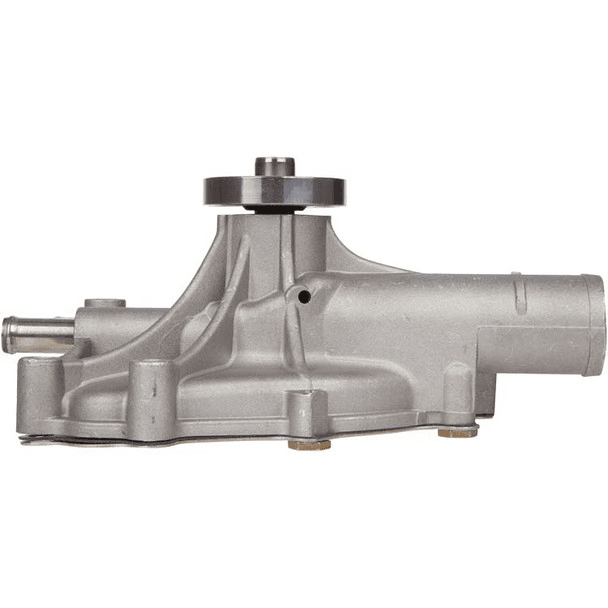

This short water pump is designed to reduce the overall length of your small block engine by 1.5 inches for serpentine conversions & replaces part number M-8501-E351S. It is designed for use with factory alternators, power steering brackets, and CVF racing brackets. Made with aircraft quality 6061-T6 billet aluminum, this pump is designed to provide a perfect fit for your Ford small block engines. It is cut using CNC machining, which provides additional accuracy and a more sturdy construction. This process is also faster and more cost effective, making this short water pump an incredibly affordable option. All these procedures and materials come together to create a 30% smoother Serpentine System.
Diameter: 5.4" Overall Length: 1.4" Grooves: 2 Bolt Pattern: 4 Bolt Bolt Circle: 1.75" Pilot Diameter: 3/4"
Note: Requires Timing Chain Cover for Clockwise Rotation Pump
Features:
Rotation: Clock Wise, Standard
Hub Height: 4-5/16"
Pilot Shaft: 3/4"
1 3/4" Inlet
As Cast: Finish
