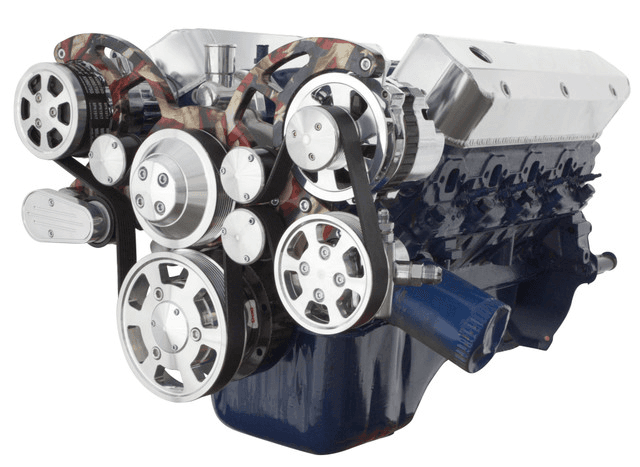

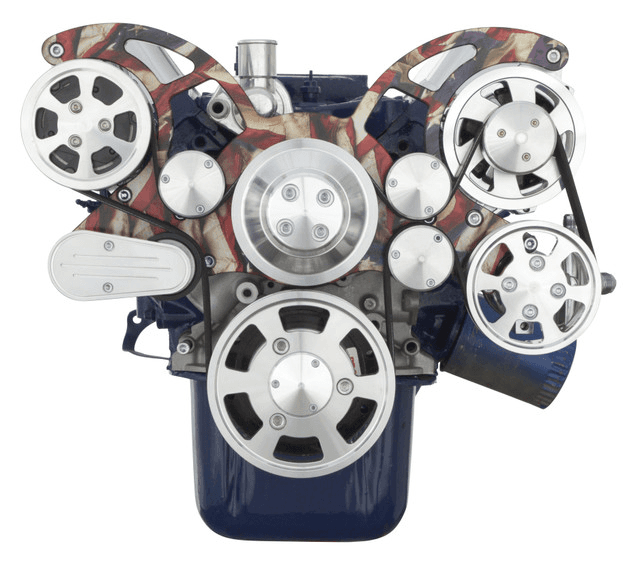

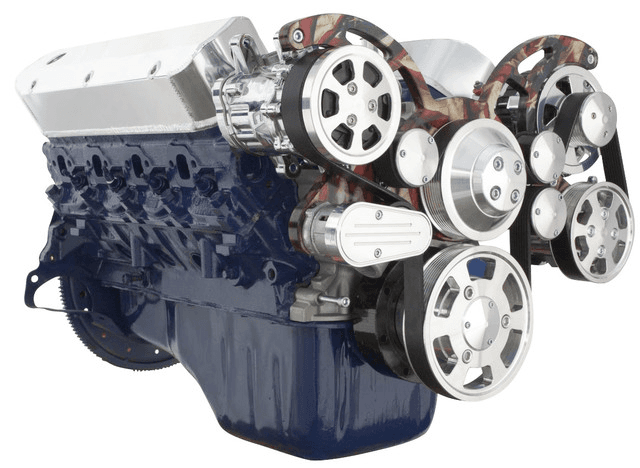

CVF Ford SBF 289, 302 & 351W Serpentine System with AC, Power Steering & Alternator - Patriotic Plating (All Inclusive)

Make your engine stand out from the crowd while supporting our great nation! The main Wraptor plate has been dipped and then coated with CVF's exclusive Ceramic Clear Coat providing a long lasting corrosion resistant finish! No yellowing. No Flaking. Ever.

The WRAPTOR 8 Track Serpentine System for Ford Small Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit Ford SBF 289, 302 & 351W.

See the blue product options button to configure your system!

Kit Includes:
High Flow Aluminum Water Pump
140 Amp 1-Wire CS130 Alternator
AC Compressor
AC Compressor Clutch Cover
Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
Power Steering Pulley
One Piece Billet Aluminum Bracket
Universal Alternator Fan

Specs:
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-Mount
Finish: Patriotic Plating
Belt Type: Serpentine 8 rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard

Applications Notes:
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with factory or aftermarket balancer
Works on Clevor Engines with 302 and 351W, as well as Boss 302 deck height
Power Steering Lines from pump to reservoir not included
Will work with Hydroboost
