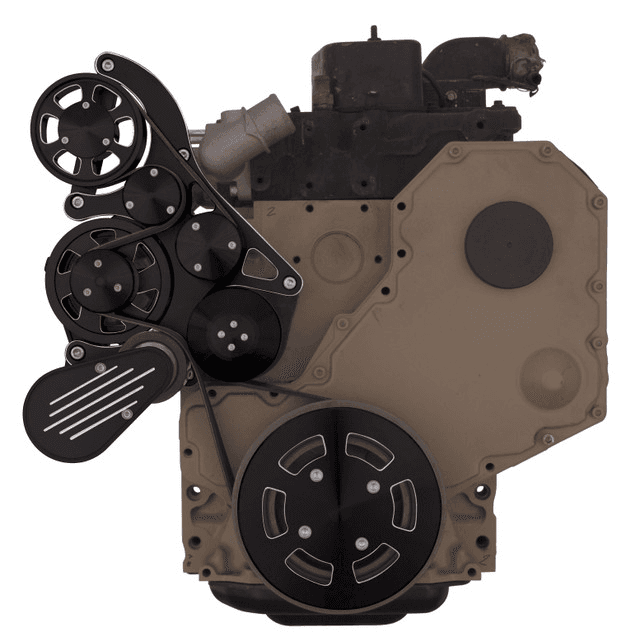

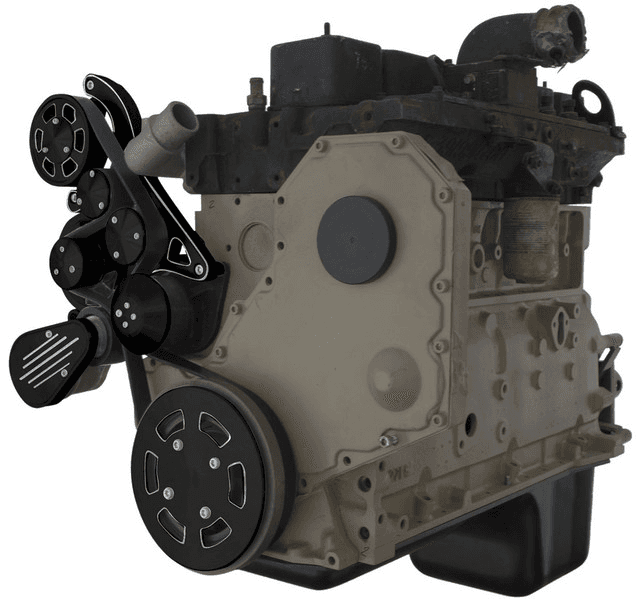

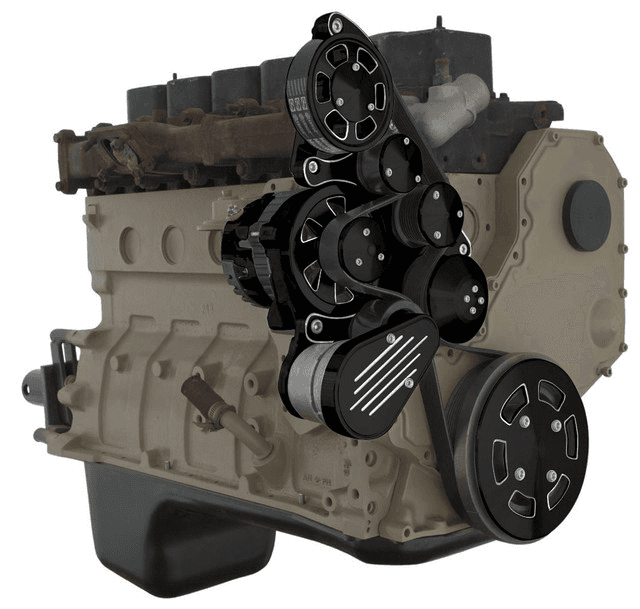

CVF Cummins Serpentine System with Alternator For High Flow Water Pump - Black Diamond (All Inclusive)

All Inclusive WRAPTORTM 8 Track Serpentine System for Cummins Diesel engines with 140 Amp alternator and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch.

Note: This kit will fit Cummins (6BT 12V, 6BT 24V, 4BT 8V, 4BT 16V).

See the blue product options button to configure your system!

Kit Includes:
140 Amp Black Powder Coated 1-Wire CS130 Alternator
AC Delete Pulley - Black Bright Dip Anodized Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Cover - Black Bright Dip Anodized Aluminum
Crank Pulley Cover - Black Bright Dip Anodized Aluminum
Crank Pulley Spacer - Billet Aluminum
Alternator Pulley & Cover - Black Bright Dip Anodized Aluminum
One Piece Bracket - Black Bright Dip Anodized Aluminum
Universal Alternator Fan - Black Bright Dip Anodized Aluminum
Lower Water Neck Inlet-PSS - Black Bright Dip Anodized Aluminum

Specs:
Finish: Black Diamond
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard
Engine: Cummins
AC Included: No
Mounting Position: Mid-Mount

Application Notes:
Compatible with mechanical or electric fan
All 4BT applications will require 6BT balancer, 6BT engine cooling fan pulley bracket when using mechanical fan (Dorman #300-808), and 6Bt thermostat housing (902-3024)
Call if your power steering is in front of your timing cover, or 6.7L Applications

Designed For The Following Applications:
6BT 12V
6BT 24V
4BT 8V
4BT 16V
