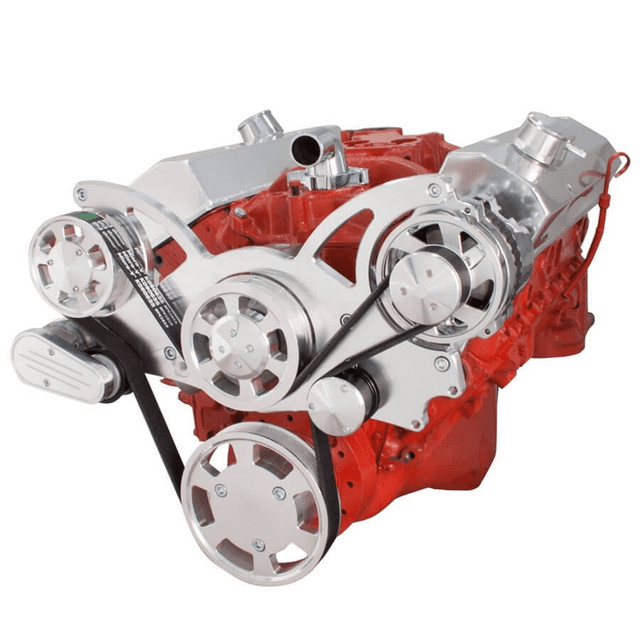

CVF Chevy Small Block Serpentine System with Alternator Only (All Inclusive) - Patriotic Plating

Make your engine stand out from the crowd while supporting our great nation! The main Wraptor plate has been dipped and then coated with CVF's exclusive Ceramic Clear Coat providing a long lasting corrosion resistant finish! No yellowing. No Flaking. Ever.

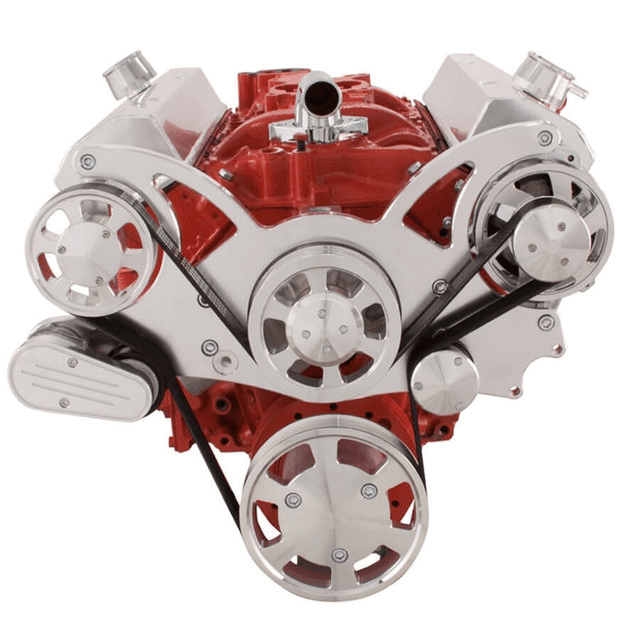

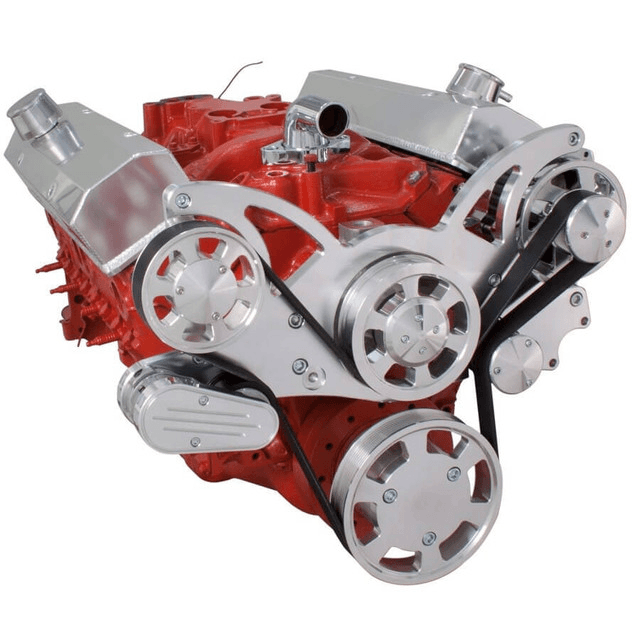

All Inclusive WRAPTOR™ 8 Track Serpentine System for Chevy Small Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit 283, 350, and 400 Small Block Chevy Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
140 Amp Chrome 1-Wire CS130 Alternator
Chrome Plated AC Compressor
AC Compressor Clutch Cover
Chrome Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover
Crank Pulley
Crank Pulley Spacer - Polished Billet Aluminum
Alternator Pulley & Cover
Power Steering Pulley
One Piece Billet Aluminum Bracket with Patriotic Finish
Universal Alternator Fan

Specs:
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-Mount
Finish: Patriotic
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump: Short
Water Pump Rotation: Reverse
Engine Fitment : 283, 350, and 400 Small Block Chevy Engines

Available Options:
Polished, Black, Ceramic Clear Coat, or Black Diamond Pulley Finish
GM Type 2, Hydroboost, or Saginaw Power Steering
140 or 300 AMP Alternator

Application Notes:
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Camel Hump / Fuelie Heads
Power Steering Lines from pump to reservoir sold separately
Reverse Rotation Water Pump (Included)
Compatible with Hydroboost ($275 option)
