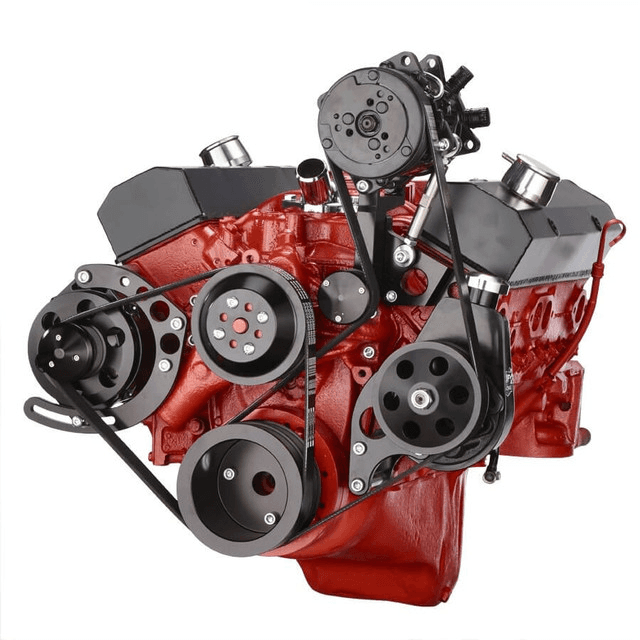

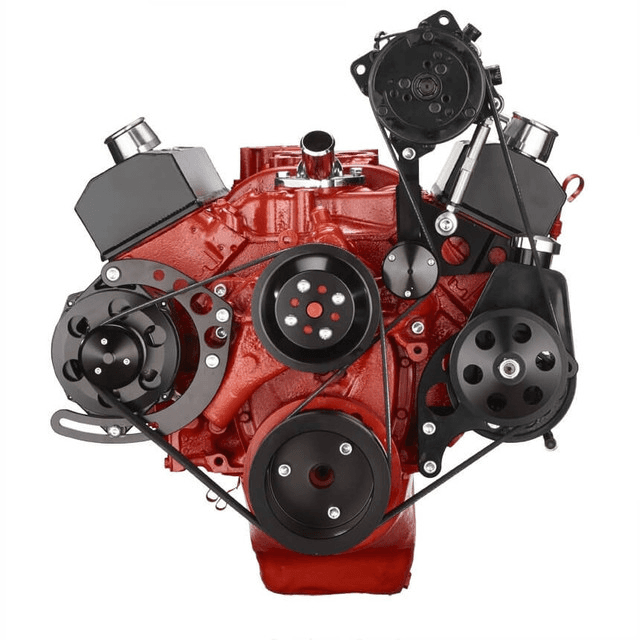

The BEAST 8 Rib Serpentine System for Small Block Chevy engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Finished with our Stealth Black Bright Dip Anodize coating. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor clear tall valve covers) Places the alternator on the passenger side in a mid-mount configuration. Uses standard Chevy long water pump.
Note: This kit will fit 283, 302, 305, 327, 350, and 400 Small Block Chevy Engines. Power Steering Pump, Alternator, AC Compressor & High Flow Water Pump Not Included
See the blue product options button to configure your system!
Kit Includes:
1 8 Rib Water Pump Pulley
2 8 Rib Crank Pulley
1 8 Rib Alternator Pulley
1 8 Rib Idler Pulley
Passenger Side Alternator Bracket
Driver Side Power Steering Bracket
Driver Side AC Compressor Bracket
1 8 Rib Power Steering Pulley (Keyway Style)
ALTFAN - Universal alternator fan
Specs:
Alternator Position: Mid - Passenger
Power Steering: Yes - Saginaw
Air Conditioning: High - Driver
Compressor Type: Sanden 508
Finish: Stealth Black
Belt type: Serpentine 8 Rib
Water Pump Type: Mechanical
Engine Fitment : 283, 302, 305, 327, 350, and 400 Small Block Chevy Engines
Water Pump Style: Long
Water Pump Rotation: Standard
