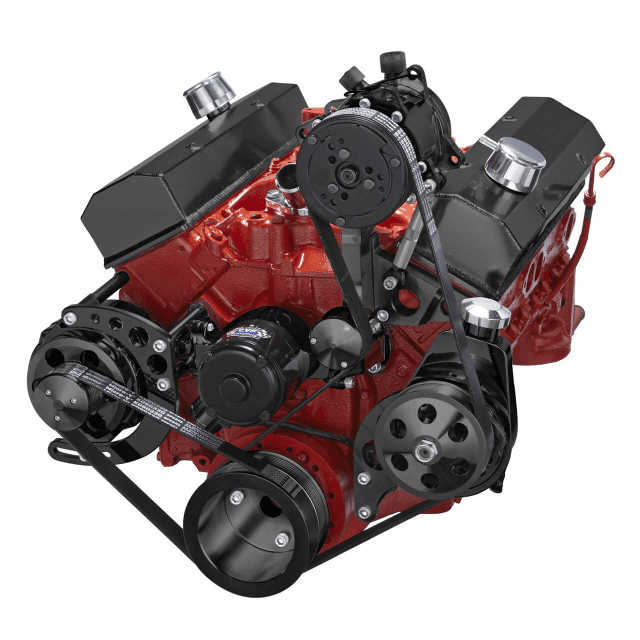

The Beast 8 Rib Serpentine System for Small Block Chevy engines with electric water pump and Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor will clear tall valve covers and fabricated valve covers) Uses Chevy electric water pump.
Note: This kit will fit 283, 302, 305, 327, 350, and 400 Small Block Chevy Engines. Power Steering Pump, Alternator, AC Compressor & High Flow Electric Water Pump Not Included
See the blue product options button to configure your system!
Kit Includes:
2 8 Rib Crank Pulley
1 8 Rib Alternator Pulley
1 8 Rib Idler Pulley
Passenger Side Alternator Bracket
Driver Side Power Steering Bracket
Driver Side AC Compressor Bracket
1 8 Rib Power Steering Pulley (Keyway Style)
ALTFAN - Universal alternator fan
Specs:
Alternator Position: Mid - Passenger
Power Steering: Yes - Saginaw
Air conditioning: High - Driver
Compressor Type: Sanden 508
Finish: Stealth Black
Belt type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump: Long
Water Pump Rotation: Standard
Engine Fitment : 283, 302, 305, 327, 350, and 400 Small Block Chevy Engines
