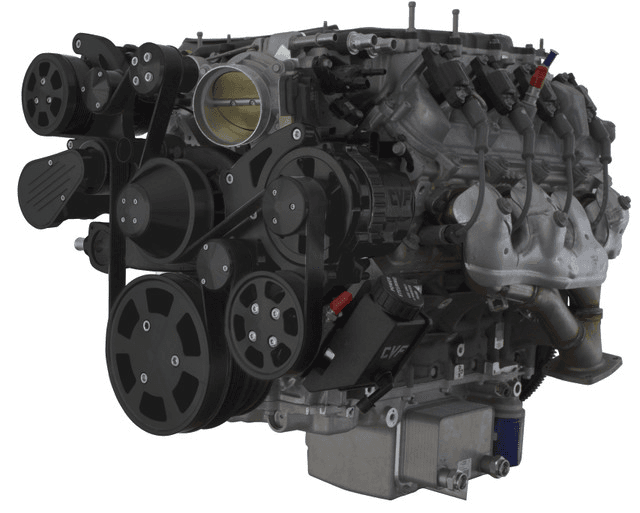

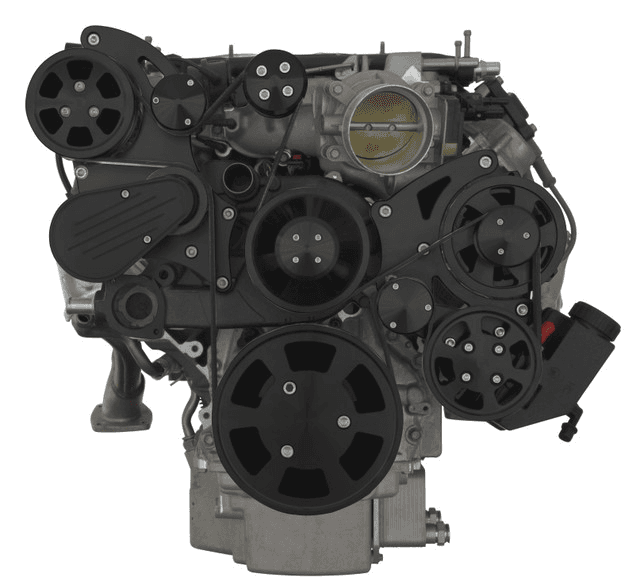

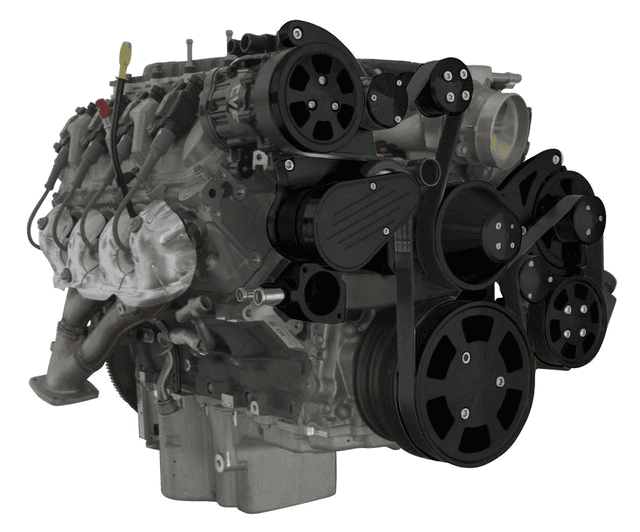

CVF Chevy LT4 Wet Sump Gen V 8-Rib Serpentine System with AC, Power Steering & Alternator - Black (All Inclusive)

The WRAPTOR 8-rib System for Chevy LT4 GEN V wet sump applications with air conditioning, power steering and alternator. Designed around LS1 water pump this unique system features a spring loaded Gates tensioner ensuring proper tension during hard acceleration and deceleration while compensating for belt stretch for optimal performance.

This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.

Note: This kit will fit Chevy LT4 Gen V Supercharged Engines.

See the blue product options button to configure your system!

Kit Includes:
140 Amp 1-Wire CS130 Alternator
Plated Peanut AC Compressor (can be removed in the product options)
AC Compressor Clutch Cover - Billet Aluminum (can be removed in the product options)
Plated Aluminum GM Type II Power Steering Pump (can be removed in the product options)
Remote Mount Reservoir with Bracket - Billet Aluminum (can be removed in the product options)
Gates Premium Green Strip 8 Rib Belt
Alternator Pulley & Cover - Billet Aluminum
Power Steering Pulley - Billet Aluminum (can be removed in the product options)
Two Piece Billet Aluminum Bracket - Billet Aluminum
Universal Alternator Fan - Billet Aluminum
High Flow LS Water Pump - As Cast

Specs:
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-Mount
Supercharger: Works with OEM LT4 Supercharger (PN: 12713783, 12689364) - Supercharger not included
Finish: Stealth Black
Belt Drive: Shared 8 rib
Water Pump Type: Mechanical
Water Pump: LS1
Water Pump Rotation: Reverse

Compatible With:
Cadillac C15-V - Present
Camaro ZL1 2017 - Present

Application Notes:
Requires OEM Wet Sump Engine (Cadillac CT5-V/Escalade-V/Camaro ZL1)
Requires OEM Crank Pulley (Cadillac CT5-V/Escalade-V/Camaro ZL1))
3.2:1 Supercharger Drive Ratio (8" Crank, 2.5" Supercharger Pulley)
2.4" Supercharger Pulley Available
Hub Adapter for quick change supercharger pulley included
Utilizes LS2 Water Pump (Included); Requires use of LS2 Thermostat (Not Included)
Compatible with Hydroboost (Pump Upgrade available)
Not Compatible with LT5 Engines
Requires Remote Breather/Catch Can/Air Oil Separator for PCV System (Not Included)
