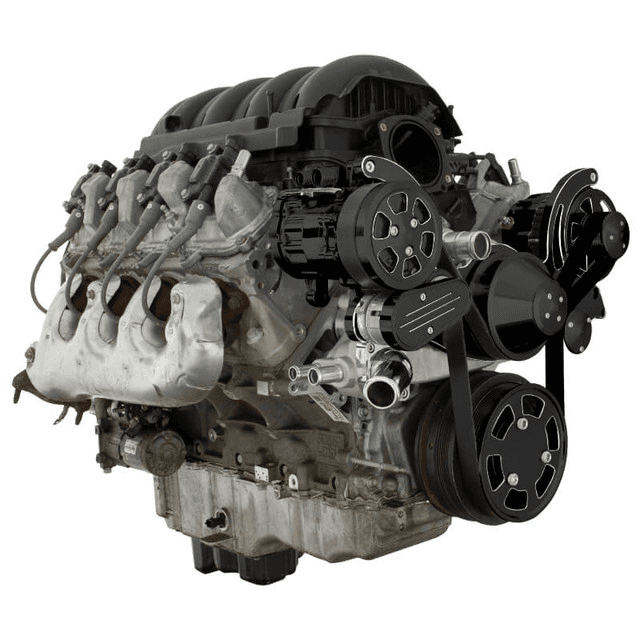

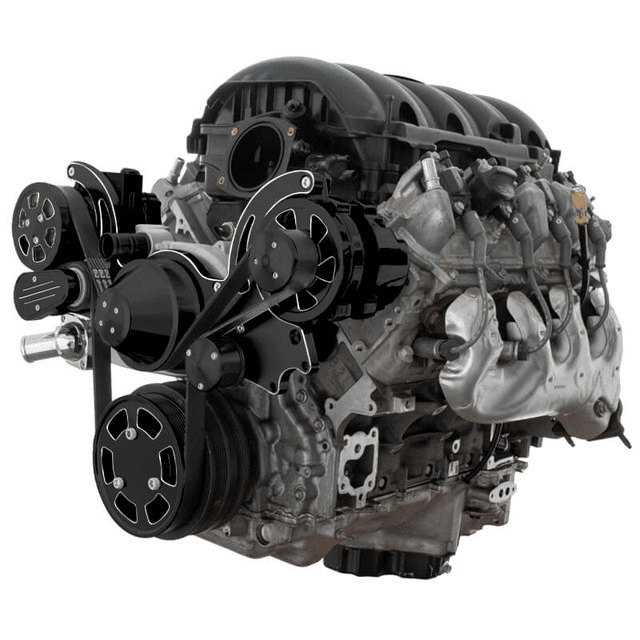

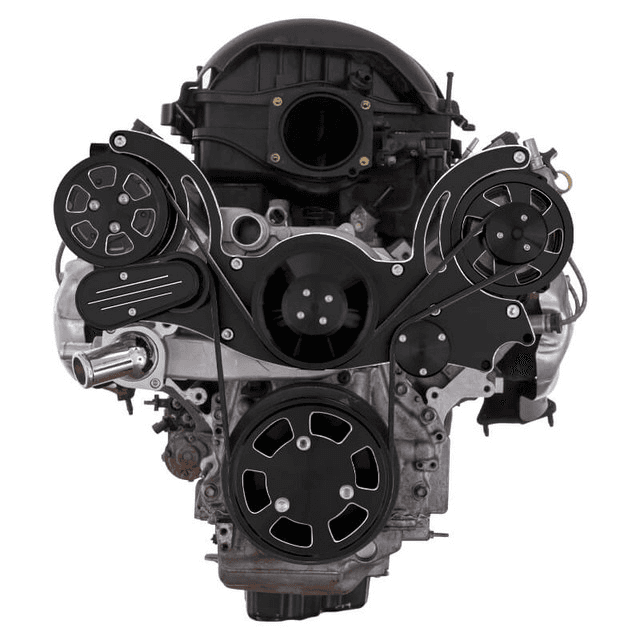

CVF Chevy LT1 Gen V Serpentine System with AC & Alternator - Black Diamond (All Inclusive)

All Inclusive WRAPTOR 8 Track Serpentine System for Chevy LT1 engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit Chevy LT1 Gen V Engines.

See the blue product options button to configure your system!

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
140 Amp Black 1-Wire CS130 Alternator
Black Plated AC Compressor
AC Compressor Clutch Cover
Remote Mount Reservoir with Bracket
Gates Premium Green Strip 8 Rib Belt
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
One Piece Billet Aluminum Bracket
Water Pump Bracket Adaptor
Universal Alternator Fan

Specs:
Power steering included: No
AC included: Yes
Mounting position: Mid-mount
Finish: Black Diamond
Belt type: Serpentine 8 rib
Water pump type: Mechanical
Water pump: LS1
Water pump rotation: Reverse

Application Notes:
Works with Chevy LT1 engines from 2013+
Kit requires balancer from L83 or L86 LT1 trucks
Compatible with Hydroboost ($275 option)
L83/L86 Engines using a LT4 Supercharger from Camaro or CTS-V require the use of LT4 OEM Balancer (Sold Separately)
